V-Rail Linear Rail - V-Guide VR1-048 for Size 1 V-Wheels - Length: 48" Carbon Steel

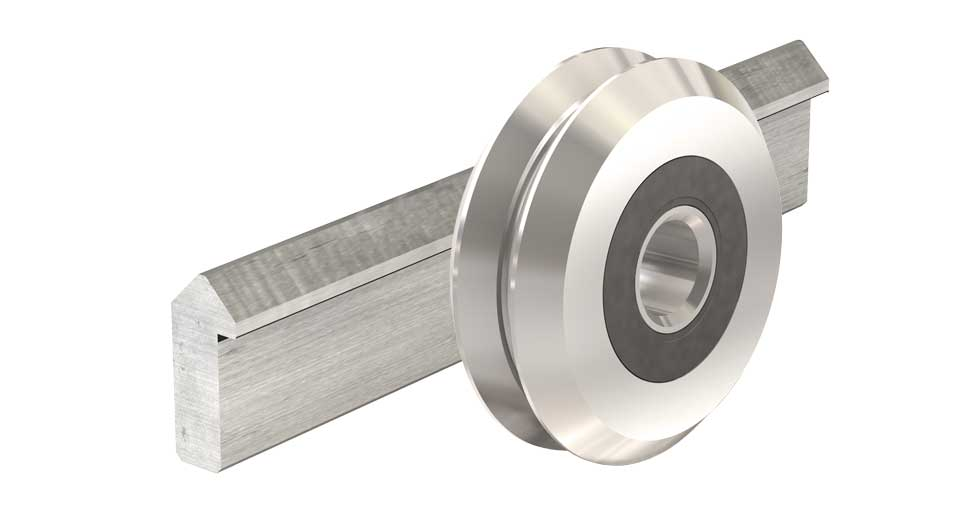

V-Rail Linear Rail, 48" long, matching Size 1 V-wheels (these are 20mm diameter roller bearings sold separately). This undrilled solid v-groove rail is part of PBC Linear’s V-Guide series. Constructed from induction-hardened 1045 carbon steel, it is ground and polished for a high-quality surface that minimizes friction and wear. Simple installation with a shoulder for precise mounting. The dual-row angular contact design enhances load capacity for reliable high-speed performance.

• Linear Rail only - 1045 Carbon Steel
• Rail Fits V-Guide Size 1 V-Wheels of 20mm diameter
• Length: 48"

• Not Drilled - See Configuration CAD and Quote to request this

• Compatible with v-wheel part numbers VW1, VWS1, VWSS1

• Precision dual row angular contact design
• Rails are induction hardened, ground, and polished
• Shoulder for simple mounting and alignment
• Operating temperature range from -20°C to 80°C
  (-4°F to 176°F)
