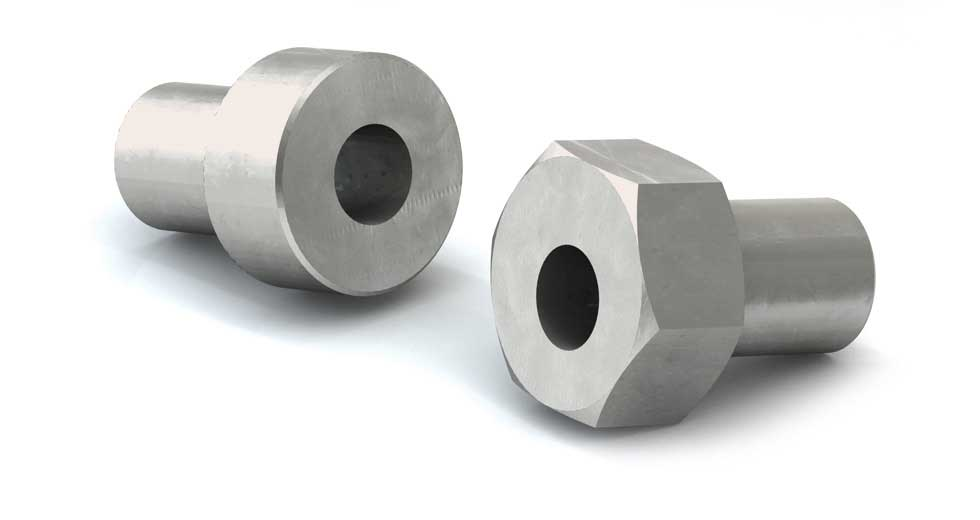

V-Wheel Bushing - Concentric Fixed VB1 V-Guide Size 1

  • Fit: Concentric bore
  • Head: Round head
  • Material: 303 stainless steel
  • Fits Wheel Size: Size 1 — 20 mm
  • Fastener Series: Inch
  • Max Temperature: 80 °C (176 °F)
V-Wheel bushing, concentric fixed, for V-Guide Size 1 wheels. Engineered to handle radial loads effectively. Made of 303 stainless steel for superior corrosion resistance and machinability, ensuring longevity in demanding environments.
$5.68
This quantity could qualify for bulk pricing.
Configure Custom Features
Contact
Resources
View Catalog
Dimensions
Media
Charts
Resources
WidthHeightApprox. Weight
0.55 in0.44 in0.03 lbs

*For complete dimensions see tab
