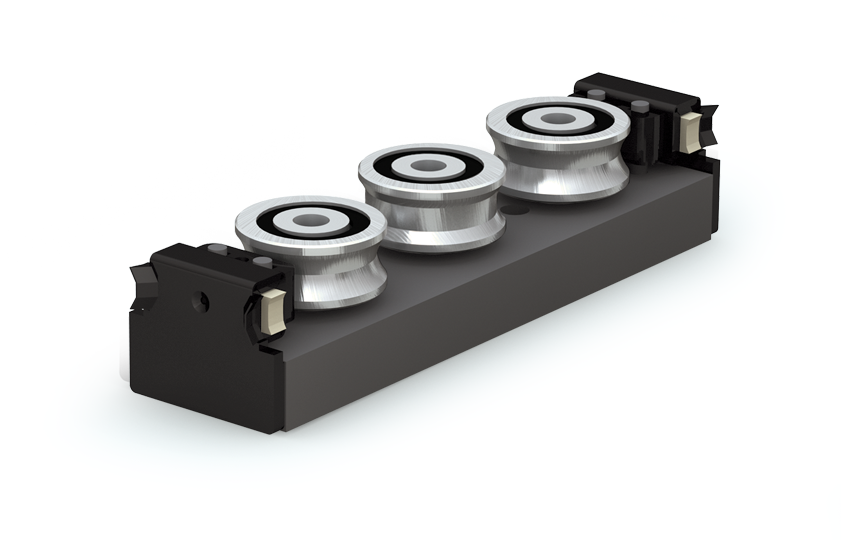

Linear Guide Rotating Carriage – Steel Rail Plus SRP43C-3AR 43mm Wide w/ 3 Adjustable Preloaded Rollers
Rotating cam roller linear guide carriage for 43mm wide Steel Rail Plus SRP43R linear rails with 3 roller bearings that can be adjusted for pre-load. Rotating carriages are equipped with two roller types: one with two contact points and one that only contacts the highest point on the guide rail. Rollers with two contact points fully constrain both axial & radial directions while rollers with one contact point constrain movement radially while allowing movement axially. Use this carriage in parallel with the same sized floating carriage (SRP43C-3AF) to overcome misalignment and height offsets in parallel rail applications.
- Available for order – 6 week lead time
- Carriage only – width 43mm
- High Strength Aluminum Carriage, Steel Rollers
- Adjustable Preloaded Rollers
- Compatible with rail part number SRP43R-XXXXC
- Carriage configurations with 4, 5, and 6 rollers are available via the configurator
- Oil-soaked felt wipers keep the rails clean and lubricated
- Built-in scraper blade eliminates debris and contaminants from the rail surface
- Rotating carriages used in conjunction with floating carriages (SRP43C-3AF) overcome misalignment and height offsets in parallel rails
