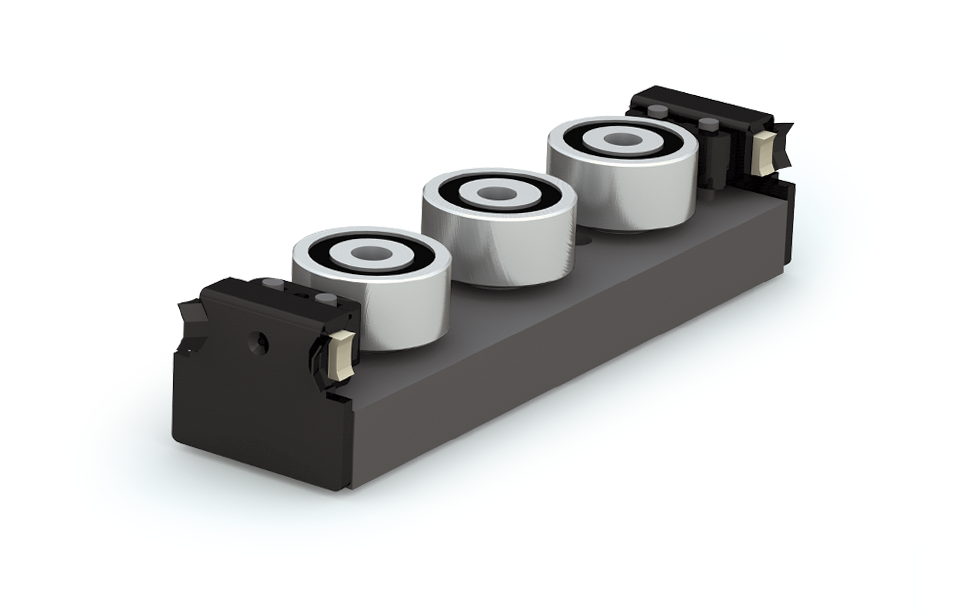

Linear Guide Floating Carriage – Steel Rail Plus SRP28C-3AF 28mm Width / 3 Adjustable Preloaded Rollers
Floating cam roller linear guide carriage for 28mm wide Steel Rail Plus SRP28R linear rails with 3 roller bearings that can be adjusted for pre-load. Floating carriages are equipped with rollers that only contacts the highest point of the guide rail providing unrestricted movement axially and constraining movement radially. Use this carriage in parallel with the same sized guiding carriage (SRP28C-3AG) to overcome misalignment in parallel rail applications.
- Carriage only – width 28mm
- Adjustable Preloaded Floating Rollers
- Compatible with rail part number SRP28R
- High Strength Aluminum Carriage / Steel Cam Rollers
- Carriage configurations with 4, 5, and 6 rollers available in the configurator
- Oil-soaked felt wipers keep the rails clean and lubricated
- Built-in scraper blade eliminates debris and contaminants from the rail surface
- Floating carriages used in conjunction with guiding carriages (SRP28C-3AG) overcome misalignment in parallel rails
- Floating carriages used in conjunction with rotating carriages (SRP28C-3AR available for order in the configurator) overcome misalignment and angle errors in mounting surfaces of parallel rails
Customers also purchased
Floating cam roller linear guide carriage for 28 mm wide Steel Rail Plus SRP28R linear rails with 3 roller bearings that can be adjusted for pre-load. Guiding carriages are equipped with rollers that have two contact points on the guide rail providing full constraint in both axial and radial directions...
$189.90

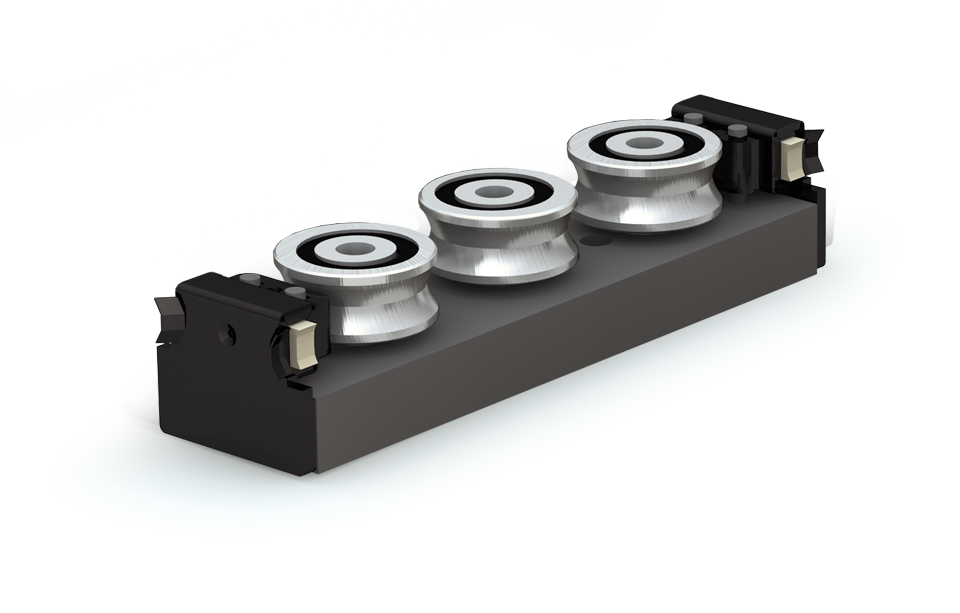

Rotating cam roller linear guide carriage for 28mm wide Steel Rail Plus SRP28R linear rails with 3 roller bearings that can be adjusted for pre-load. Rotating carriages are equipped with two roller types: one with two contact points and one that only contacts the highest point on the guide rail...
