Low Profile Linear Rail - Redi-Rail RRL34R-039.370-R0 Hardened Steel Raceways - Length: 1000mm Width: 34mm

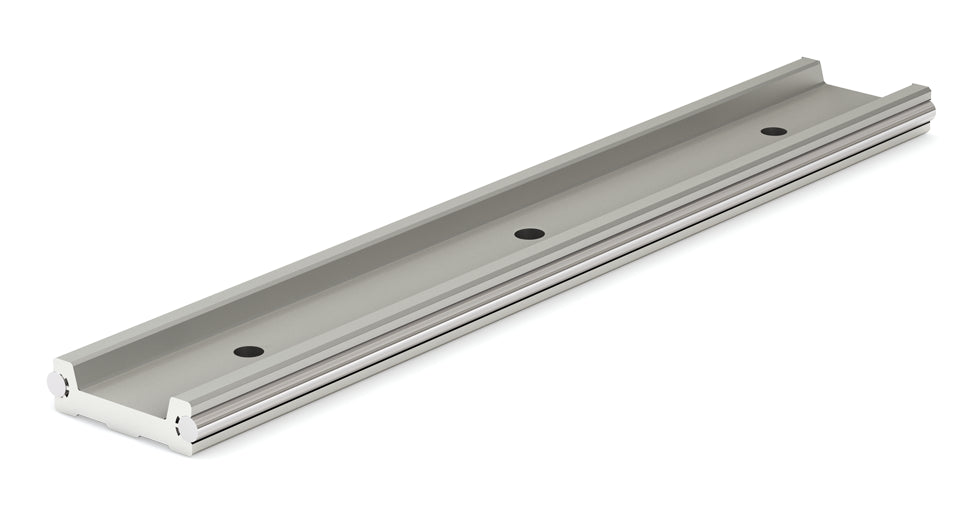

Low-profile linear guide rail, 1000mm long × 34mm wide, with hardened steel rod raceways, from the Redi-Rail RRL34 series. Its lightweight, clear-anodized aluminum body features a shallow U-shaped profile with two outward-facing RC60 hardened steel rod raceways for smooth, precise linear motion and enhanced wear resistance. The rail is designed for use with RRL34C-A2 carriages featuring four sealed, double-row hardened steel gothic-arch cam rollers. The rail is pre-drilled for mounting with button head cap screws (BHCS), sold separately. Together, the rail and carriage form an ultra-low-profile linear guide system just 19mm high, ideal for compact automation, medical devices, and tight spaces.

  • Rail only; compatible Redi-Rail carriage sold separately
  • Hardened RC60 steel rod raceways for durability and wear resistance
  • Rail width: 34mm | Length: 1000mm | Height: 10mm
  • Compatible carriage: RRL34C-A2 with hardened steel cam rollers
  • Lightweight clear-anodized aluminum rail body
  • Two outward-facing hardened steel rod raceways
  • Ultra-low assembled rail-and-carriage height: 19mm
  • Pre-drilled mounting holes centered along rail length unless Y is specified
  • Mounting holes accept button head cap screws (BHCS), sold separately
  • Ideal for compact automation, medical devices, and tight spaces

Available Lengths:

3D Models

TypeFileFormatLink
cadRRL34R-039.x_tSolidWorks >=2006Download
$126.20
This quantity could qualify for bulk pricing.
Configure Custom Features

Max Available Length: 3048 mm

Dimensions
Videos
Resources

Product Dimensions

Approx. Weightwidthlengthheight
1.97 lbs1.45 in39.37 in0.4 in
Linear Guides
Linear Guides
Cam Roller Technology Overview
Cam Roller Technology Overview
Motion Control in Washdown Applications
Motion Control in Washdown Applications
