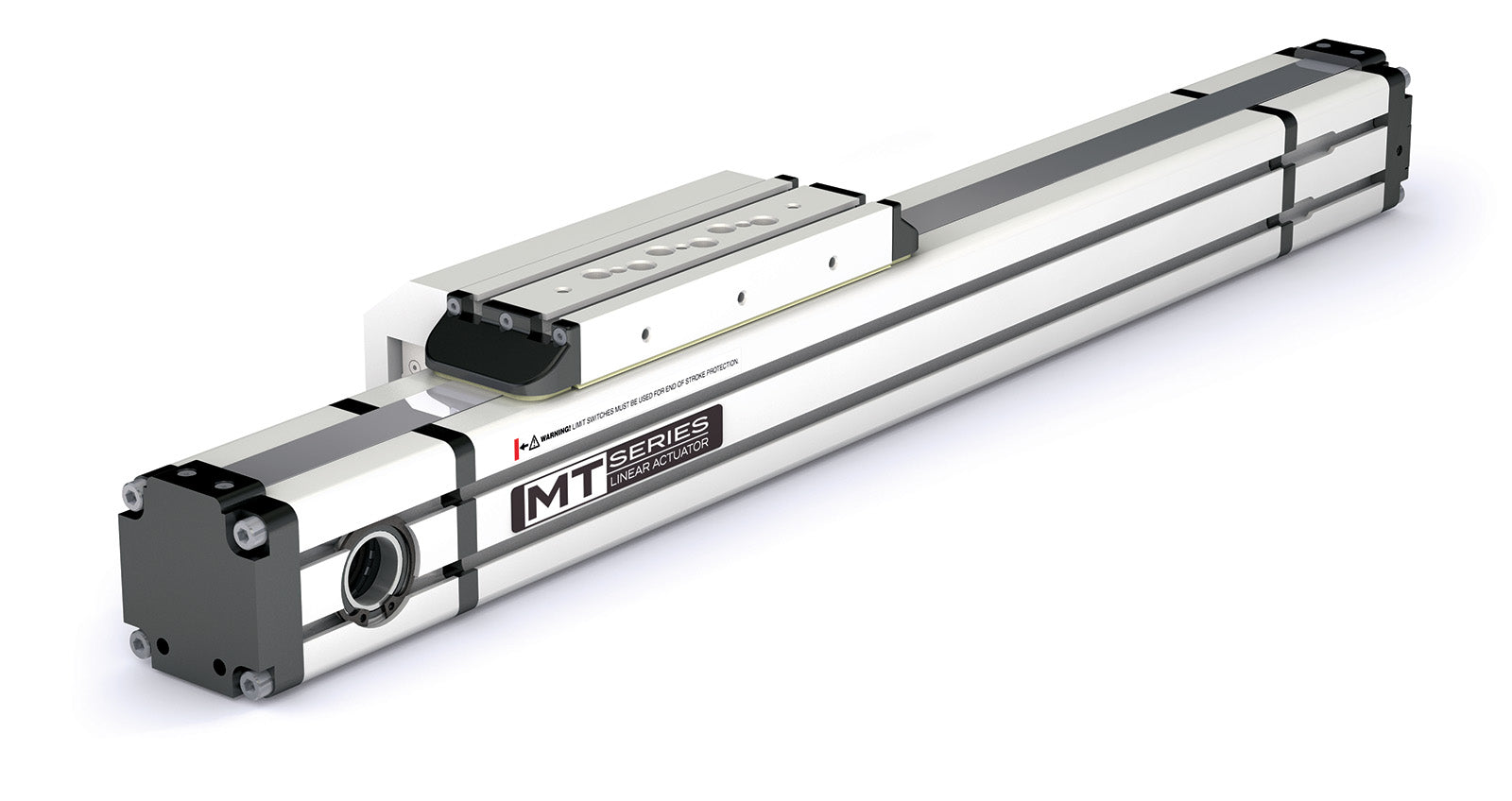

Belt Driven Linear Actuator MTE080D-1000-16F1L2 Length: 1000mm Cross Section: 80x80mm

Belt-driven linear actuator with a length of 1,000mm and a compact profile of 80mm x 80mm. Equipped with a female shaft with a diameter of 16mm, the MTE has two ball guides – one internal and one external with the external guide on the left.
•    Belt-driven linear actuator
•    Length: 1,000 mm
•    Compact profile: 80 mm x 80 mm
•    Left external rail mount
•    Equipped with a female shaft
•    Shaft diameter: 16 mm

PDF View Catalog

3D Models

TypeFileFormatLink
3dMTE080D-1000-16F1L2.stephtmlView
cadMTE080D-1000-16F1L2.x_tSolidWorks >=2006Download

Motor Mount Kits

Use the configurator to select compatible motor mount kits.
Motor Mount Kits
$4,114.96
Configure Custom Features
Ask about this product
Chat Now
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightwidthlengthheight
36.31013458 lbs80 mm1000 mm80 mm
