Low Profile Linear Carriage - Mini-Rail LPM80C Carriage for Rail Width: 80mm

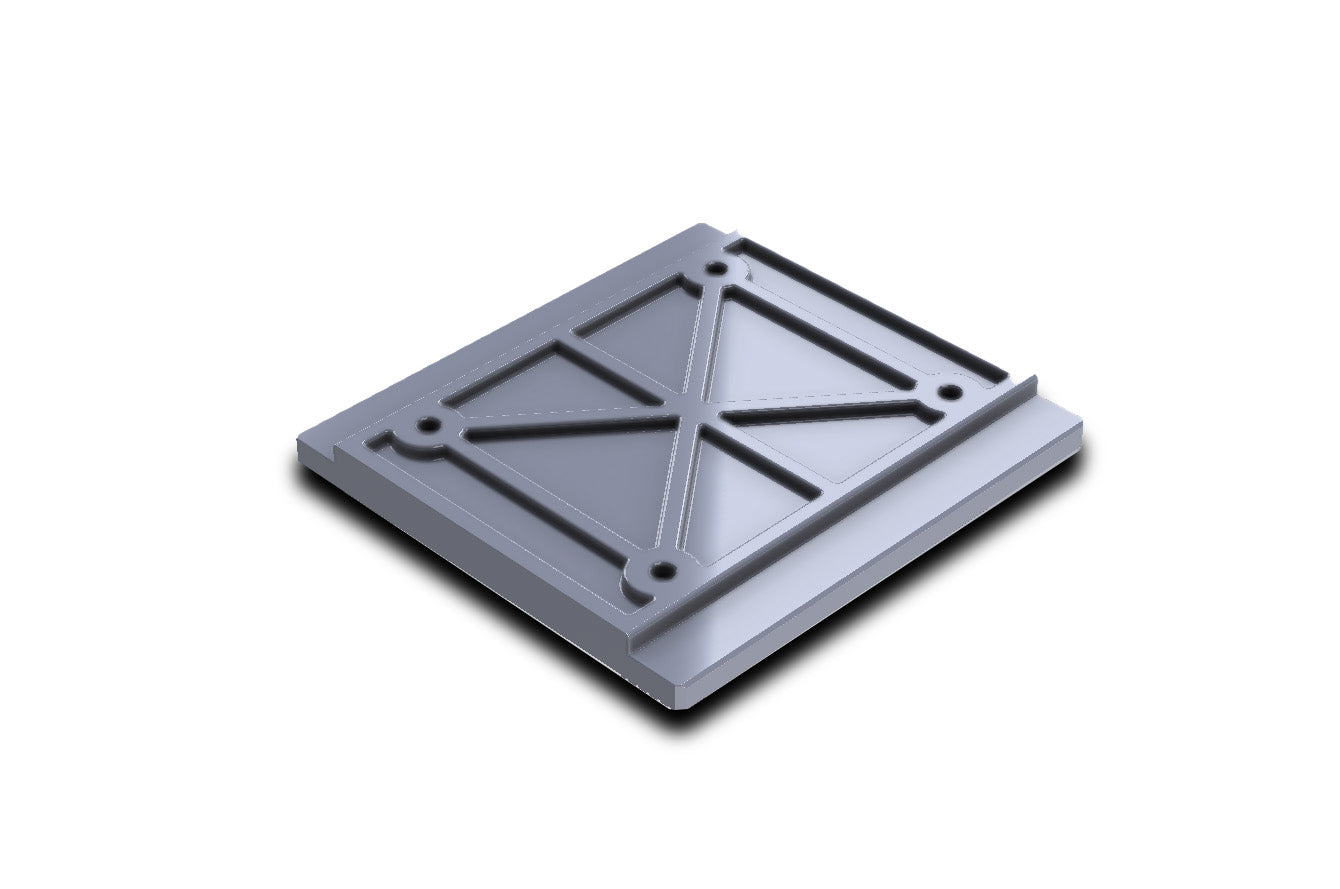

Low Profile Mini-Rail Linear Carriage LPM80C, a 20mm molded polymer slider carriage with stainless steel threaded inserts for use with LPM80 series rails. High load capacity with ≤0.5mm running clearance.

  • Compatible rails: LPM80R-0300, LPM80R-0500, LPM80R-1000, LPM80R-1500, LPM80R-2000
  • Carriage length: 20mm | For rail width: 80mm
  • Molded polymer with stainless steel threaded inserts
  • Resistant to contaminants, dyes, and weak acids
  • Standard sizing compatible with other linear guides
  • ≤0.5 mm running clearance
  • Carriage only — rail sold separately

PDF View Catalog

3D Models

TypeFileFormatLink
3dLPM80C.x_tSolidWorks >=2006View
cadLPM80C.stepSTEP AP214Download
$16.46
Configure Custom Length

Max Length: 3,600 mm

Ask about this product
Chat Now
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightwidthlengthheight
0.0712 lbs3.1496 in0.7874 in0.4724 in
