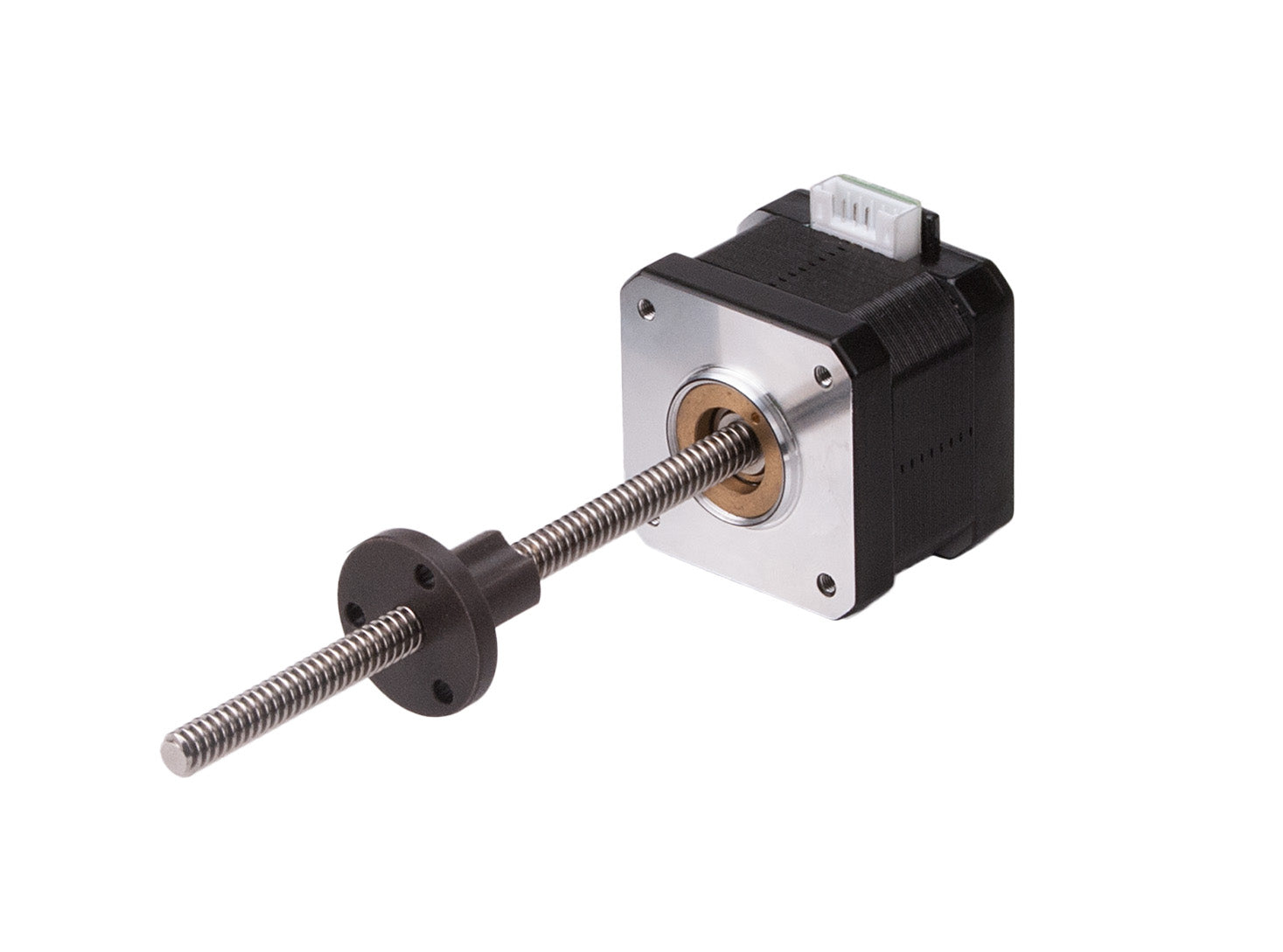

Lead Screw Linear Actuator LE174S-T0804-75-AR1-0-150 External Nut NEMA 17 Motor, Length: 75mm
Lead screw linear actuator 75mm long, with an 8mm screw diameter, 4mm lead, NEMA 17 stepper motor, and external round standard nut. Motor rotation turns the screw and forces the restrained nut to travel axially in a straight line. The 4mm lead balances torque, speed, thrust, and positioning control, while the external nut allows the moving component to mount directly to it. Rated current: 1.50A.
- Lead screw linear actuator with external round standard nut
- Length: 75mm
- Screw diameter: 8mm
- Lead: 4mm per revolution
- Motor: NEMA 17 stepper motor
- Rated current: 1.50A
- Motor rotates the screw, forcing the restrained nut to travel axially in a straight line
- External nut allows the moving component to mount directly to it
- 4mm lead balances linear speed, thrust, and positioning control
- External guidance supports the load and prevents the nut from rotating
- Suitable for precise, repeatable linear positioning
