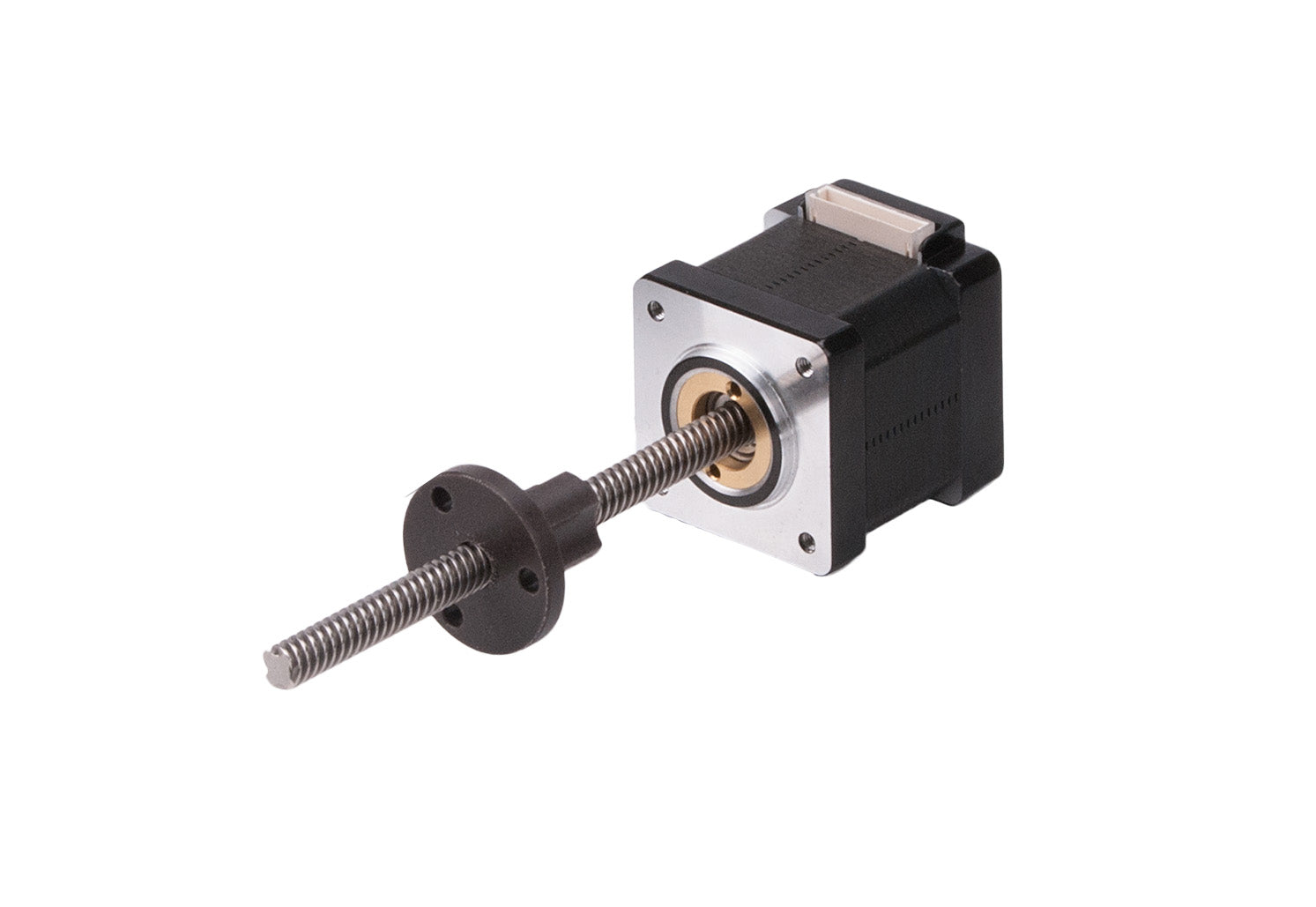

Lead Screw Linear Actuator LE141S-E06063-200-AR1-0-100 External Nut NEMA 14 Motor, Length: 200mm
Lead screw linear actuator 200mm long, with a 0.25in (6.35mm) screw diameter, 1/4in lead, NEMA 14 stepper motor, and external round standard nut. Motor rotation turns the screw and forces the restrained nut to travel axially in a straight line. The 1/4in lead provides faster linear travel per revolution, while the external nut allows the moving component to mount directly to it. Rated current: 1.00A.
- Lead screw linear actuator with external round standard nut
- Length: 200mm
- Screw diameter: 0.25in (6.35mm)
- Lead: 1/4in per revolution
- Motor: NEMA 14 stepper motor
- Rated current: 1.00A
- Motor rotates the screw, forcing the restrained nut to travel axially in a straight line
- External nut allows the moving component to mount directly to it
- 1/4in lead supports faster linear travel
- External guidance supports the load and prevents the nut from rotating
- Suitable for precise, repeatable linear positioning
