Low Profile Linear Rail - Redi-Rail RRL34R-019.685-R1 Stainless Steel Raceways Length: 500mm Width: 34mm

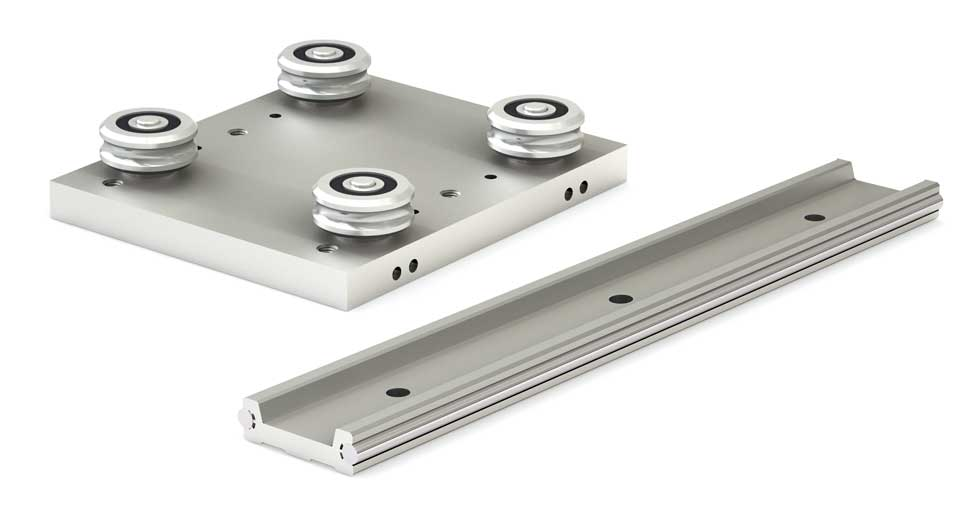

Low-profile linear guide rail with stainless steel rod raceways, 500mm long × 34mm wide, from the Redi-Rail RRL34 series. Its lightweight, clear-anodized aluminum body features a shallow U-shaped profile with two outward-facing 440 stainless steel rod raceways for smooth, precise linear motion and enhanced corrosion resistance. The rail is pre-drilled for mounting with button head cap screws (BHCS), sold separately. Designed for use with RRL34C-A3-019A-C0 carriages featuring four sealed, double-row stainless steel gothic-arch cam rollers, the rail and carriage form an ultra-low-profile linear guide system just 19mm high, ideal for compact automation, medical devices, and tight spaces.

  • Rail only; compatible Redi-Rail carriage sold separately
  • Compatible carriage: RRL34C-A3-019A-C0 with stainless steel cam rollers
  • Stainless steel rod raceways for enhanced corrosion resistance
  • Rail width: 34mm | Length: 500mm | Height: 10mm
  • Lightweight clear-anodized aluminum rail body
  • Two outward-facing 440 stainless steel rod raceways
  • Ultra-low assembled rail-and-carriage height: 19mm
  • Pre-drilled mounting holes centered along rail length unless Y is specified
  • Mounting holes accept button head cap screws (BHCS), sold separately
  • Ideal for compact automation, medical devices, and tight spaces

3D Models

TypeFileFormatLink
3dRRL34R-019.htmlhtmlView
cadRRL34R-019.x_tSolidWorks >=2006Download
$113.47
This quantity could qualify for bulk pricing.
Configure Custom Features
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightwidthlengthheight
0.98 lbs1.45 in19.68 in0.4 in
