Torx Fastener Screw for 43mm Steel Rail Linear Guide Mounting 6101552 Thin-Head
Thin-head Torx fastener screw for 43mm-wide linear guide systems, designed for mounting counterbored steel rails in the Steel Rail Standard and Steel Rail Plus series. A Torx fastener uses a six-point star-shaped recess to transfer torque efficiently while reducing cam-out and driver slipping. The low-profile head sits flush within the rail to provide secure clamping without interfering with carriage travel in tight-clearance applications. These fasteners are M8 × 1.25 with a 16mm head diameter and are tightened with a T45 Torx driver.
- Thin-head Torx fastener screw for 43mm-wide linear guide systems
- M8 × 1.25 thread with a 16mm head diameter
- Tighten with a T45 Torx driver
- Low-profile head sits flush within counterbored Steel Rail assemblies
- Compatible with SRS43R-XXXXC and SRP43R-XXXXC rail part numbers
- 80mm rail hole spacing determines the required screw quantity
Customers also purchased
Linear Rail, 43 mm wide and 250 mm long, from the Steel Rail Plus series of linear guides, features a U-shaped polished, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes and is compatible with SRP43 carriages. Linear Rail Only Compatible with carriage part..
$119.93
Linear Rail, 43mm wide and 500mm long, from the Steel Rail Plus series of linear guides, features a U-shaped polished, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes and is compatible with SRP43 carriages. Linear Rail Only Compatible with carriage part numbers SRP43C..
$239.85
Linear Rail, 43 mm wide and 1,000 mm long, from the Steel Rail Plus series of linear guides, features a U-shaped polished, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes and is compatible with SRP43 carriages. Linear Rail Only Compatible with carriage part..
$479.70

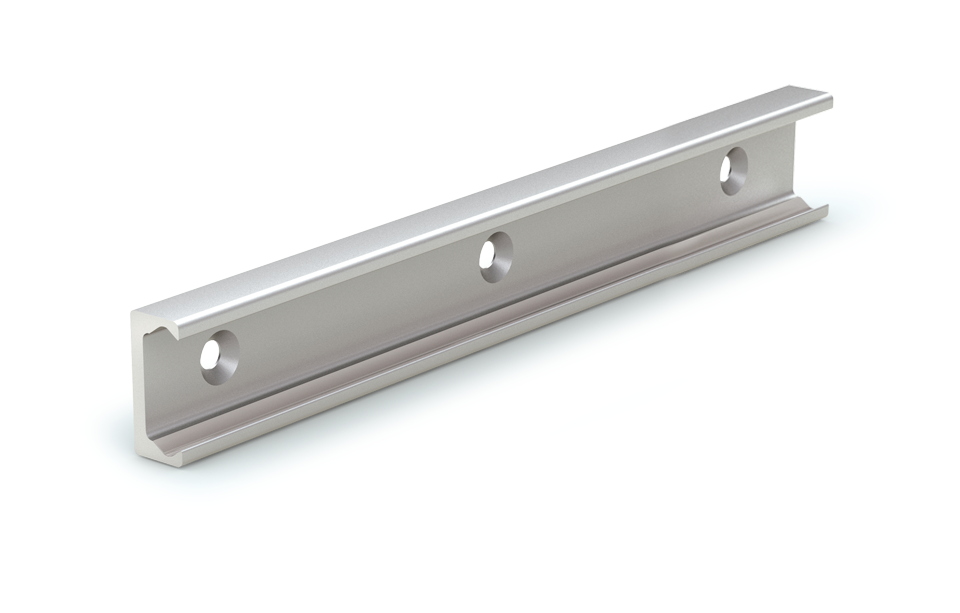

Steel linear guide rail measuring 43mm wide and 250mm long for the Steel Rail Standard series, uses a U-shaped ground steel profile with pre-drilled counterbore mounting holes and is designed for use with SRS43C cam roller carriages in compact automation, robotics, and other linear motion systems. Compatible M8 × 1.25..
$92.88
Steel linear guide rail measuring 43mm wide and 500mm long for the Steel Rail Standard series, uses a U-shaped ground steel profile with pre-drilled counterbore mounting holes and is designed for use with SRS43C cam roller carriages in compact automation, robotics, and other linear motion systems. Compatible M8 × 1.25..
$185.75
Steel linear guide rail measuring 43mm wide and 1,000mm long for the Steel Rail Standard series, uses a U-shaped ground steel profile with pre-drilled counterbore mounting holes and is designed for use with SRS43C cam roller carriages in compact automation, robotics, and other linear motion systems. Compatible M8 × 1.25..
$371.50

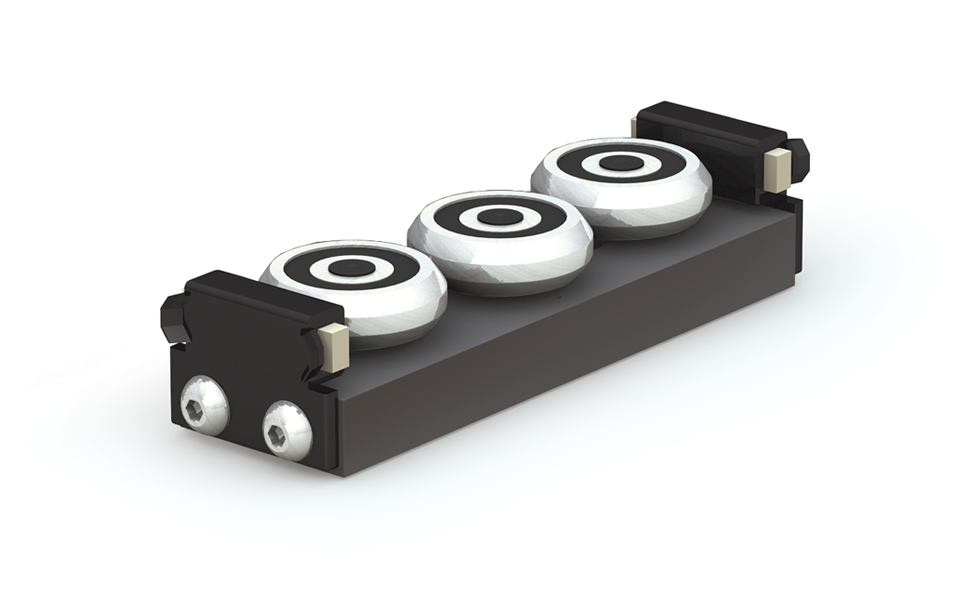

Linear Guide Carriage – Steel Rail Standard SRS43C-3AS, 43mm Width / 3 Adjustable Preloaded Rollers
