Torx Fastener Screw for 35mm Steel Rail Linear Guide Mounting 6101550 Thin-Head
Thin-head Torx fastener screw for 35mm-wide linear guide systems, used to mount counterbored steel rails in the Steel Rail Standard and Steel Rail Plus series, featuring a low-profile head that sits flush within the rail to ensure secure clamping without interfering with carriage travel in tight-clearance applications. These fasteners are M8 × 1.25 with a 16 mm head diameter and include a six-point, star-shaped recess for high torque transfer with minimal slipping, making them well suited for fastening through counterbored rail holes into threaded mounting surfaces using a hand or powered screwdriver with a Torx drive.
- Thin head torx fastener screw only - Tighten with a T45 Torx driver
- Compatible with rail part numbers SRS35R-XXXXC
- 80mm hole spacing on SRS and SRP rails determines needed screw quantity
Customers also purchased

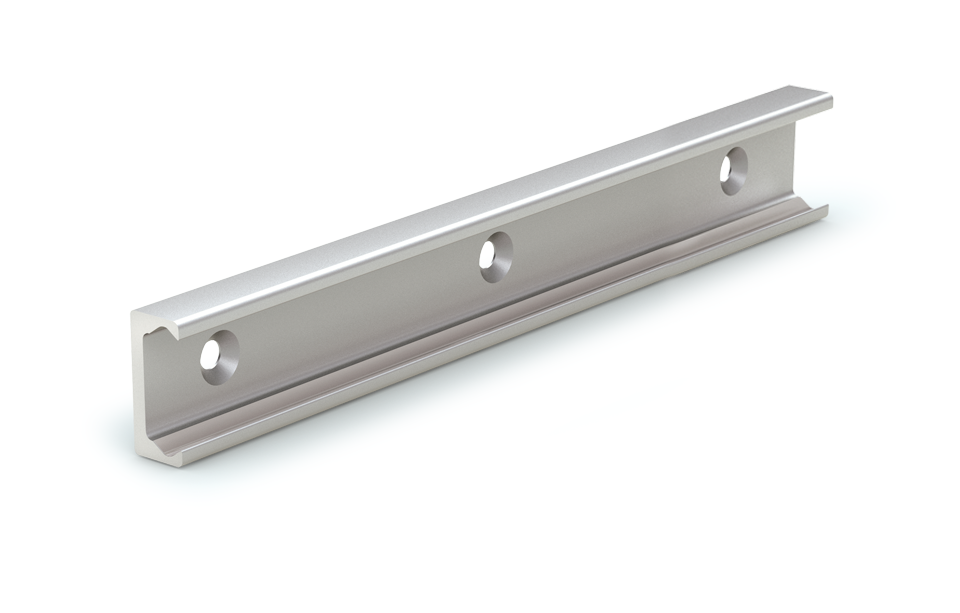

Linear Rail, 35 mm wide and 250 mm long, from the Steel Rail Standard series of linear guides, features a U-shaped ground, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes and is compatible with SRS35 carriages. Linear Rail Only Compatible with carriage part..
$81.93
Linear Rail, 35 mm wide and 500 mm long, from the Steel Rail Standard series of linear guides, features a U-shaped ground, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes and is compatible with SRS35 carriages. Linear Rail Only Compatible with carriage part..
$163.85
Linear Rail, 35mm wide and 1,000 mm long, from the Steel Rail Standard series of linear guides, features a U-shaped ground, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes and is compatible with SRS35 carriages. Linear Rail Only Compatible with carriage part numbers..
$327.70

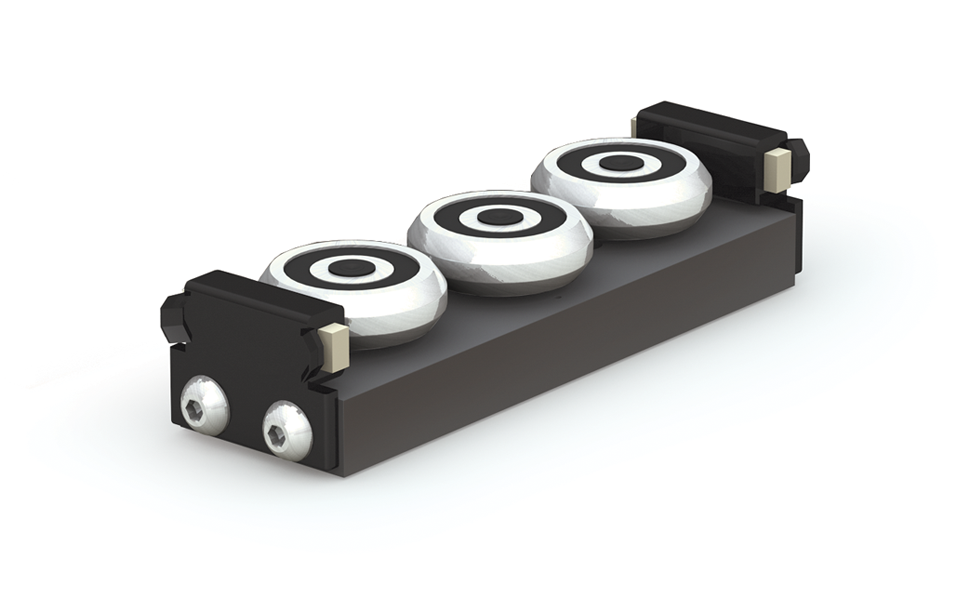

Linear Guide Carriage – Steel Rail Standard SRS35C-3AS 35 mm Width / 3 Adjustable Preloaded Rollers
