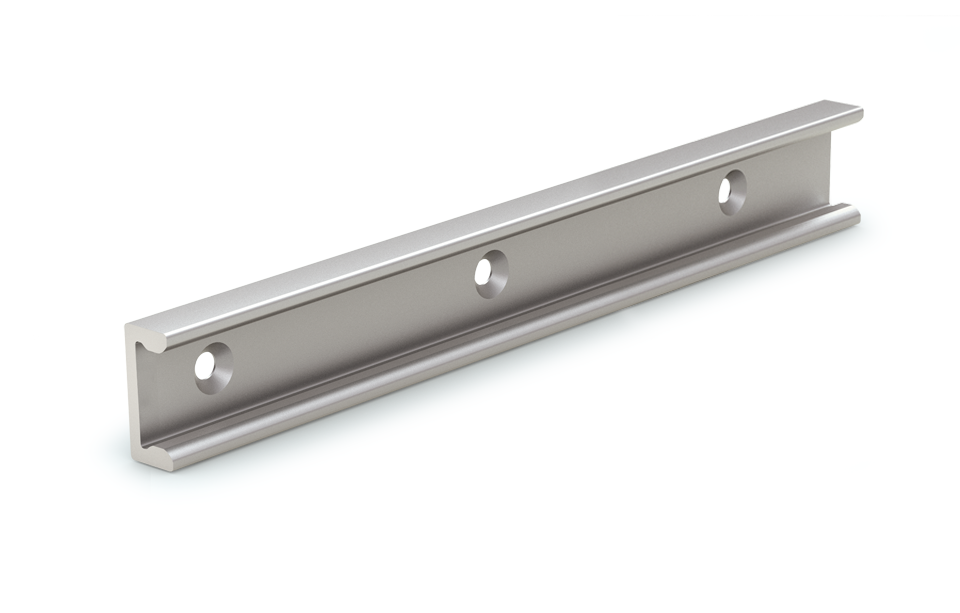

Steel Linear Guide Rail SRP43R-0500C Steel Rail Plus 43x500mm w/ Counterbore Mounting
Linear Rail, 43mm wide and 500mm long, from the Steel Rail Plus series of linear guides, features a U-shaped polished, steel body. Designed for compact setups in automation and robotics, it includes pre-drilled mounting holes and is compatible with SRP43 carriages.
- Linear Rail Only
- Compatible with carriage part numbers SRP43C
- Pre-drilled mounting holes every 80 mm; holes centered on rail length if Y is not specified
- Mounting holes fit thin head torx fasteners P/N 6101552 (sold separately)
- Rails with countersunk mounting holes are configurable via the configurator
- Continuous rail lengths up to 4,000 mm available via the configurator
Available Lengths:
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | SRP43R-0500C.x_t | SolidWorks >=2006 | Download |
