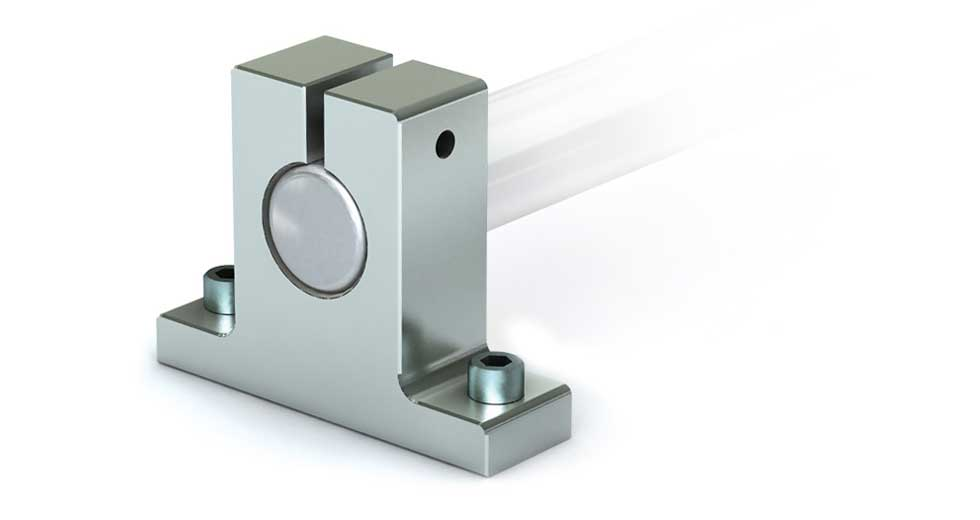

Linear Shafts and Support Rails prevent linear bearing binding from shaft sag in high-load applications. Our shafts, rails, and assemblies come in various combinations of 1060 carbon steel (RC60 Hardness™), 440 stainless steel (RC50 Hardness™), and feather-light ceramic-coated aluminum. The shafts—solid or pre-drilled—feature an optimized finish for quick break-in with self-lubricating plain linear bearings, ensuring minimal maintenance and extended machinery lifespan, with straightness tolerances of 0.001"-0.002" per foot in standard or custom lengths. The assemblies, offered as fused shaft-rail units or separate components ready to bolt together, can be mounted vertically or horizontally for versatile, economical performance. Support blocks are also available.

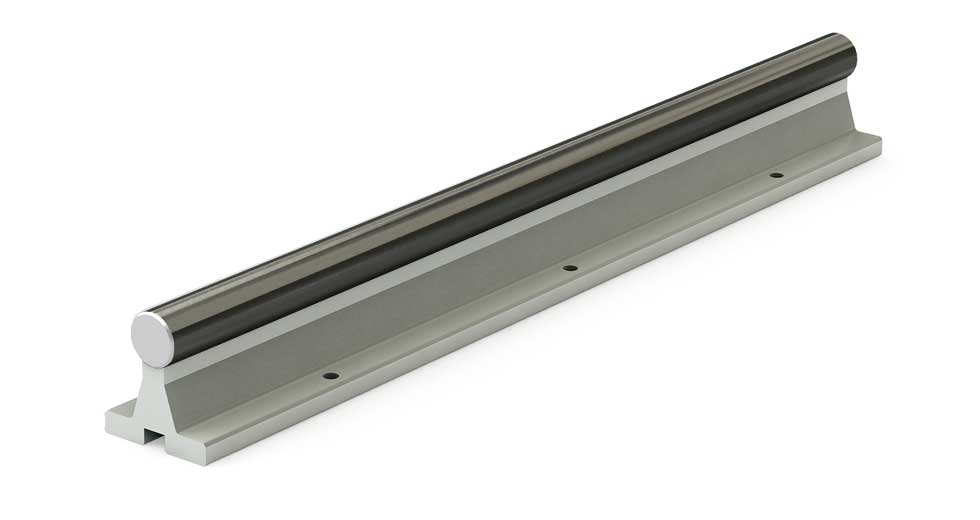

Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 16mm diameter and 300mm length, fused onto an Aluminum Alloy Linear Support Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while..
Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 12mm diameter and 360mm length, fused onto an Aluminum Alloy Linear Support Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while..
Linear Shaft made of 440 Stainless Steel and of 3" diameter, 36" length with RC 50 Hardness™, fused onto an aluminum alloy linear rail, designed for open bearing variants of Simplicity® self-lubricating plain linear bearings and ball bearings. The linear rail segment is pre-drilled for mounting, while the shaft is..
Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 3" diameter and 24" length, fused onto an Aluminum Alloy Linear Support Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while..
Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 1.5" diameter and 18" length, fused onto an Aluminum Alloy Linear Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while the..

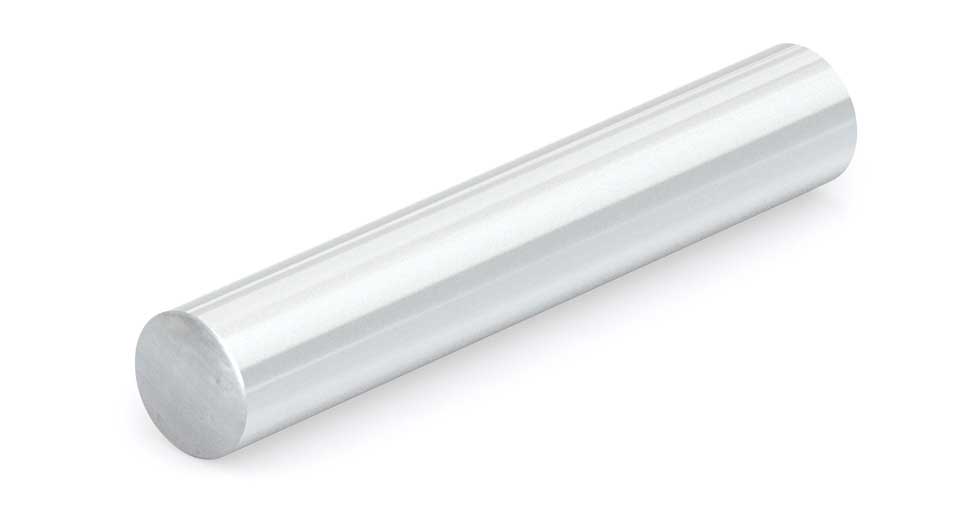

Linear Shaft made of 440 Stainless Steel with a diameter of 3/16" and a length of 12". Length tolerance: +/- 0.03"
Part Number
NIL03SS-012-000-SL
Diameter
3/16""
Material
440 SS Stainless Steel
Length
12"
Pre-Drilled
Not Drilled - Not Tapped
Type
Low profile carbon steel support rail for a 40mm shaft, 1000mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
Pre-drilled low profile carbon steel support rail for a 30mm shaft, 400mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance..
Pre-drilled low profile carbon steel support rail for a 25mm shaft, 1000mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance..
Pre-drilled low profile carbon steel support rail for a 20mm shaft, 300mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance..
Low profile carbon steel support rail for a 12mm shaft, 360mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
Low-profile 3" diameter linear shaft fused onto a 24" support rail, delivering high load capacity and precise linear alignment. The shaft is case-hardened carbon steel and it's pre-assembled with a support rail of AISI C-1018 steel. Designed for applications demanding high load carrying capacity and precision alignment. Its construction is..
Low profile carbon steel support rail for a 3" shaft, 48" in length, shipped pre-assembled with the shaft made of hardened steel and the support rail crafted from AISI C-1018 steel. The assembly has a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced..
Low profile carbon steel support rail for a 3" shaft, 36" in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
Low profile carbon steel support rail for a 3" shaft, 24" in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
Linear Shafts and Support Rails prevent linear bearing binding from shaft sag in high-load applications. Our shafts, rails, and assemblies are sold in various combinations of 1060 carbon steel (RC60 Hardness™), 440 stainless steel (RC50 Hardness™), and feather-light ceramic-coated aluminum. The shafts—solid or pre-drilled—feature an optimized finish for quick break-in with self-lubricating plain linear bearings, ensuring minimal maintenance and extended machinery lifespan, with straightness tolerances of 0.001"-0.002" per foot in standard or custom lengths. The assemblies, offered as fused shaft-rail units or separate components ready to bolt together, can be mounted vertically or horizontally for versatile, economical performance. Support blocks are also available.
Material Options: 1060 carbon stee, 440 stainless steel or ceramic-coated aluminum
Solid or pre-drilled, 0.001"-0.002" per foot straightness, optimized for self-lubricating bearings
Fused or bolt-together units, mountable vertically or horizontally.
