Linear Shafts (Shafting) and Support Rails
Browse Categories
Ceramic-Coated Aluminum Feather-Weight Linear Shaft featuring a 25mm diameter and 600mm length, fused onto an Aluminum Alloy Linear Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while the..
$0.00

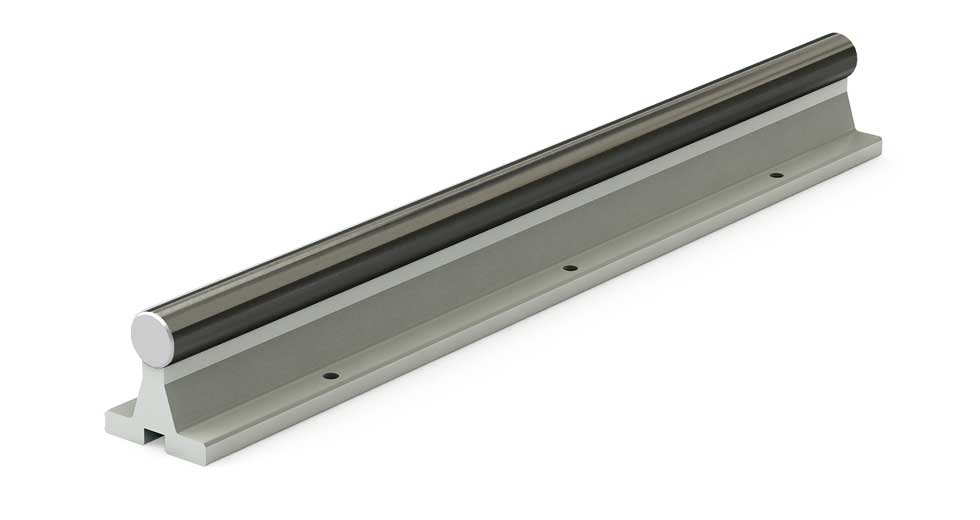

Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 20mm diameter and 600mm length, fused onto an Aluminum Alloy Linear Support Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while..
$0.00
Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 16mm diameter and 300mm length, fused onto an Aluminum Alloy Linear Support Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while..
$0.00
Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 12mm diameter and 360mm length, fused onto an Aluminum Alloy Linear Support Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while..
$0.00
Linear Shaft made of 440 Stainless Steel and of 3" diameter, 36" length with RC 50 Hardness™, fused onto an aluminum alloy linear rail, designed for open bearing variants of Simplicity® self-lubricating plain linear bearings and ball bearings. The linear rail segment is pre-drilled for mounting, while the shaft is..
$1,761.75
Linear Shaft on Rail - Ceramic-Coated Aluminum SRA48CC-024.000-SL Diameter: 3" Length: 24"
$1,174.50
Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 3" diameter and 24" length, fused onto an Aluminum Alloy Linear Support Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while..
$1,174.50
Linear Shaft on Rail - Ceramic-Coated Aluminum SRA24CC-018.000-SL Diameter: 1 1/2" Length: 18"
$292.97
Ceramic-Coated Aluminum Linear Shaft, Feather-Weight, featuring a 1.5" diameter and 18" length, fused onto an Aluminum Alloy Linear Rail. This assembly is designed for the open variants of the Simplicity® self-lubricating plain slide linear bearings or other plain bearings. The linear rail segment is pre-drilled for easy mounting, while the..
$292.97
Linear Shaft End Support Block for a 1.5" diameter shaft
Part Number
NSB24
Diameter
1 1/2"
Shaft Type
Aluminum End Support Block
$60.55
Linear Shaft End Support Block for a 1.25" diameter shaft
Part Number
NSB20
Diameter
1 1/4"
Shaft Type
Aluminum End Support Block
$52.69
Linear Shaft End Support Block for a 3/4" diameter shaft
Part Number
NSB12
Diameter
3/4"
Shaft Type
Aluminum End Support Block
$35.65
Linear Shaft End Support Block for a 5/8" diameter shaft
Part Number
NSB10
Diameter
5/8"
Shaft Type
Aluminum End Support Block
$33.92
Linear Shaft End Support Block for a 3/8" diameter shaft
Part Number
NSB06
Diameter
3/8"
Shaft Type
Aluminum End Support Block
$24.08
Linear Shaft End Support Block for a 1/4" diameter shaft
Part Number
NSB04
Diameter
1/4"
Shaft Type
Aluminum End Support Block
$23.16
Linear Shaft made of 440 Stainless Steel with a diameter of 3/16" and a length of 12". Length tolerance: +/- 0.03"
Part Number
NIL03SS-012-000-SL
Diameter
3/16""
Material
440 SS Stainless Steel
Length
12"
Pre-Drilled
Not Drilled - Not Tapped
Type
$0.00
Linear Shaft of 440 Stainless Steel with a 3/16" diameter and 3" length, featuring an optimized surface finish for self-lubricating Simplicity® plain linear bearings and linear ball bearings. Made in the USA by PBC Linear® as RC 50 Plus™ hardened stainless steel, the shaft is not drilled nor tapped. You..
$7.15
Low profile carbon steel support rail for a 40mm shaft, 1000mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
$0.00
Pre-drilled low profile carbon steel support rail for a 30mm shaft, 400mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance..
$0.00
Pre-drilled low profile carbon steel support rail for a 25mm shaft, 1000mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance..
$0.00
Low Support Rail of Carbon Steel for a 20mm Shaft - LSRM20PD-0300-SL Length: 300mm Pre-Drilled
$0.00
Pre-drilled low profile carbon steel support rail for a 20mm shaft, 300mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance..
$0.00
Low profile carbon steel support rail for a 12mm shaft, 360mm in length, crafted from AISI C-1018 steel, with a 40% lower profile than standard rails. Ideal for compact applications, this rail offers a reduced footprint for efficient low shaft support. It features no coating and a length tolerance of..
$0.00
Linear Shafts and Support Rails prevent linear bearing binding from shaft sag in high-load applications. Our shafts, rails, and assemblies are sold in various combinations of 1060 carbon steel (RC60 Hardness™), 440 stainless steel (RC50 Hardness™), and feather-light ceramic-coated aluminum. The shafts—solid or pre-drilled—feature an optimized finish for quick break-in with self-lubricating plain linear bearings, ensuring minimal maintenance and extended machinery lifespan, with straightness tolerances of 0.001"-0.002" per foot in standard or custom lengths. The assemblies, offered as fused shaft-rail units or separate components ready to bolt together, can be mounted vertically or horizontally for versatile, economical performance. Support blocks are also available.
- Material Options: 1060 carbon stee, 440 stainless steel or ceramic-coated aluminum
- Solid or pre-drilled, 0.001"-0.002" per foot straightness, optimized for self-lubricating bearings
- Fused or bolt-together units, mountable vertically or horizontally.
