Heavy-Duty Linear Rail Guides - Hevi-Rail
Ways to Order
Fixed Heavy Duty Linear Roller Bearing with a 77.7mm diameter, part of the Hevi-Rail Linear Guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-2 U-Type. The roller bearing is crafted from case-hardened S450J2 MOD. carbon steel, offering durability, while easily interchangeable components..
$139.09

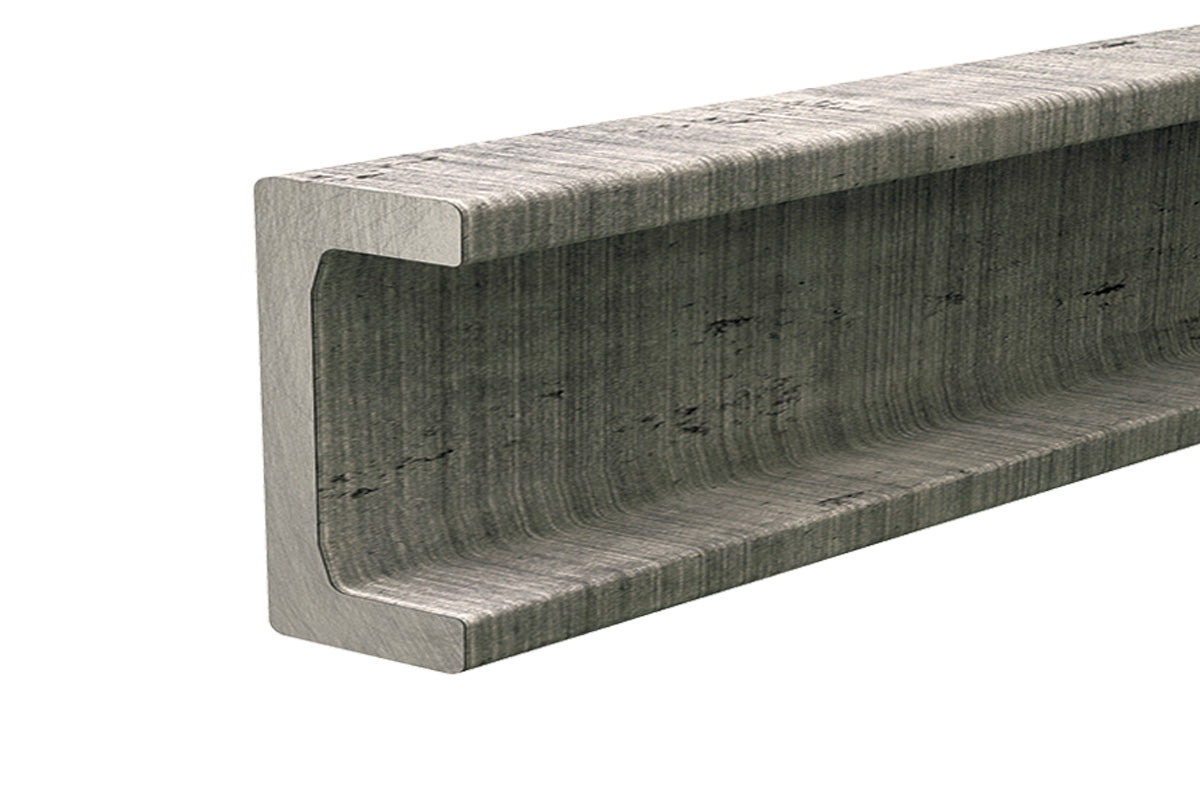

Heavy Duty Linear Rail HVR-0-1500 - Steel U-Channel 1500mm for Hevi-Rail Linear Guide Roller HVB-054
$214.31
U-channel heavy-duty linear rail made from steel with a 1500mm length for Hevi-Rail® linear guide systems. Designed for use with HVB-054 roller bearings and HVBEA-454 eccentric adjustable assemblies, this rail provides a rugged track surface for high-capacity cam roller guidance in demanding industrial applications. The rail is made from 18MnNb6..
$214.31
Heavy-Duty Linear Guide Roller HVB-058/HVP3 w/ Flange Plate for Hevi-Rail Linear Guide Rail HVR-3
$300.90
Fixed Heavy Duty Roller Bearing with an 88.4mm OD and an HVP3-1 welded horizontal flange plate. This is part of the Hevi-Rail linear guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-3 U-Type or HVRI-09 I-Type, these easily mountable linear bearings are..
$300.90
Eccentric Adjustable Heavy Duty Roller Bearing with an 88.4mm OD and an HVP3-1 welded horizontal flange plate. This is part of the Hevi-Rail linear guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-3 U-Type or HVRI-09 I-Type, these easily mountable linear bearings..
$324.14
Eccentric adjustable heavy-duty roller bearing with 101.2mm outer diameter from the Hevi-Rail linear guide system, built to withstand extreme axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVRI-10 I-Type, these linear roller bearings are crafted from durable case hardened S450J2 MOD carbon steel, offering long-lasting heavy-duty performance, while..
$191.34
Heavy-duty linear rail, I-channel size 7, with a 2000mm length and 103.2mm rail width for the PBC Linear Hevi-Rail® steel linear guide system. Designed for HVB-055 concentric and HVBEA-455 eccentric adjustable guide rollers, the I-channel provides a rigid structural track for high-load and long-span applications, allowing the rail to carry..
$449.77
Heavy Duty Linear Rail HVR-3-1000 - Steel U-Channel 1000mm for Hevi-Rail Linear Guide Roller HVB-058
$285.83
Heavy-duty linear rail, U-channel size 3, with a 1000mm length and 135.4mm rail width for the PBC Linear Hevi-Rail® steel linear guide system. Designed for HVB-058 concentric and HVBEA-458 eccentric adjustable guide rollers, this structural steel channel can serve as both the guide rail and part of the supporting machine..
$285.83
Heavy Duty Linear Rail HVR-2-1500 - Steel U-Channel 1500mm for Hevi-Rail Linear Guide Roller HVB-056
$346.25
Heavy-duty linear rail, U-channel size 2, with a 1500mm length and 121.3mm rail width for the PBC Linear Hevi-Rail® steel linear guide system. Designed for HVB-056 concentric and HVBEA-456 eccentric adjustable guide rollers, this structural steel channel can serve as both the guide rail and part of the supporting machine..
$346.25
Heavy-Duty Linear Guide Roller HVBEA-461 Eccentric Adjustable for Hevi-Rail Linear Guide Rail HVR-4
$252.55
Eccentric adjustable heavy-duty roller bearing with 107.7 mm outer diameter from the Hevi-Rail linear guide system, built to withstand extreme axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-4 U-Type, these linear roller bearings are crafted from durable case hardened S450J2 MOD carbon steel, offering long-lasting heavy-duty performance,..
$252.55
Eccentric Adjustable Linear Roller Bearing with an 88.4mm diameter from the Hevi-Rail linear guide system, built to withstand extreme axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-3 U-Type, these linear roller bearings are crafted from case hardened S450J2 MOD carbon steel, providing durable heavy-duty performance with interchangeable..
$183.65
Fixed Linear Roller Bearing with a 101.2mm diameter from the Hevi-Rail linear guide system, built to withstand extreme axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVRI-10 I-Type, these roller bearings are crafted from case hardened S450J2 MOD carbon steel, providing durable heavy-duty performance with interchangeable parts to..
$171.96
Fixed Heavy Duty Linear Roller Bearing with a 123mm diameter, part of the Hevi-Rail Linear Guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-5 U-Type. The roller bearing is crafted from case-hardened S450J2 MOD. carbon steel, offering durability, while easily interchangeable components..
$276.09
Heavy Duty Linear Rail HVR-6-2000 - U-Channel 2000mm for Hevi-Rail Linear Guide Roller HVB-063
$1,011.96
Heavy-duty linear rail, U-channel, with a 2000mm length and 201.5mm rail width for the PBC Linear Hevi-Rail® size 6 linear guide system. Designed for HVB-063 concentric and HVBEA-463 eccentric adjustable guide rollers, this structural steel channel can serve as both the guide rail and part of the supporting machine structure...
$1,011.96
Heavy Duty Linear Rail HVR-5-2000 - U-Channel 2000mm for Hevi-Rail Linear Guide Roller HVB-062
$813.92
Heavy-duty linear rail, U-channel size 5, with a 2000mm length and 175mm rail width for the PBC Linear Hevi-Rail® linear guide system. Designed for HVB-062 concentric and HVBEA-462 eccentric adjustable guide rollers, this structural steel channel can serve as both the guide rail and part of the supporting machine structure...
$813.92
Heavy Duty Linear Rail HVR-4-2000 - U-Channel 2000mm for Hevi-Rail Linear Guide Roller HVB-061
$703.72
Heavy-duty linear rail, U-channel size 4, with a 2000mm length and 157.2mm rail width for the PBC Linear Hevi-Rail® linear guide system. Designed for HVB-061 concentric and HVBEA-461 eccentric adjustable guide rollers, this structural steel channel can serve as both the guide rail and part of the supporting machine structure...
$703.72
Heavy Duty Linear Rail HVR-3-1500 - Steel U-Channel 1500mm for Hevi-Rail Linear Guide Roller HVB-058
$428.74
Heavy-duty linear rail, U-channel size 3, with a 1500mm length and 135.4mm rail width for the PBC Linear Hevi-Rail® steel linear guide system. Designed for HVB-058 concentric and HVBEA-458 eccentric adjustable guide rollers, this structural steel channel can serve as both the guide rail and part of the supporting machine..
$428.74
Heavy Duty Linear Rail HVR-1-2000 - Steel U-Channel 2000mm for Hevi-Rail Linear Guide Roller HVB-055
$351.78
Heavy-duty linear rail, U-channel size 1, with a 2000mm length and 103.2mm rail width for the PBC Linear Hevi-Rail® steel linear guide system. Designed for HVB-055 concentric and HVBEA-455 eccentric adjustable guide rollers, this structural steel channel can serve as both the guide rail and part of the supporting machine..
$351.78
Heavy Duty Linear Rail HVR-2-1000 - Steel U-Channel 1000mm for Hevi-Rail Linear Guide Roller HVB-056
$230.83
Heavy-duty linear rail, U-channel size 2, with a 1000mm length and 121.3mm rail width for the PBC Linear Hevi-Rail® steel linear guide system. Designed for HVB-056 concentric and HVBEA-456 eccentric adjustable guide rollers, this structural steel channel can serve as both the guide rail and part of the supporting machine..
$230.83
Heavy-Duty Linear Guide Roller HVB-063/HVP6 Fixed Concentric w/ Flange Plate for Hevi-Rail HVR-6
$669.17
Fixed concentric linear guide roller for the HVR-6 U-channel, with the HVP6-1 horizontal flange plate welded in place for mounting to a carriage or frame. The 149mm OD combined roller carries both radial and axial loads and uses a case-hardened S450J2 MOD carbon steel outer ring for heavy-duty service. It..
$669.17
Heavy-Duty Linear Guide Roller HVB-061/HVP4 w/ Flange Plate for Hevi-Rail Linear Guide HVR-4
$416.63
Fixed concentric linear guide roller for the HVR-4 U-channel, with the HVP4-1 horizontal flange plate welded in place for mounting to a carriage or frame. The 107.7mm OD combined roller carries both radial and axial loads and uses a case-hardened S450J2 MOD carbon steel outer ring for heavy-duty service. It..
$416.63
Linear rails are track systems that guide sliding or rolling elements along a single axis, providing controlled linear motion while supporting loads. Linear rail systems include round shaft rails, profile rails, cam roller tracks, and gliding linear slides, with rail geometries including U-channel, I-channel, C-channel, and Gothic arch raceways.
PBC Linear Hevi-Rail® linear rails are heavy-duty cam roller tracks available in rugged U-channel and I-channel profiles for high-load, long-travel applications. Matching case-hardened steel cam rollers support high radial and axial loads while providing durable rolling contact for material handling, lifts, steel processing, heavy manufacturing, and other applications involving shock, vibration, and demanding operating conditions.
Hevi-Rail® provides a robust alternative to precision profile rail where load capacity, structural strength, long travel, and resistance to harsh operating conditions take priority over positioning accuracy. Interchangeable rails, rollers, and mounting components simplify system maintenance and component replacement, while clamp flanges are available on selected sizes to simplify installation without welding and subsequent straightening.
Available in 11 sizes with continuous linear rail lengths up to 6m, Hevi-Rail® systems reach family maximum static load ratings of 59.2kN radial and 18.5kN axial. Rail material and mounting options vary by size, with sand-blasted or lightly oiled finishes available. Sealed rollers help protect internal components, while proper raceway lubrication supports long service life under heavy loads.
- Heavy-duty linear rails for controlled single-axis motion under high loads
- Made from durable S450J2 carbon steel
- Available in rugged U-channel and I-channel/I-beam rail profiles
- Case-hardened S450J2 MOD carbon steel cam roller outer rings
- Designed to withstand high radial and axial loads
- Supports axial loads up to 18.5 kN and radial loads up to 59.2 kN
- Available in 11 sizes with continuous rail lengths up to 6 meters
- Clamp flanges simplify installation without welding or straightening
- Self-aligning design helps accommodate shock, vibration, and alignment variation
- Sand-blasted finish options provide added corrosion resistance
- Sealed, lubricated-for-life roller options help reduce maintenance
- Suitable for aerospace lifts, steel processing, heavy manufacturing, and material handling
Frequently Asked Questions
What are Degrees of Freedom (DOF) in mechanics?
Degrees of Freedom (DOF) describe the number of independent ways a body can move in space. In mechanical systems, there are six main degrees of freedom: three translational (movement along the X, Y, and Z axes) and three rotational (rotation about those axes). Linear motion systems constrain these to allow controlled movement along one axis (desired path).
What types of linear rails are available?
Linear rails come in a variety of geometries depending on application needs, including U-channel, I-channel, C-channel, V-edge, and Gothic arch raceways. Each type is designed to support different load capacities, environments, and motion requirements.
What are linear rails used for?
Linear rails guide and support components moving along a controlled linear path. They are used in applications such as automation, material handling, machine tools, manufacturing equipment, aerospace systems, lifts, and other equipment requiring guided linear motion.
What is the difference between a linear rail and a linear guide?
A linear rail is the track or structural element that establishes the path of motion. A linear guide generally refers to the complete guiding system, which can include the linear rail together with bearings, rollers, carriages, or other moving components.
How do you choose a linear rail?
Linear rail selection depends on factors such as radial and axial load, travel length, speed, available mounting space, required rigidity, alignment, operating environment, and the type of bearing or roller used with the rail.
When are heavy-duty linear rails used?
Heavy-duty linear rails are used when an application requires greater load capacity, structural rigidity, shock resistance, or long-travel support than lighter linear guide systems can provide. Typical applications include steel processing, heavy manufacturing, material handling, industrial lifts, and large machinery.
What is the difference between U-channel and I-channel linear rails?
U-channel and I-channel linear rails use different structural profiles and mounting arrangements. The appropriate geometry depends on factors such as load direction, available installation space, structural support, roller arrangement, and machine design.
Can linear rails support both radial and axial loads?
Some linear rail and track roller systems are designed to support loads in both radial and axial directions. The allowable load depends on the rail geometry, roller configuration, size, mounting arrangement, and operating conditions.
How does alignment affect linear rail performance?
Poor alignment can increase rolling resistance, uneven loading, wear, and stress on linear rail components. Systems with self-aligning features can accommodate some installation variation while helping maintain consistent roller contact with the rail.
How long can linear rails be?
Available linear rail lengths depend on the rail system and manufacturer. PBC Linear Hevi-Rail® systems are available in continuous rail lengths up to 6 meters for long-travel applications.
Do linear rails require lubrication?
Lubrication requirements depend on the type of linear rail system and rolling elements. Some track roller systems use sealed, lubricated-for-life rollers that reduce routine maintenance and help protect internal bearing components from contamination.
