US Manufacturer of Linear Bearings, Linear Actuators, Shafts, Rails & Guides
Linear Bearings
Linear Roller Bearing Pillow Blocks
Double Roller Bearing Pillow Blocks
Double Roller Bearing Pillow Block

Double Roller Bearing Pillow Blocks

Double Roller Bearing Pillow Blocks (DPB) have two sets of 3 opposing roller bearings while maintaining the standard size of a Single Roller Pillow Block (SPB), which has one set. In contrast, Twin Roller Pillow Blocks (TWN) feature two sets of 3 opposing rollers but are double the size, resembling two SPBs fused together. Double Roller Pillow Blocks provide twice the dynamic load rating in the same footprint.

  • Use a floating "F" part number for each opposing normal part number block on a parallel shaft. F-DPB pillow blocks offer flexibility for imperfect alignments
  • Optional scrapers mounted on each end made of spring-tempered beryllium copper
  • Optional Top Grease Lubrication Port
  • Double the load capacity of a Single Roller Bearing (SPB)
  • A set of opposing roller bearings consists of 1 fixed side roller, 1 eccentric side roller (to account for any misalignment) and a top support roller
  • FUBK Series replacement kits provide 1 new roller for each of the 3 rollers in a set. Order two replacement kits for the 2 sets of this product's 3 opposing roller bearings
More About Double Roller Bearing Pillow Blocks

Ways to Order

Custom Features Get A Quote
Roller Pillow Block Technology
Download PDF Download PDF Video Video

Double Roller Bearing Pillow Blocks

42 products
QUICK SHIP
PRICE
PRODUCT TYPE
UNIT SYSTEM
DIAMETER
No Matches
BEARING STACK SIZE
BEARING STYLE
BEARING TYPE
FOR SHAFT MATERIAL
Close filters
Filter
42 products

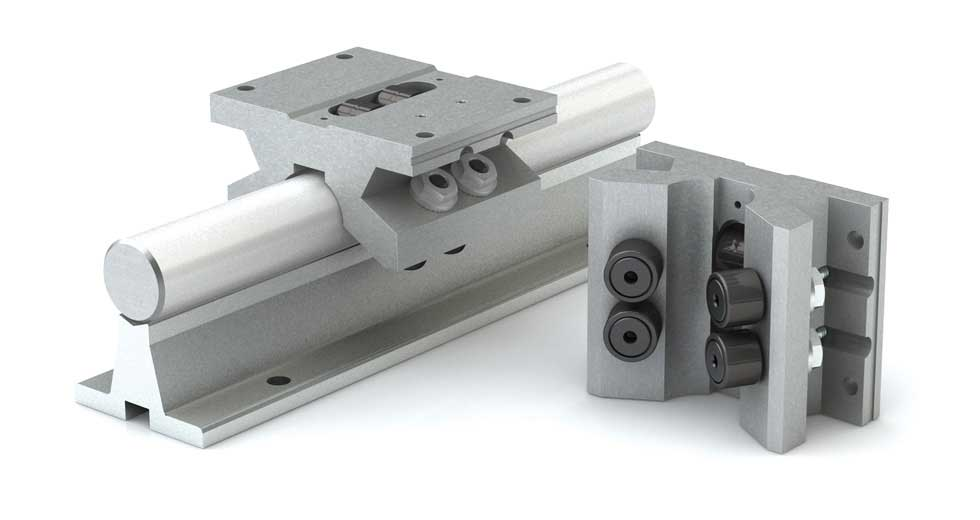

DPB-24-OPN 1.50" Double Roller Pillow Block Bearing Inch

Double Roller Pillow Block Bearing DPB-24-OPN 1.5" ID

$475.69

Double Roller Pillow Block Bearing DPB-24-OPN 1.5" ID

$475.69
Double Roller Bearing Pillow Block (DPB) for a 1.5" diameter linear shaft features two sets of 3 opposing roller bearings while maintaining the open bearing style standard size profile of a Single Roller Pillow Block (SPB). In contrast, a Twin Roller Pillow Block (TWN) also has two sets of 3..
$475.69
DPB-20-OPN 1.25" Double Roller Pillow Block Bearing Inch

Double Roller Pillow Block DPB-20-OPN 1.25" ID - Standard Width

$399.72

Double Roller Pillow Block DPB-20-OPN 1.25" ID - Standard Width

$399.72
Double Roller Bearing Pillow Block (DPB) for a 1/25" diameter linear shaft features two sets of 3 opposing roller bearings while maintaining the standard size open bearing style profile of a Single Roller Pillow Block (SPB). In contrast, a Twin Roller Pillow Block (TWN) also has two sets of 3..
$399.72
42 products

Double Roller Bearing Pillow Blocks

42 products

Double Roller Bearing Pillow Blocks (DPB) have two sets of 3 opposing roller bearings while maintaining the standard size of a Single Roller Pillow Block (SPB), which has one set. In contrast, Twin Roller Pillow Blocks (TWN) feature two sets of 3 opposing rollers but are double the size, resembling two SPBs fused together. Double Roller Pillow Blocks provide twice the dynamic load rating in the same footprint.

  • Use a floating "F" part number for each opposing normal part number block on a parallel shaft. F-DPB pillow blocks offer flexibility for imperfect alignments
  • Optional scrapers mounted on each end made of spring-tempered beryllium copper
  • Optional Top Grease Lubrication Port
  • Double the load capacity of a Single Roller Bearing (SPB)
  • A set of opposing roller bearings consists of 1 fixed side roller, 1 eccentric side roller (to account for any misalignment) and a top support roller
  • FUBK Series replacement kits provide 1 new roller for each of the 3 rollers in a set. Order two replacement kits for the 2 sets of this product's 3 opposing roller bearings
  • Inch and metric sizing options
  • Available in assorted bearing lengths and widths
  • Maximum speed of ~8 m/s
  • Available for shaft diameters from 0.5 in to 3.0 in
  • Loads up to 12,500 lb (55,602 N)
  • Self-aligning and adjustable
  • Navigates joined shafts and rail assemblies with ease
