Belt Driven Linear Actuator - V-Wheels UGT040D-B21-1000-BD1Z0-00L0-0 V-Rail Length: 1000mm w/ Blank Motor Plate

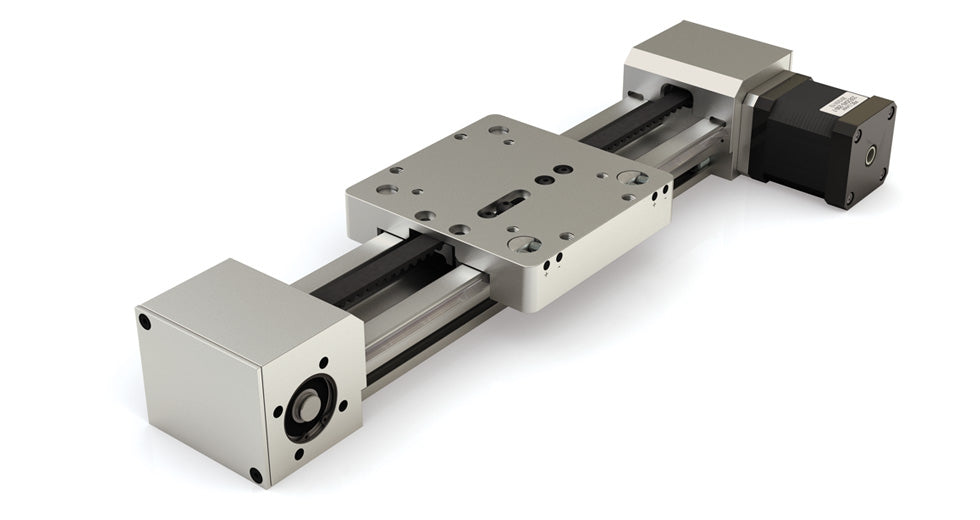

Belt-driven linear actuator with 1000mm v-rails and a blank motor mounting plate for moving and accurately positioning loads. The actuator features a v-wheel carriage on a pair of parallel 1000mm-long v-rails with a 40mm-tall and 40mm wide aluminum rail profile. The black motor mounting plate allows installation of a compatible motor, sold separately. Once motorized, the belt drives the carriage, whose sealed stainless steel v-wheels roll along the parallel v-rails to provide smooth, stable linear motion. The tall-profile rail assembly provides structural rigidity and maintains carriage alignment during travel. PBC Linear's SIMO® manufacturing process machines aluminum extrusions with synchronized cutters in a single pass, achieving twice the flatness and dimensional tolerances of 0.050mm.
- Belt-driven linear actuator for moving & accurately positioning loads
- Linear V-rail height: 40mm
- Linear V-rail width: 40mm
- Pair of parallel V-rails of length: 1000mm
- Black motor mounting plate included; motor sold separately
- Belt drive converts motor rotation into linear carriage movement
- Sealed stainless steel V-wheels roll along angled rail surfaces
- Tall-profile aluminum rail provides structural rigidity
- Rolling-element carriage guidance for smooth, controlled motion
- SIMO® machining process provides 2× better rail flatness
- Precision-machined aluminum rail with 0.050mm tolerances
- Single-pass synchronized machining improves rail alignment
- Applications: Industrial automation, material handling and equipment positioning
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | UGT040D-B21-1000-BD1Z0-00L0-0.x_t | SolidWorks >=2006 | Download |
