Low Profile Linear Carriage - Uni-Guide - UGA040C-0C1G00

Low Profile Linear Carriage - Uni-Guide - UGA040C-0C1G00

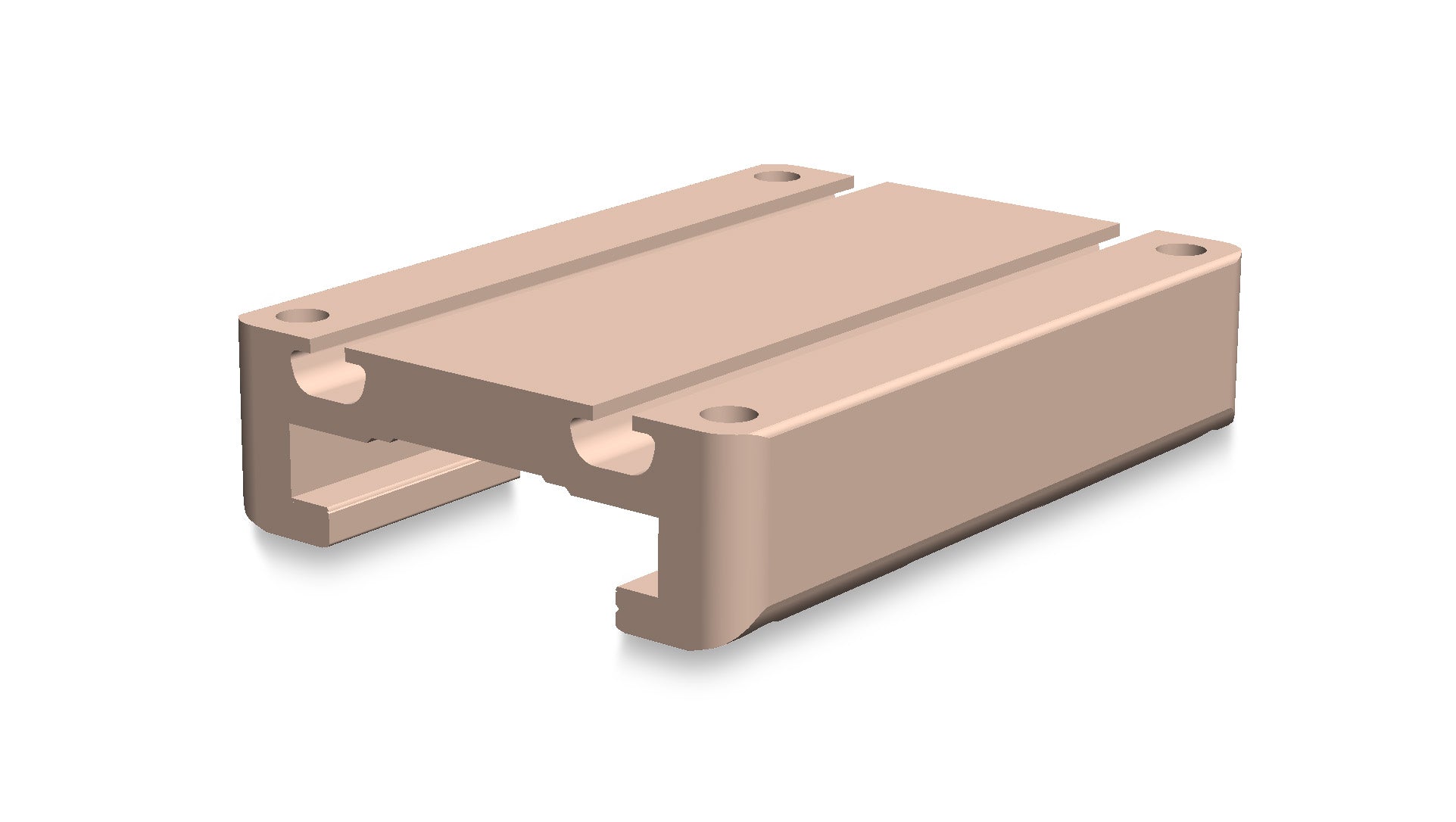

Low Profile Uni-Guide Linear Carriage - UGA040C-0C1G00, a 100mm anodized aluminum carriage with FrelonGOLD® liner for low-wear, maintenance-free, shock-resistant gliding motion. Compensated running clearance (0.064–0.089mm). Compatible with UGA040R series rails.

  • Compatible rails: UGA040R-1000-000, UGA040R-1500-000, UGA040R-2000-000
  • 100mm carriage length
  • FrelonGOLD® liner for quiet, smooth, maintenance-free operation
  • Compensated running clearance: 0.064–0.089mm
  • Pre-drilled tapped holes and T-slots for flexible mounting
  • High-load capability without metal-to-metal contact
  • Precision-machined for optimal alignment and accuracy
  • Carriage only — rail sold separately

PDF View Catalog

3D Models

TypeFileFormatLink
3dUGA040C-0C1G00.x_tSolidWorks >=2006View
cadUGA040C-0C1G00.stepSTEP AP214Download
$89.84
Configure Custom Length

Max Length: 2,750 mm

Ask about this product
Chat Now
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightlength
0.504 lbs100 mm
