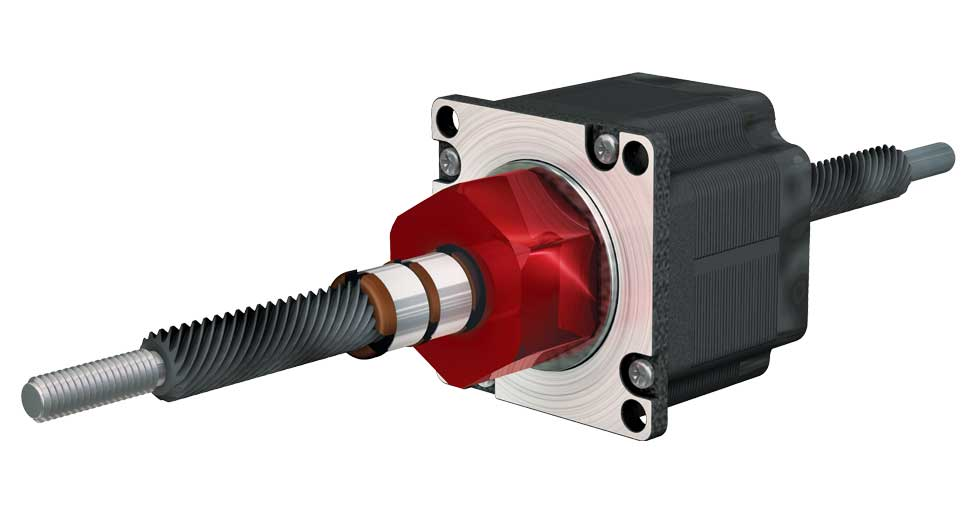

Lead Screw Linear Actuator - LSR1010T-0300-NCF231-NNN-NNN - Length: 300mm, Non-Captive NEMA23 Motor
Non-Captive Lead Screw Linear Actuator 300mm long with a NEMA 23 Motor, Non-Captive Round Anti-Backlash Nut, 10mm screw diameter, 10mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Round Constant Force™ Anti-Backlash nut uses a spring to maintain uniform radial pressure, reducing backlash by 2-4 times over its lifespan. Choose a non-captive lead screw actuator when space is limited, as it allows the lead screw to pass completely through the motor.
- Screw Diameter 10mm
- Lead 10mm
- PTFE Coating
- Length: 300mm
- NEMA23 Motor
- Lead Accuracy: 0.003"/ft (76 µm/300 mm)
ASY LD SCR NUT LS 10x10x5 0300mm NC
