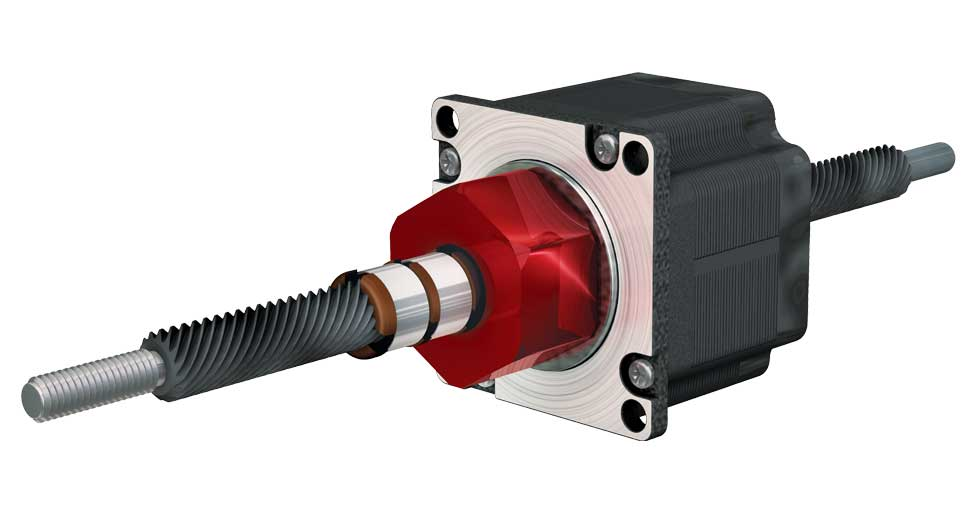

Lead Screw Linear Actuator - LSR1001T-0300-NCF231-NNN-NNN - Length: 300mm, NEMA23 Motor, Non-Captive, Anti-Backlash Nut
Non-Captive Lead Screw Linear Actuator 300mm long with a NEMA 23 Motor, Non-Captive Round Anti-Backlash Nut, 10mm screw diameter, 1mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Round Constant Force™ Anti-Backlash nut uses a spring to maintain uniform radial pressure, reducing backlash by 2-4 times over its lifespan. Choose a non-captive lead screw actuator when space is limited, as it allows the lead screw to pass completely through the motor.
- Nut Type: Non-Captive Round Anti-Backlash Nut
- Motor: NEMA 23
- Coating: PTFE
- Lead Accuracy: 0.003"/ft (76 µm/300 mm)
ASY LD SCR NUT LS 10x1x1 0300mm NCF
