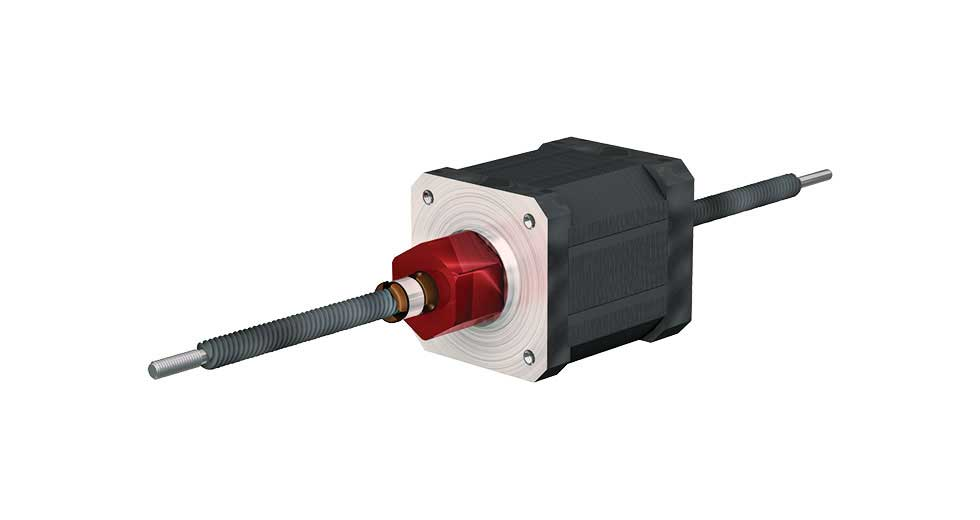

Lead Screw Linear Actuator - LSR0602T-0200-NCF141-NNN-NNN, Non-Captive with Anti-Backlash Nut, 6x2x200mm

  • Screw Length: 200 mm
  • Lead Screw: 6 mm dia. x 2 mm lead
  • Motor: NEMA 14
  • Anti-Backlash Nut: Non-Captive
Miniature non-captive lead screw linear actuator with a 6mm screw diameter, 2mm lead, and 200mm length, featuring a non-rotating lead screw that passes completely through the motor assembly to move and accurately position loads. The programmable NEMA 14 single-stack stepper motor (35mm frame size, 36mm motor length) incorporates a rotating internal round anti-backlash nut that converts motor rotation into linear motion, allowing either the motor assembly to travel along a stationary screw or the screw to move axially through a stationary motor. Position, speed, acceleration, direction, and travel can be programmed using a compatible external motion controller and motor drive.
$191.99
Configure Custom Features
Contact
Dimensions
Media
Charts
Resources
Approx. Weight
0.09 lbs

*For complete dimensions see tab

Videos

Linear Actuators Overview
Linear Actuators Overview
MTB Series Linear Actuator Accessories
MTB Series Linear Actuator Accessories
SIMO UG Series Linear Actuators
SIMO UG Series Linear Actuators
MTB Series Linear Actuator Overview
MTB Series Linear Actuator Overview

News & Blogs

Winner of the Motion Control Award for Actuator Technology
blogOpen Link
PBC Linear Expands Actuator Product Line
blogOpen Link
A Guide to High Speed Stepper Motors
blogOpen Link

The patent pending Constant Force Lead Screw applies uniform pressure to the nut at all stages of travel along our quality CNC rolled lead screws. World class NEMA motors combined with an integrated lead screw make for one of the most accurate lead screw assemblies on the market.

Key Features:

  • Superior Performance: 2-4x less backlash over the life of the device, as validated by leading lab automation customer testing
  • Self-lubricating: All nut styles offered are self-lubricating for the life of the nut
  • CNC Roll Threading: Allows for standard accuracies of 0.003"/ft. (2-3 times better than the competition). Precision lead accuracy of 0.001"/ft is available upon request
  • 300 series stainless steel screw
  • Optional PTFE coating lowers friction and increases efficiency
  • Machined journals available to suit application requirements
