Lead Screw Linear Actuator - LSR0601T-0250-NCF171-NNN-NNN, Non-Captive with Anti-Backlash Nut, 6x1x250mm

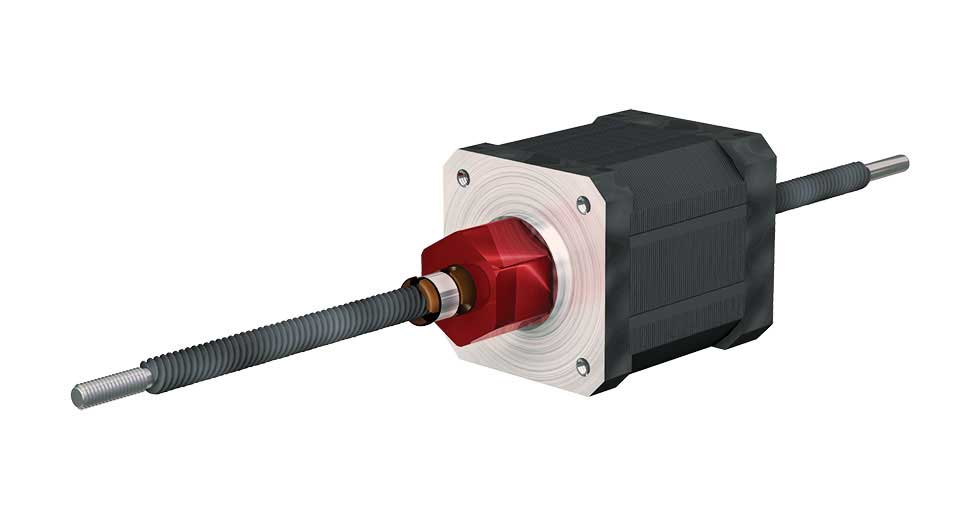

Miniature non-captive lead screw actuator with a 6mm screw diameter, 1mm lead, and 250mm length, featuring a non-rotating lead screw that passes completely through the motor assembly to move and accurately position loads. The programmable NEMA 17 single-stack stepper motor (42mm frame size, 39.8mm motor length) incorporates a rotating internal anti-backlash nut that converts motor rotation into linear motion, allowing either the motor assembly to travel along a stationary screw or the screw to move axially through a stationary motor. Position, speed, acceleration, direction, and travel can be programmed using a compatible external motion controller and motor drive.
The precision-rolled 300 Series stainless steel lead screw features a PTFE coating to reduce friction and wear. The round internal anti-backlash nut incorporates PBC Linear's Constant Force Technology™, using uniform spring-loaded radial pressure to maintain thread engagement, reduce axial play, and compensate for wear, improving positioning repeatability. Manufactured in the USA, the actuator delivers a lead accuracy of 0.003in/ft (76µm/300mm), up to three times better than typical industry specifications.
- Non-rotating lead screw passes completely through the motor assembly
- Internal Constant Force Technology™ anti-backlash nut minimizes axial play
- Uniform spring-loaded radial pressure maintains thread engagement
- Supports traveling-motor or traveling-screw configurations
- NEMA 17 single-stack stepper motor (42mm frame size, 39.8mm motor length)
- Programmable position, speed, acceleration, direction, travel with compatible drive
- External motor controller/drive sold separately (unlike integrated TSM step-servo)
- With motor lead wires (~300mm/12") and connector; longer cables sold separately
- Precision-rolled 300 Series stainless steel lead screw with PTFE coating
- Automated CNC screw straightening for improved straightness and durability
- Screw length: 250mm
- Screw diameter: 6mm
- Screw Lead: 1mm (linear distance traveled per screw revolution)
- Thread direction: Right-hand (clockwise)
- Backlash reduction: 2–4× over nut service life
- Manufactured in the USA (Roscoe, Illinois)
- Lead accuracy: 0.003in/ft (76µm/300mm), 3× better than industry standard
