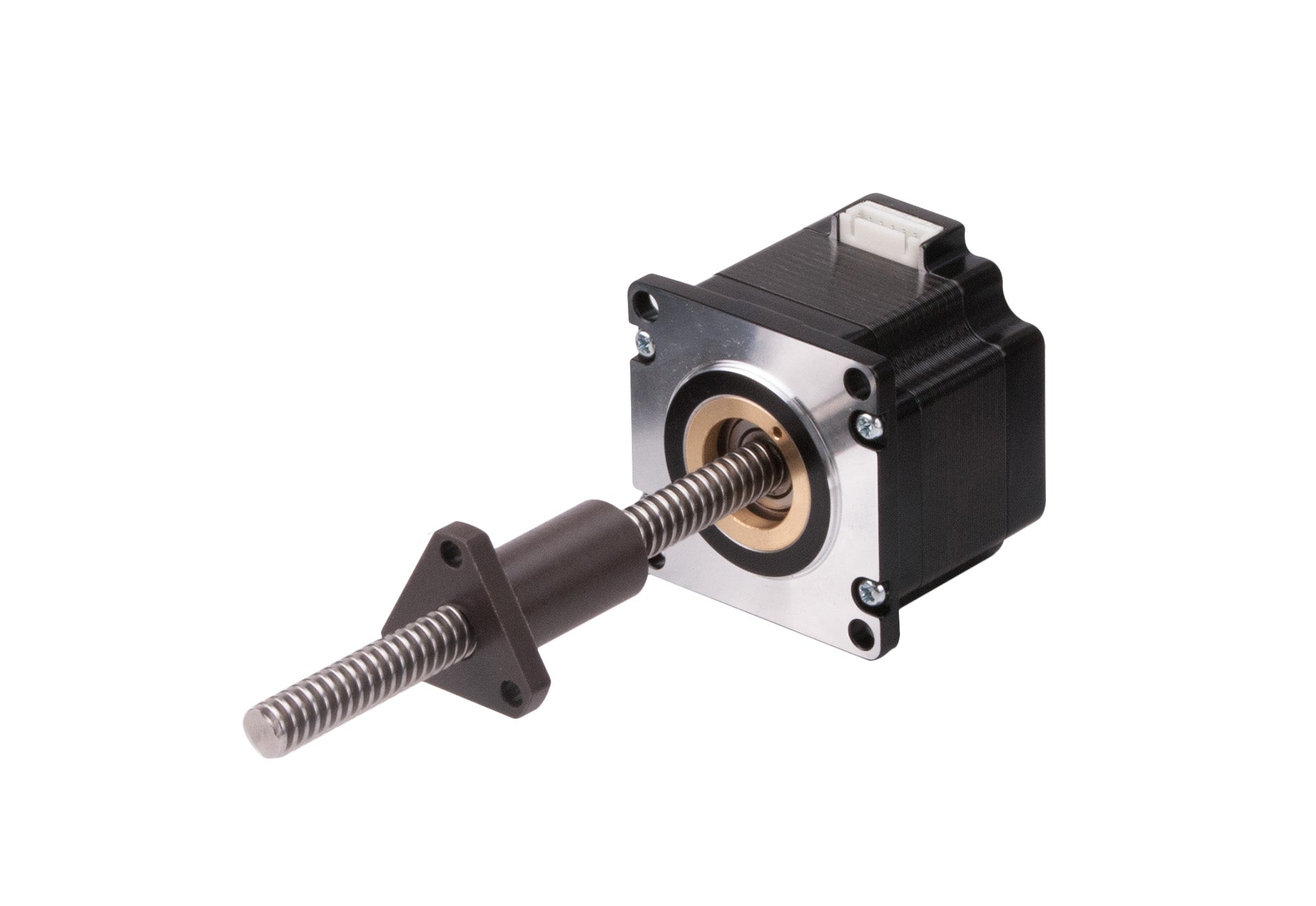

Lead Screw Linear Actuator LE238S-T10105-400-AR2-0-220 External Nut NEMA 23 Motor, Length: 400mm
Lead screw linear actuator 400mm long, with a 10mm screw diameter, 10.5mm lead, NEMA 23 stepper motor, and external round standard nut. The motor rotates the screw, forcing the restrained nut to travel axially in a straight line. The 10.5mm lead provides faster linear travel per revolution, while the motor supplies the torque needed for controlled thrust and positioning. The external nut allows the moving component to mount directly to it. Rated current: 2.20A.
- Lead screw linear actuator with external round standard nut
- Length: 400mm
- Screw diameter: 10mm
- Lead: 10.5mm per revolution
- Motor: NEMA 23 stepper motor
- Rated current: 2.20A
- Motor rotates the screw, forcing the restrained nut to travel axially in a straight line
- External nut allows the moving component to mount directly to it
- 10.5mm lead provides faster linear travel per revolution
- Motor supplies torque for controlled thrust and positioning
- External guidance supports the load and prevents the nut from rotating
- 400mm length supports longer linear travel applications
