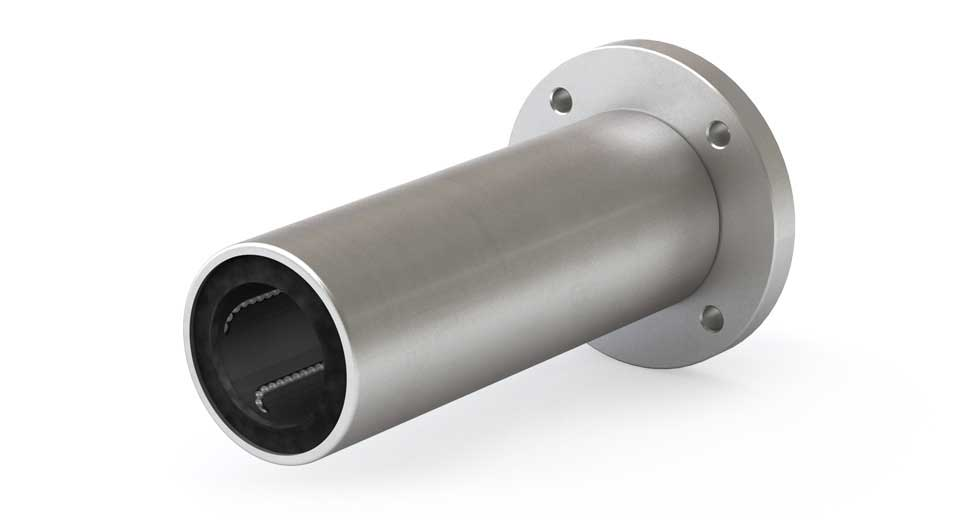

Linear Ball Bearing - Round Flange JPF08GW 8mm JIS Metric, Double Wide

Flanged Linear Ball Bearing - 8mm JIS Metric ID (inner diameter), size interchangeable with other JIS (Japanese Industrial Standard) products, including Simplicity® JIS Metric plain linear bearings.

  • Round Flange
  • End Mount
  • Double Wide
  • Polymer Cage

Specifications for Linear Ball Bearings:

  • Temperature Range: -4/+176°F (-20/+80°C)
  • Interchangeable: Size interchangeable with industry standards and our Simplicity® plain linear bearing series
  • Low Coefficient of Friction: Ensures smooth operation
  • Heat Treated Alloy Steel Shell: Provides durability
  • Resin Retainer: Reduces noise
  • Double Seals: Included as standard at no additional cost

3D Models

TypeFileFormatLink
cadJPF08GW.x_tSolidWorks >=2006Download
$40.06
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
0.13 lbs1.77 in1.26 in1.26 in
