Integral-V Linear Rail - IVTABKR-0400-000 Length: 400mm

Integral-V Linear Rail - IVTABKR-0400-000 Length: 400mm

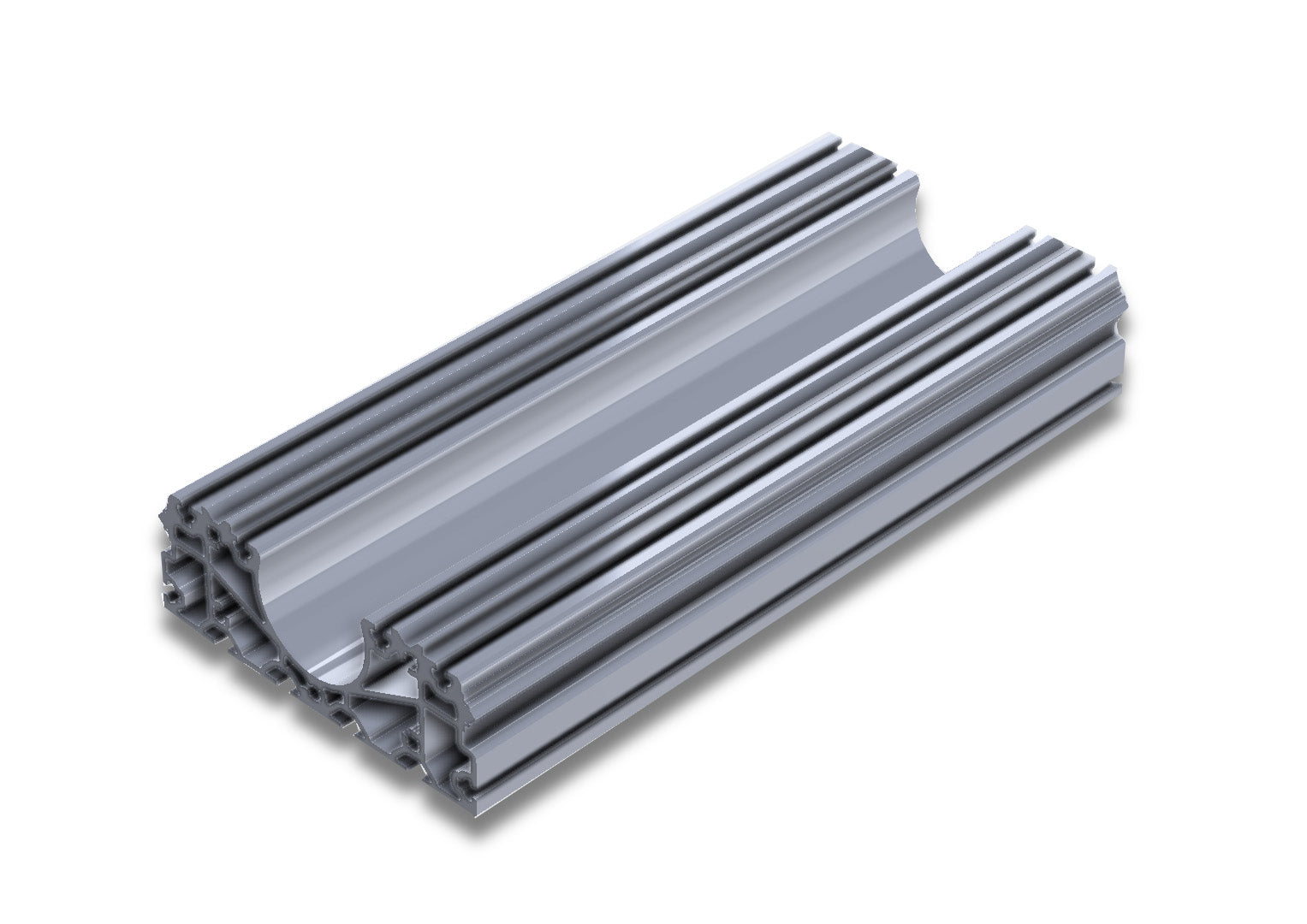

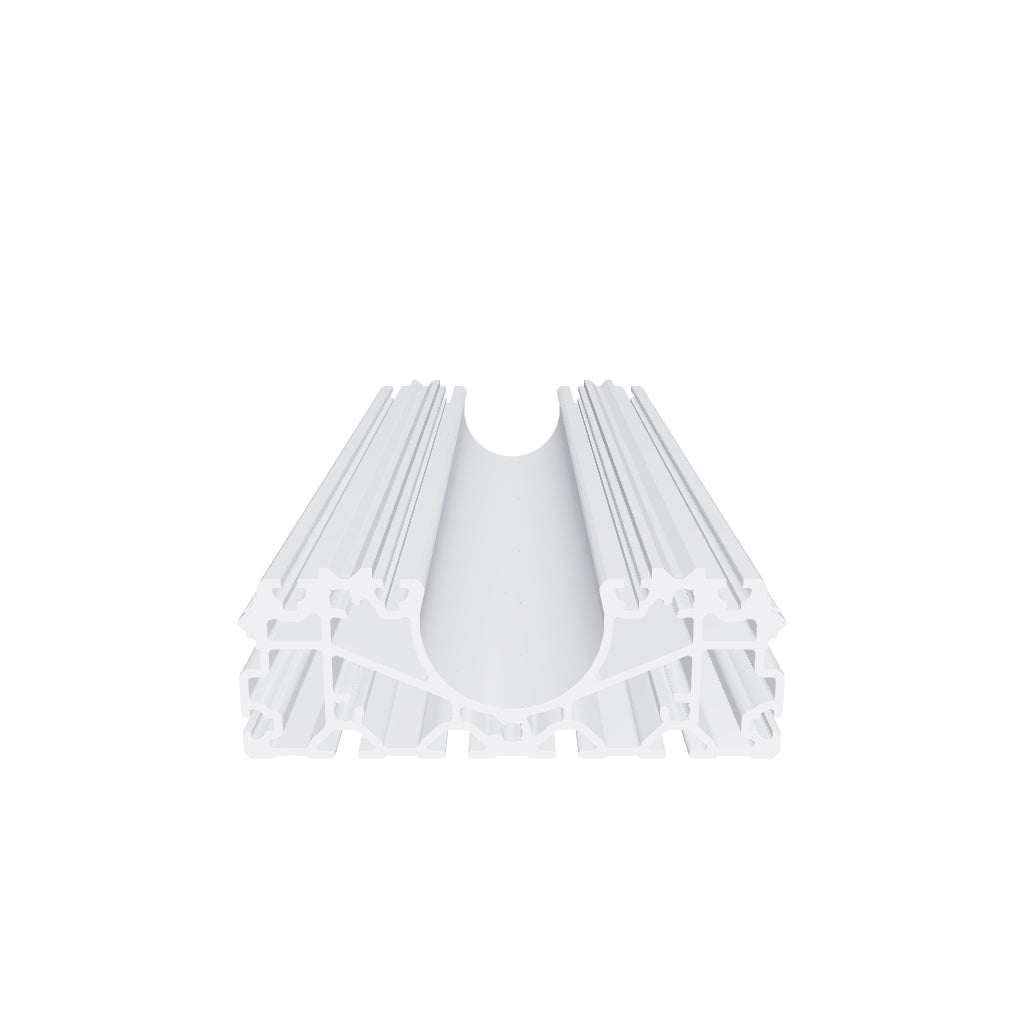

Integral-V Linear Rail IVTABKR-0400-000, a 400mm anodized aluminum rail with hardened stainless steel V-raceways embedded directly into the rail profile. Compatible with IVTABKC-A20A0 carriage.

  • Compatible carriage: IVTABKC-A20A0
  • Rail length: 400mm | Max rail length: 3,657 mm
  • Hardened stainless steel V-raceways embedded in anodized aluminum
  • Eliminates fasteners — 40% fewer mounting components
  • End treatment: saw cut and deburr | Standard version
  • Specify Y-dimension (hole to end) at time of order
  • Rail only — carriage sold separately

PDF View Catalog

3D Models

TypeFileFormatLink
3dIVTABKR-0400-000.x_tSolidWorks >=2006View
cadIVTABKR-0400-000.stepSTEP AP214Download
$399.49
Configure Custom Length

Max Length: 3,657 mm

Ask about this product
Chat Now
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightlength
8.907 lbs400 mm
