Integral-V Linear Carriage - IVTAAWC-A20A0 Flat Plate Sea...

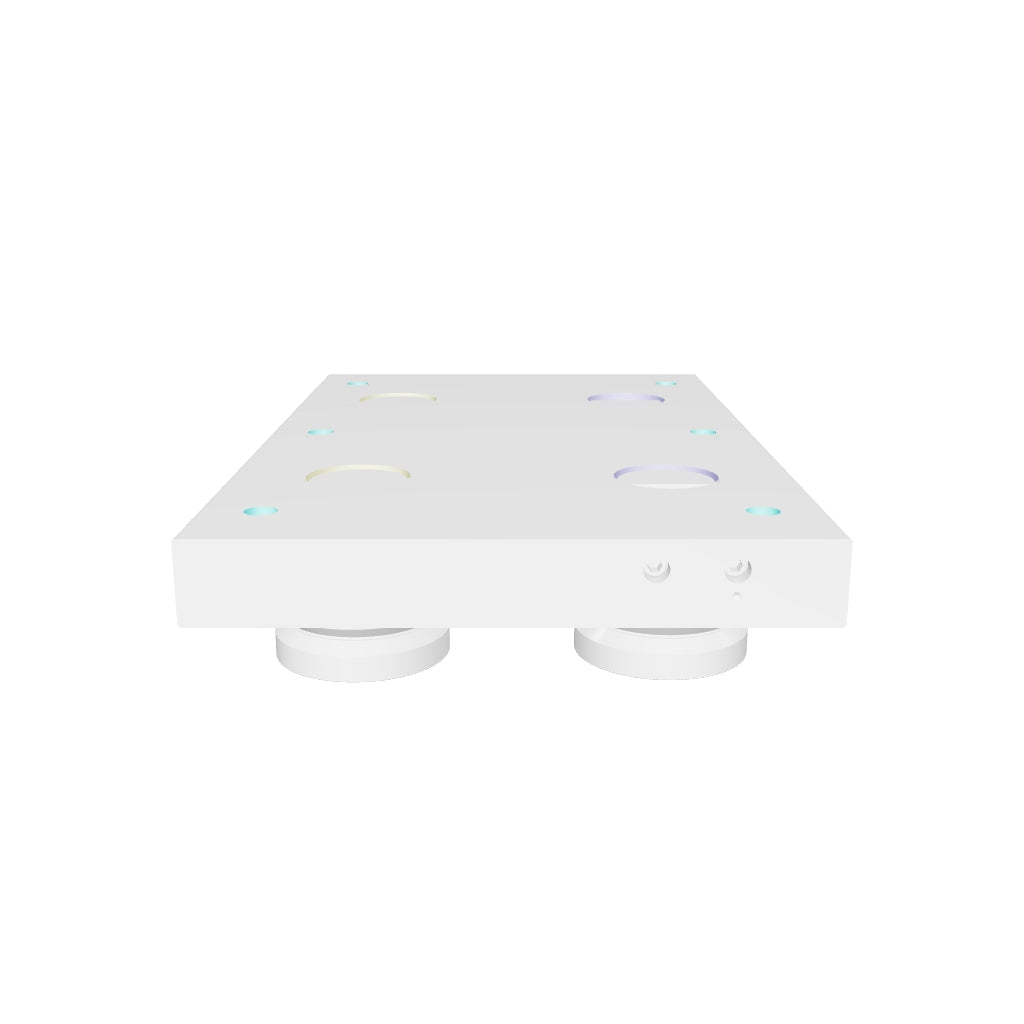

Integral-V Linear Carriage - IVTAAWC-A20A0 Flat Plate Sealed Standard

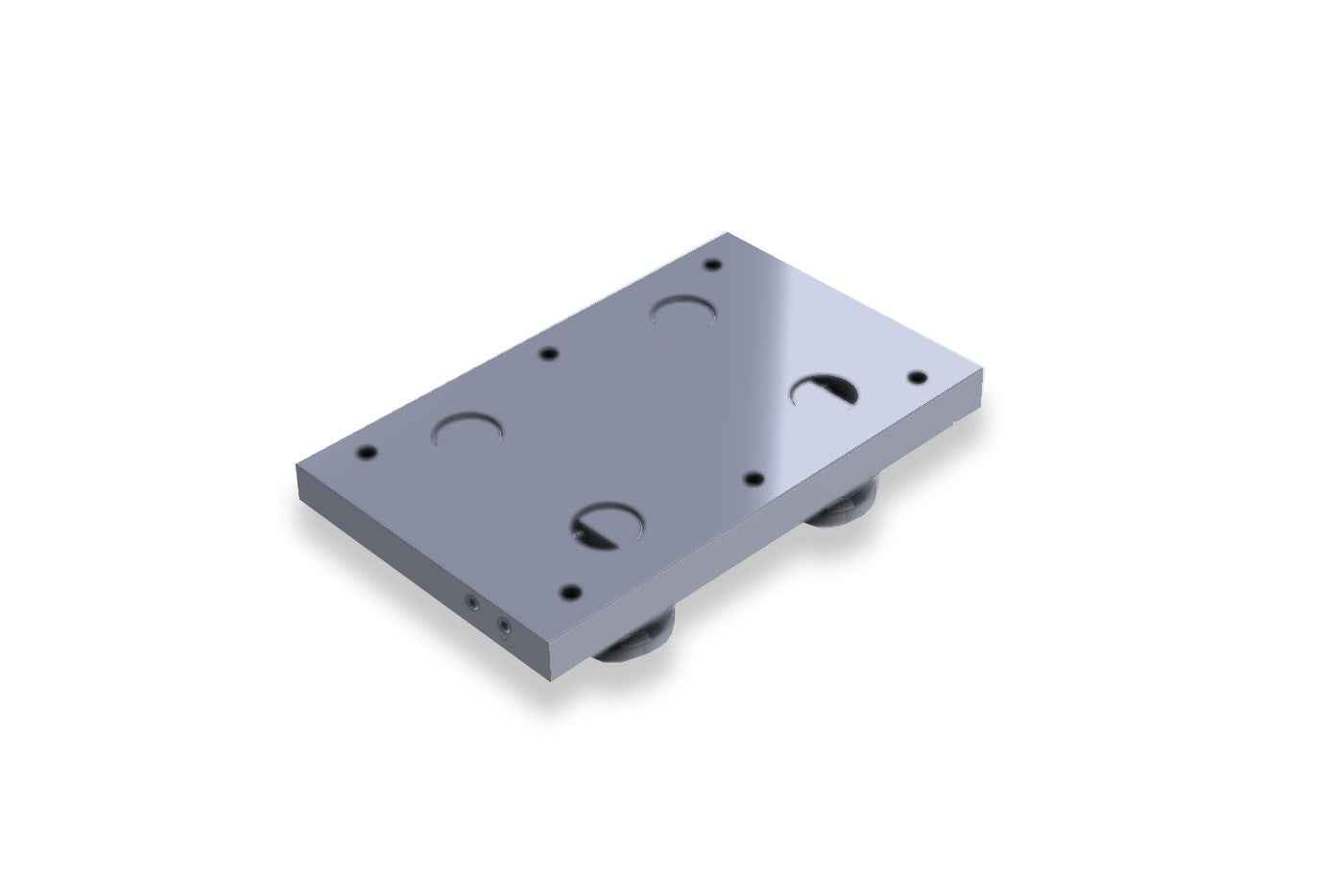

Integral-V Linear Carriage IVTAAWC-A20A0, a flat plate anodized aluminum carriage with sealed rollers and side (CAM) adjustable preload for use with IVTAAW series rails.

  • Compatible rails: IVTAAWR-0400-000, IVTAAWR-0800-000, IVTAAWR-1200-000
  • Carriage type: flat plate with taps
  • Roller type: sealed | No lubrication required
  • Preload: side (CAM) adjustable
  • Carriage length: standard
  • Note: lubrication is highly recommended for extended service life
  • Carriage only — rail sold separately

PDF View Catalog

3D Models

TypeFileFormatLink
3dIVTAAWC-A20A0.x_tSolidWorks >=2006View
cadIVTAAWC-A20A0.stepSTEP AP214Download
$264.28
Configure Custom Length

Max Length: 3,657 mm

Ask about this product
Chat Now
Dimensions
Videos
Resources

Product Dimensions

Approx. Weight
3.395 lbs
