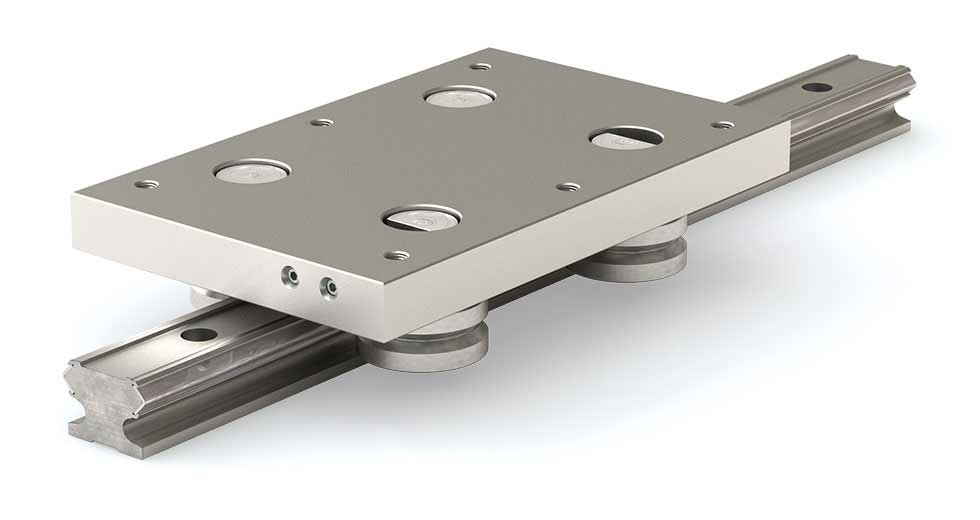

IVTAAW Linear Guide
- Maximum Horizontal Static Load: 1,250 lb (5,560 N)
- Max Speed: 10 m/s (394 in/s)
- Max Rail Length: 3650 mm (143.7 in)
- Rollers: Sealed & Lubricated for Life
- Rail Width: 35 mm
- Carriage Length: 200 mm (7.87 in)
IVTAAW Linear Guide Rails provide a cost-effective alternative to profile rail systems. Featuring a precision-machined, anodized aluminum rail with embedded hardened stainless steel races, the IVTAAW Linear Guide Rail is lightweight yet strong.
This design enables the system to handle high contact loads with ease. The embedded stainless steel races also eliminate the need for fasteners, reducing the number of mounting components.
IVTAAW linear guide offers roller carriages and light-weight heavy-duty rails that are precision-machined to avoid bowing, twisting, and warping.
- Precision-machined anodized aluminum rail with hardened embedded 420 stainless steel raceways reduce mounting components by up to 50%
- SIMO® machined for precision qualified rail surfaces within .002"
- Optimized extrusion design provides a large-scale structural member designed for high load capacities
- Accurate and repeatable with smooth and quiet operation
- For custom first hole offset, please configure
Filter
Cut to any length -- enter one to configure it. Maximum 3657 mm.
Products (4)
| Name | Type | Length (mm) | Width (mm) | Dynamic Radial Load (N) | Price | Actions |
|---|---|---|---|---|---|---|
| IVTAAWC-A20A0 | Carriage | 200 | 125 | 10020 | $264.28 | Shop |
| IVTAAWR-1200-000 | Rail | 1200 | 35 | - | $187.61 | Shop |
| IVTAAWR-0800-000 | Rail | 800 | 35 | - | $125.07 | Shop |
| IVTAAWR-0400-000 | Rail | 400 | 35 | - | $62.54 | Shop |
| Custom Length | Rail | mm | 35 | - | - | Configure |
AAW Linear Guide
|
Recommended Mounting Frame (when mounted to aluminum extrusion) |
||
|---|---|---|
| Frame Size (Typ) | Frame T-Slot Size | Screw Length* |
| 30 x 30 | 6 | M6 x 25 mm SHCS T-Nut Part No. 6100435 |
*Recommended screw length when bolting IVT rail to structural framing via a t-nut.
RAIL
CARRIAGE
ACCESSORIES
Patented Preload Adjustment (Standard) - Side CAM Adjustable
Lubrication Accessories
1. Lube Holder
2. Wheel Cover
UNIT DIMENSIONS
Specifications
| Series | # Rollers | Carriage Weight |
Static Load Ratings | Dynamic Load Ratings | Moments of Inertia | Rail Weight |
Max Rail Length |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Radial Foy |
Axial Foz |
Roll Mox |
Pitch Moy |
Yaw Moz |
Radial Fy |
Axial Fz |
Roll Mx |
Pitch My |
Yaw Mz |
Iy | Iz | |||||
| kg | N | N | N-M | N-M | N-M | N | N | N-M | N-M | N-M | CM4 | CM4 | kg/m | mm | ||
| IVTAAW | 4 | 1.54 | 8900 | 5560 | 39 | 278 | 445 | 10020 | 6150 | 93 | 308 | 501 | 2.8 | 3.8 | 1.65 | 3657 |
*Weight may vary slightly depending on carriage options.
Fz = Axial capacity
Fy = Radial capacity
Mx, My, Mz = Moment capacities
Conversions
newton (N) x 0.2248 = lbs.
(mm) millimeter x 0.0397 = inch
newton - meter (N-m) x 8.851 = in.-lbs.
