Integral-V Linear Rail - IVTAANR-1200-000 Length: 1200mm

Integral-V Linear Rail - IVTAANR-1200-000 Length: 1200mm

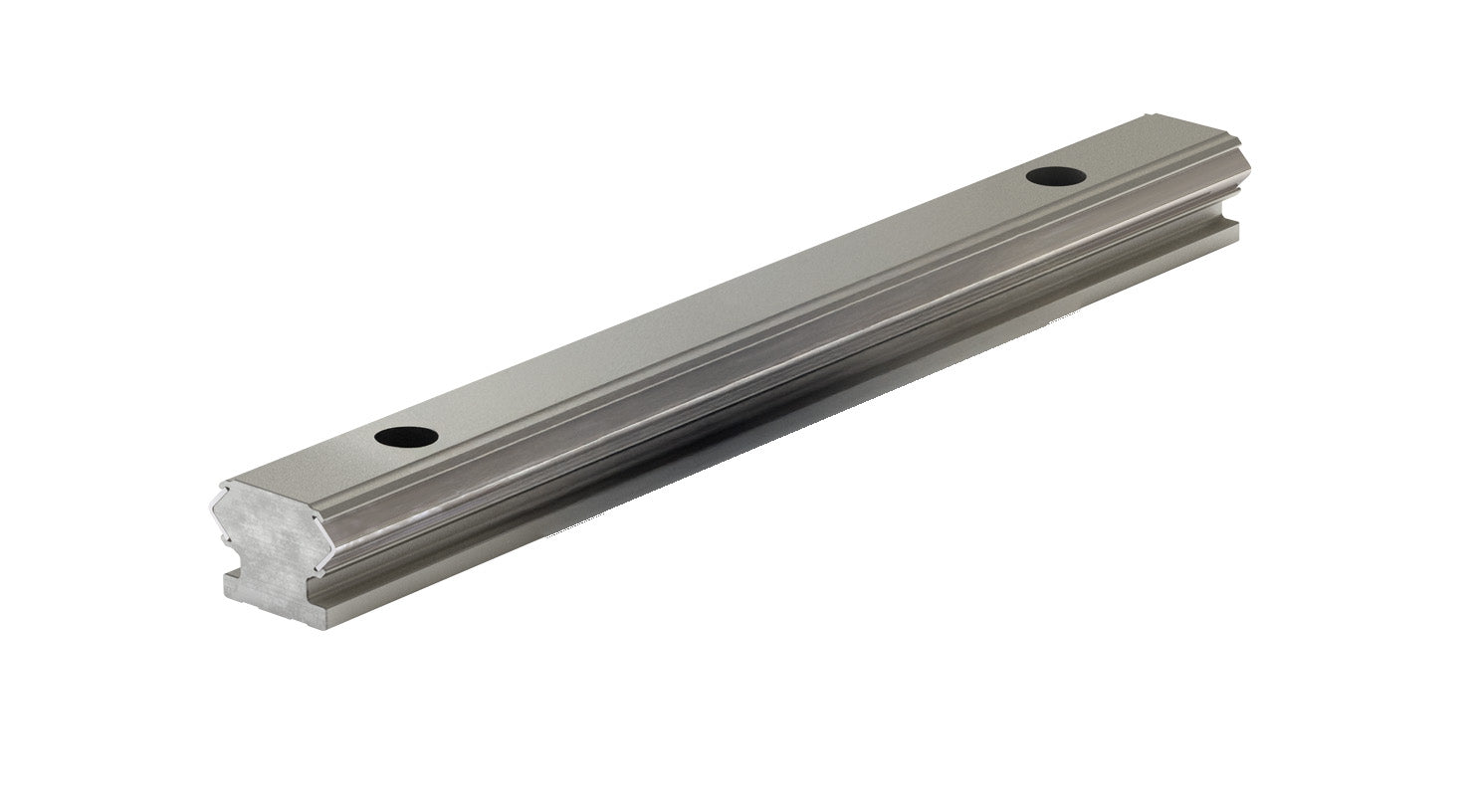

Integral-V Linear Rail IVTAANR-1200-000, a 1200mm anodized aluminum rail with hardened stainless steel V-raceways embedded directly into the rail profile. Eliminates fasteners and reduces mounting components by 40%. Compatible with IVTAANC-A20A0 carriage.

  • Compatible carriage: IVTAANC-A20A0
  • Rail length: 1200mm | Max rail length: 3,657mm
  • Hardened stainless steel V-raceways embedded in anodized aluminum
  • Eliminates fasteners — 40% fewer mounting components
  • End treatment: saw cut and deburr | Standard version
  • Specify Y-dimension (hole to end) at time of order
  • Rail only — carriage sold separately
