Integral-V Linear Rail - IVTAANR-0800-000 Length: 800mm

Integral-V Linear Rail - IVTAANR-0800-000 Length: 800mm

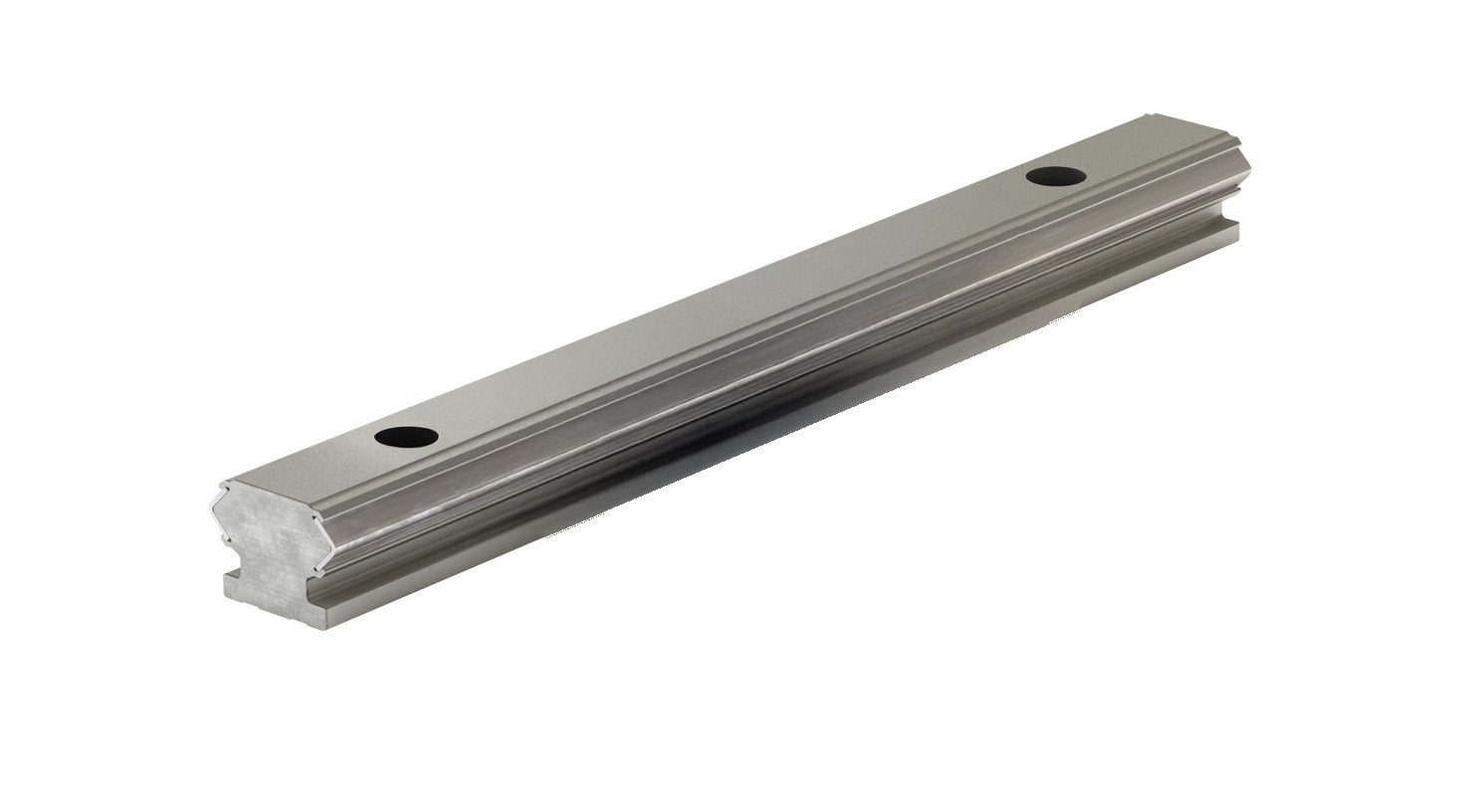

Integral-V Linear Rail IVTAANR-0800-000, a 800mm anodized aluminum rail with hardened stainless steel V-raceways embedded directly into the rail profile. Eliminates fasteners and reduces mounting components by 40%. Compatible with IVTAANC-A20A0 carriage.

  • Compatible carriage: IVTAANC-A20A0
  • Rail length: 800mm | Max rail length: 3,657mm
  • Hardened stainless steel V-raceways embedded in anodized aluminum
  • Eliminates fasteners — 40% fewer mounting components
  • End treatment: saw cut and deburr | Standard version
  • Specify Y-dimension (hole to end) at time of order
  • Rail only — carriage sold separately

PDF View Catalog

3D Models

TypeFileFormatLink
3dIVTAANR-0800-000.x_tSolidWorks >=2006View
cadIVTAANR-0800-000.stepSTEP AP214Download
$87.48
Configure Custom Length

Max Length: 3,657 mm

Ask about this product
Chat Now
Dimensions
Videos
Resources

Product Dimensions

Approx. Weightlength
2.293 lbs800 mm
