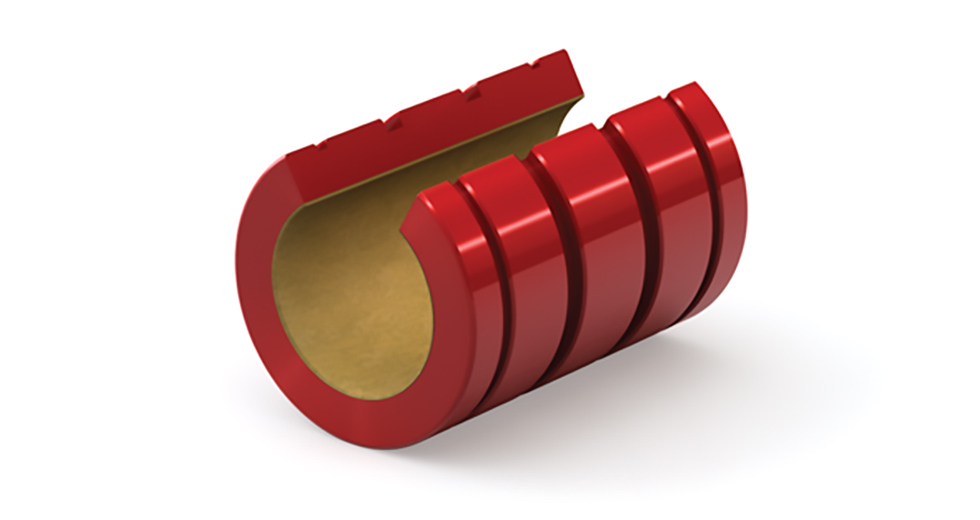

Plain Linear Bearing - FLN06 3/8″ Open
Open plain linear bearing with a 3/8" precision ID for round shafts, which provides a 0.0005" running clearance per side. The open anodized aluminum shell provides clearance for rail-supported shafting or profiled rails, while the bonded, self-lubricating FrelonGOLD® liner supports maintenance-free linear, rotational, and oscillating motion without grease. Built for harsh environments where extreme temperatures, dirt, vibration, shock loads, contamination, or washdowns can make rolling element bearings harder to maintain.
- Inch Series - Open anodized aluminum shell
- Precision running clearance of 0.0005" per side
- Optional liners: corrosive chemical resistant Frelon®J FDA Compliant Frelon®W
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- Vibration Damping: Ensures smooth and quiet operation
- Straight outer diameter (crowned ODs have FLA part numbers)
- Click "Configure" for the option of a stainless steel shell
Available Sizes:
Additional Details
Open Linear Plain Bearing Details:
Product Dimensions
| Approx. Weight | width | length | height |
|---|---|---|---|
| 0.01 lbs | 0.62 in | 0.87 in | 0.56 in |
Additional Dimensions
