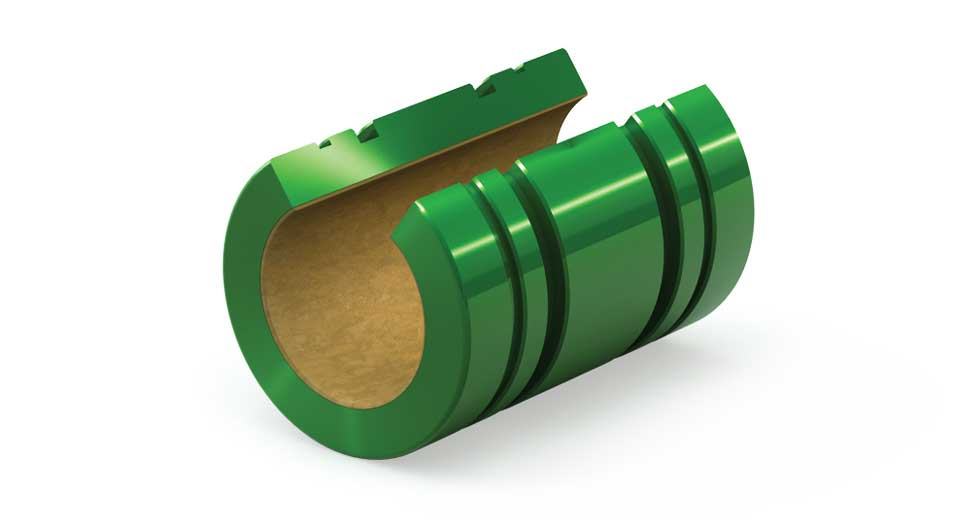

JIS Plain Linear Bearing - FJCN08 8mm Compensated ID - Open
JIS plain linear bearing with an 8mm ID, open, compensated with 0.0015" running clearance per side. Its green anodized aluminum shell ensures robust durability, while the FrelonGOLD® liner delivers self-lubricating, maintenance-free performance with vibration damping. The open shell is tailored for rail-supported shafting.
- Straight outer diameter (OD)
- Meets JIS metric tolerance standards for precision and compatibility
- Optional Frelon® J or W liners for corrosive environments or FDA compliance
- Handles static loads up to 741,331 N (~166,537 lbs) for heavy-duty applications
- Operates effectively from -240°C to 204°C (-400°F to 400°F)
- Self-lubricating bearings just brush away dirt
- Includes optional urethane seals (≥20mm ID), O-rings, or external lubrication
Additional Details
Open Linear Plain Bearing Details:
Product Dimensions
| weight | width | length | height |
|---|---|---|---|
| 0.01 lbs | 0.59 in | 0.94 in | 0.54 in |
Additional Dimensions
