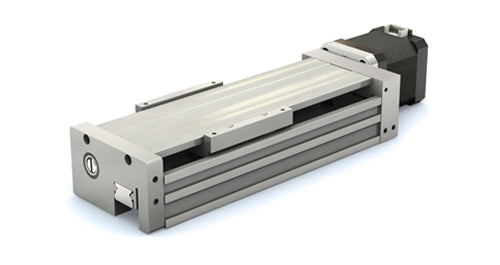

Compact Linear Actuator - Lead Screw CSLSM10AGXR3A1-2LT-0130-0 w/ NEMA 17 Motor, Length: 130mm

Compact Linear Actuator, lead screw driven, of 130 mm rail length with a low-profile 23 mm height design for tight spaces. This actuator features a 10mm diameter lead screw with a 2 mm lead, a NEMA 17 motor and a rectangular Constant Force Anti-Backlash nut. It incorporates Gliding Surface Technology (GST) with a self-lubricating FrelonGold PTFE liner under a plain bearing carriage, sliding on an anodized aluminum linear rail, ensuring maintenance-free operation under extreme conditions of temperature, particulates, or vibration.

• NEMA 17 Single Stack Motor - Screw Diameter is 10mm
• Rectangular Constant Force Anti-Backlash lead screw nut ensures play-free motion
• Lead screws are CNC precision rolled - lead accuracy of 0.003”/ft (76 μm/300 mm)

• GST eliminates metal-to-metal contact, reducing wear and failure
• GST systems must comply with the 2:1 ratio rule
• Compact Series features low profile linear actuators for tight spaces

• Optional profile rail offers higher rigidity and supports cantilevered loads

• Ideal for lab automation, medical, and robotics
