Compact Linear Actuator - Lead Screw CSLSM06AGXR3A1-2SN-0200-0 w/ NEMA 17 Motor Length: 200mm

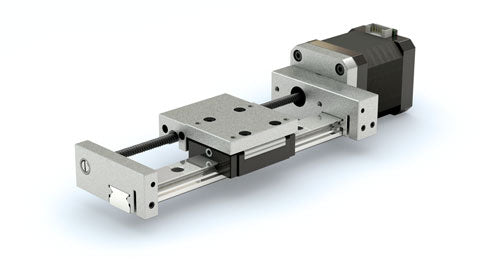

Compact Linear Actuator, lead screw driven, of 200mm rail length with a low-profile 23mm height design for tight spaces. This actuator features a 6mm diameter lead screw with a 2mm lead, a rectangular Constant Force Anti-Backlash nut, and a NEMA 17 single stack motor. It incorporates Gliding Surface Technology (GST) with a self-lubricating FrelonGold PTFE liner in a plain bearing carriage, sliding on an anodized aluminum linear rail, ensuring maintenance-free operation under extreme conditions of temperature, particulates, or vibration.

  • NEMA 17 Single Stack Motor - Screw Diameter is 6mm
  • Rectangular Constant Force Anti-Backlash lead screw nut ensures play-free motion
  • Lead screws are CNC precision rolled - lead accuracy of 0.003”/ft (76 μm/300 mm)
  • GST eliminates metal-to-metal contact, reducing wear and failure
  • GST systems must comply with the 2:1 ratio rule
  • Compact Series features low profile linear actuators for tight spaces
  • Optional profile rail offers higher rigidity and supports cantilevered loads
  • Ideal for lab automation, medical, and robotics
$648.71
Configure Custom Features
Details
Dimensions
Videos
Resources

Product Details

Part Number CSLSM06AGXR3A1-2SN-0200-0
Series CS Compact Series
Product Type Compact Lead Screw Linear Actuator
Max Horizontal Load 5590(N)
Max Stroke 135.00mm
Screw Type Lead Screw
Screw Diameter 06mm
Screw Lead 2mm
Thread Direction Right
Drive End Option Integrated Motor Screw
Motor Option NEMA17 Single Stack
Nut Anti-Backlash Nut
Carriage Type Profile Rail
Cover No Cover
Rail Length 200mm
Num Of Carriages 1

Product Dimensions

weightwidthlengthheight
5.97 lbs0.74 ft200 mm0.85 ft
