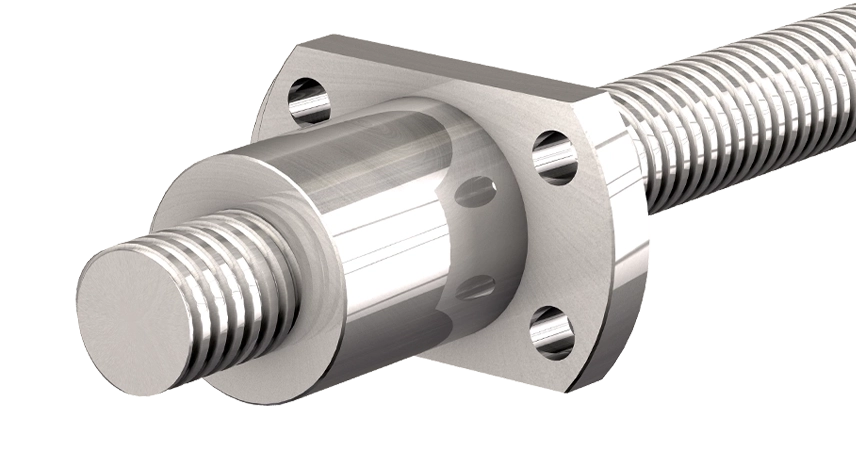

Ground Ball Screw BSR1202AP5G-0240-FLS-NND-NNN-N Flanged Nut, 12mm Dia. x 2mm Lead, Length: 240mm
Ground Ball Screw 240mm long, 12mm diameter, 2mm lead is made using a flanged nut mounted on the left end and ground to a Grade 5 accuracy for accurate, repeatable positioning in general-purpose automation applications. Choose a ground ball screw for applications requiring high positioning accuracy, minimal backlash, and smooth, repeatable linear motion to exactly fit your application needs.
- Length: 240mm
- Diameter: 12mm
- Lead: 2mm
- Nut Style: Flanged Nut
- Accuracy Grade: Grade 5
- Dynamic Load Rating (Ca): 2100 N
- Static Load Rating (C0a): 4900 N
