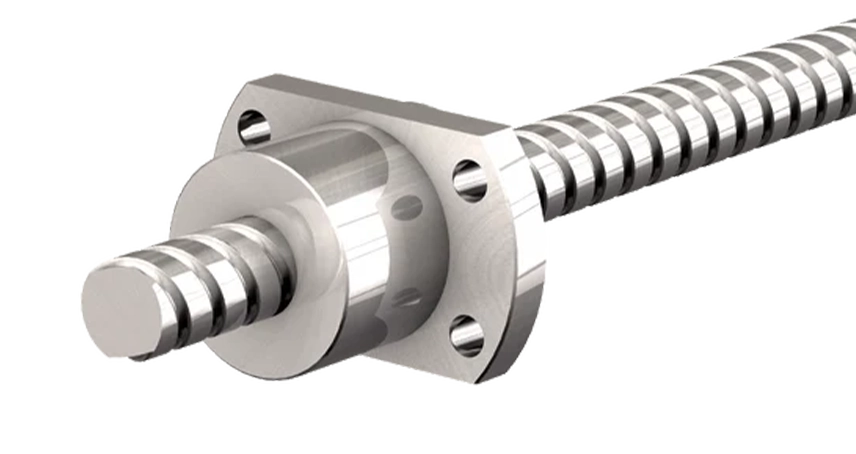

Ground Ball Screw BSR0808AP5G-0160-OLS-NND-NNN-N Offset Flange Nut, 8mm Dia. x 8mm Lead, Length: 160mm
Ground Ball Screw 160mm long, 8mm diameter, 8mm lead is made using an offset flange nut mounted on the left end and ground to a Grade 5 accuracy for accurate, repeatable positioning in general-purpose automation applications. Choose a ground ball screw for applications requiring high positioning accuracy, minimal backlash, and smooth, repeatable linear motion to exactly fit your application needs.
- Length: 160mm
- Diameter: 8mm
- Lead: 8mm
- Nut Style: Offset Flange Nut
- Accuracy Grade: Grade 5
- Dynamic Load Rating (Ca): 2200 N
- Static Load Rating (C0a): 3800 N
