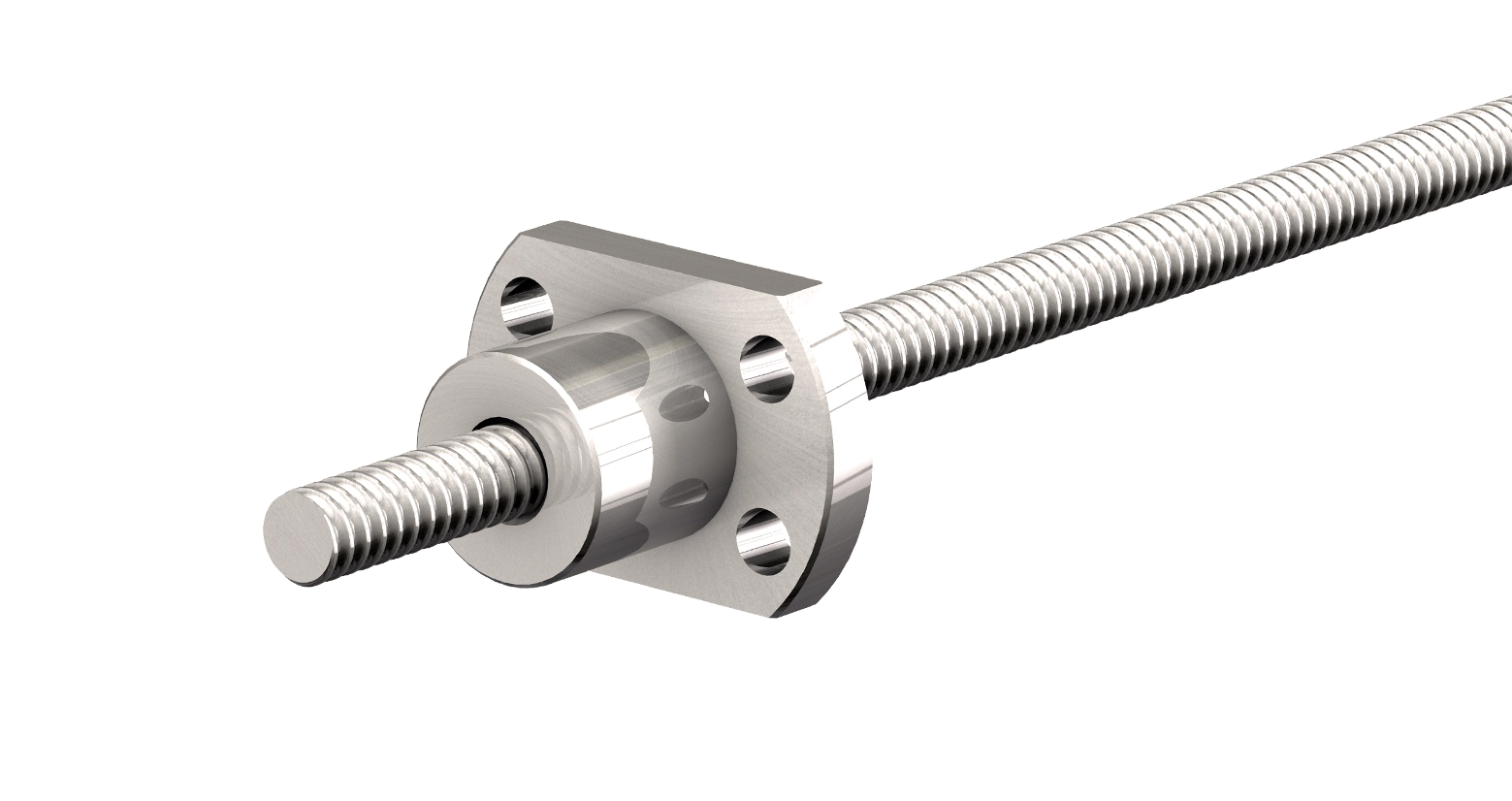

Ground Ball Screw BSR0401AP5G-0080-FLS-NND-NNN-N Flanged Nut, 4mm Dia. x 1mm Lead, Length: 80mm
Ground Ball Screw 80mm long, 4mm diameter, 1mm lead is made using a flanged nut mounted on the left end and ground to a Grade 5 accuracy for accurate, repeatable positioning in general-purpose automation applications. Choose a ground ball screw for applications requiring high positioning accuracy, minimal backlash, and smooth, repeatable linear motion to exactly fit your application needs.
- Length: 80mm
- Diameter: 4mm
- Lead: 1mm
- Nut Style: Flanged Nut
- Accuracy Grade: Grade 5
- Dynamic Load Rating (Ca): 420 N
- Static Load Rating (C0a): 570 N
