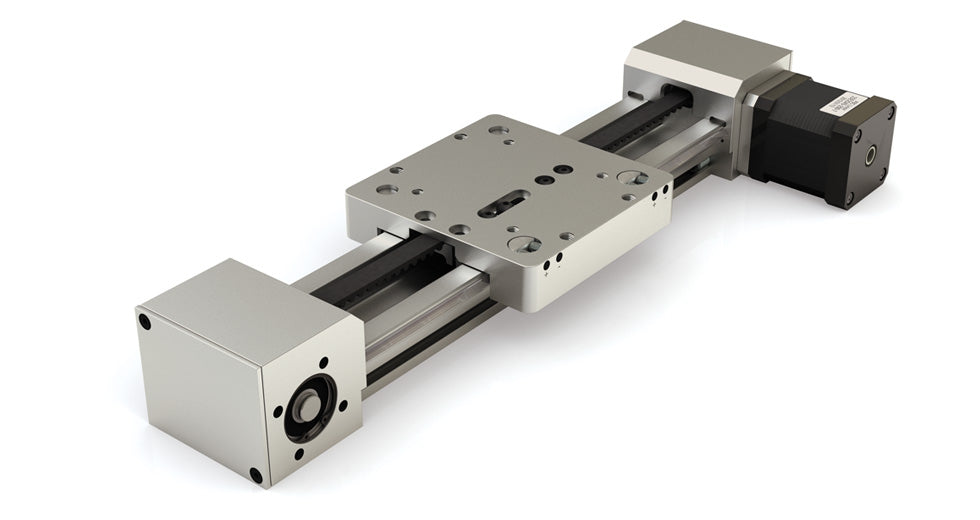

Belt Driven Linear Actuator - V-Wheel UGT040D-B21-0200-BD1B4-00L0-0 V-Rail Length: 200mm w/ NEMA 23 Motor
Belt-driven linear actuator with a 200mm length of V-rail and a carriage equipped with stainless steel sealed V-wheels. This part of the SIMO UG Tall Profile Series includes a NEMA 23 motor. The SIMO process involves machining aluminum extrusions with synchronized cutters in one pass, ensuring rails with 2x better flatness and 0.050 mm tolerances.
- Belt-driven actuator: 200mm V-rail with stainless steel sealed V-wheels
- Tall Profile
- NEMA 23 motor
- SIMO process: Machining for 2x better flatness and 0.050 mm tolerances
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | UGT040D-B21-0200-BD1B4-00L0-0.x_t | SolidWorks >=2006 | Download |
