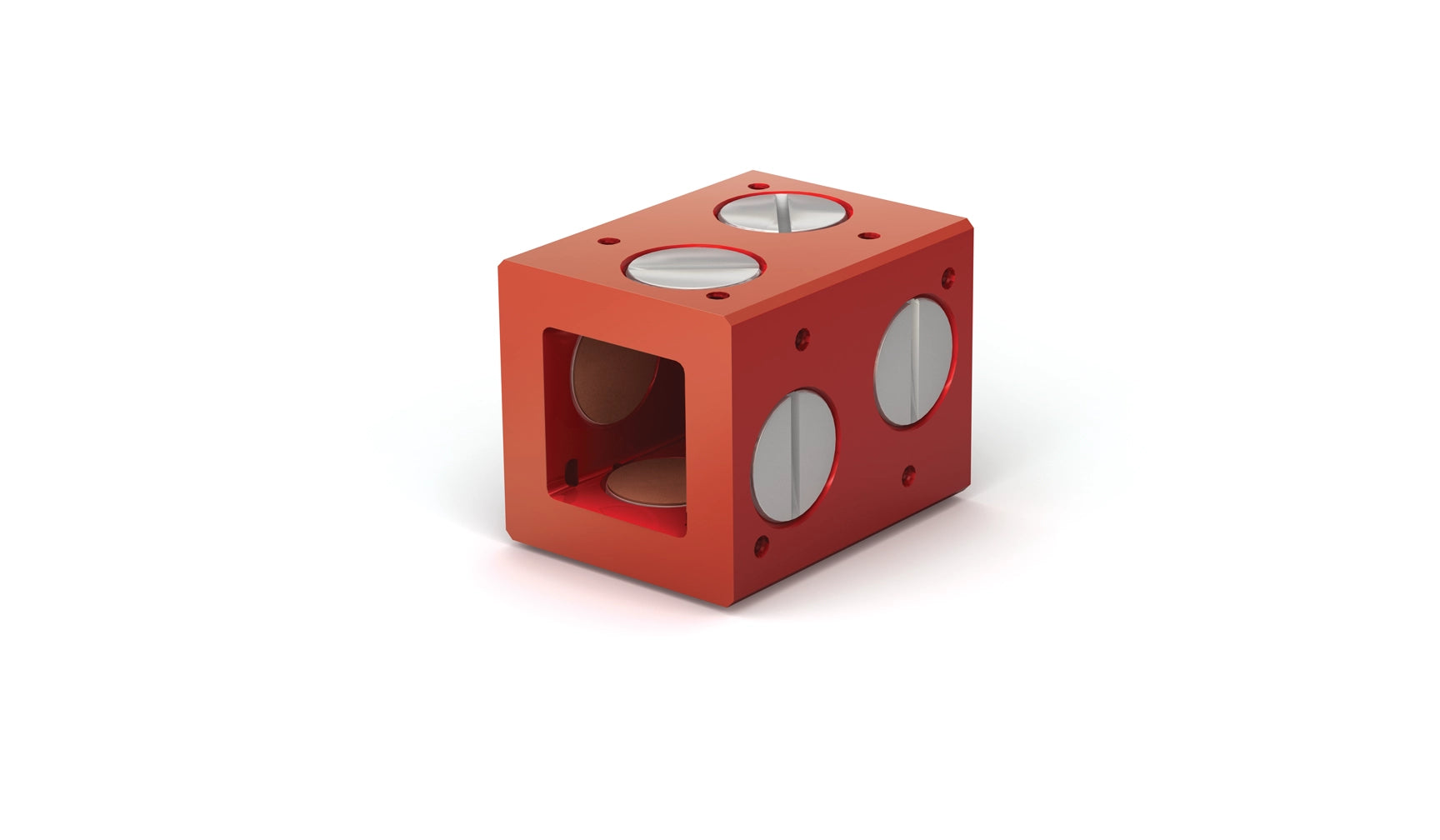

Square Linear Bearing SB164E ID: 1″ Length: 2.25″ w/ 4-sided Adjustable Frelon plugs for Stainless Steel Shafts
Square Linear Bearing with a 1" diameter, 2.25" length, featuring 2 adjustable Frelon®J self-lubricating plugs on each of the 4 sides of the bearing for smooth, corrosion-resistant sliding on a stainless steel square shaft. Crafted from anodized aluminum, this low-maintenance bearing excels in harsh environments and is often used as a durable wear cushion. The extended bearing length enables longer cantilever arms.
- 8 adjustable Frelon®J plugs secured with removable Loctite threadlocker
- Plug Options: Standard APN16E plug with Frelon®J for stainless steel shafting; APN16 plug with FrelonGOLD® available for carbon steel shafts
- Self-Lubricating: Simplicity® technology withstands harsh environments
- Load Capacity: Max static load of 450 lb per Frelon®J plug
- Bearing Surface Area: 0.300 in² for efficient load distribution
-
Cantilevered loads: The 2:1 ratio applies, as with round linear bearings
