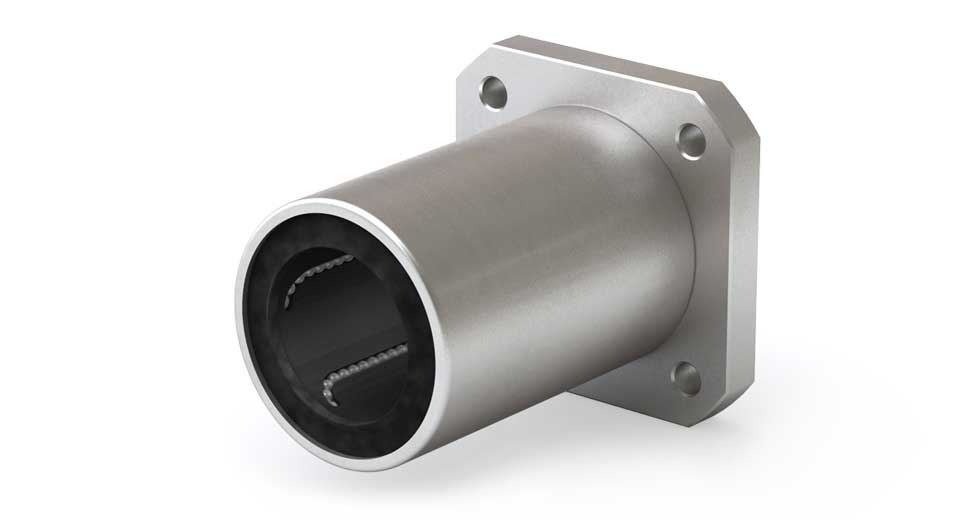

Linear Ball Bearing - Square Flange EPK30G 30mm
Square-flanged linear ball bearing, 30mm ID ISO metric, standard-sized, end mount, with a closed heat-treated alloy steel shell for durability on end-supported shafts. The square flange provides secure four-bolt mounting, while recirculating hardened steel balls and a low coefficient of friction support smooth, high-speed travel. A resin retainer polymer cage helps reduce operating noise. Linear ball bearings perform well in cantilevered applications because they handle overhung loads and offset drive forces without the same 2:1 binding limitation as plain bearings. Standard double seals provide added protection at no extra cost.
- ISO Metric Series - Closed shell for end-supported shafts
- Handles cantilevered loads better than plain bearings
- Temperature Range: -4/+176°F (-20/+80°C)
- Variant ID Sizes from 1/4" to 2” Inch Series, 5mm to 50mm Metric
- Size interchangeable with industry standards
- Low Coefficient of Friction: Ensures speed
- Heat Treated Alloy Steel Shell provides durability
- Resin Retainer polymer cage educes noise
- Double Seals protect at no additional cost
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | EPK30G.x_t | SolidWorks >=2006 | Download |
