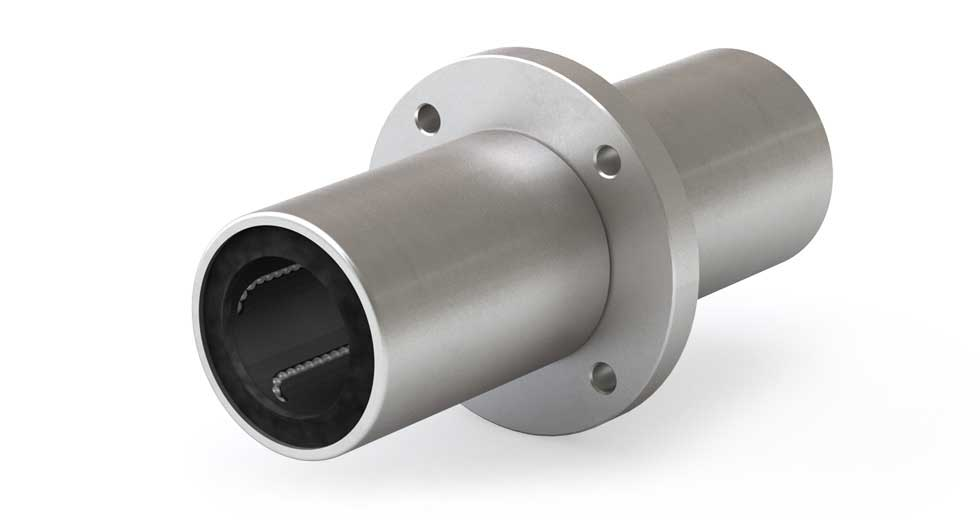

Double Linear Ball Bearing EPFC20G 20mm Round Flanged Center Mount

Double-sized round-flanged linear ball bearing, 20mm ID, center mount, with a long heat-treated alloy steel shell for higher load and moment capacity. Equivalent to two standard-sized bearings mounted back to back, the center flange provides balanced mounting, while the round shape allows flexible rotational positioning and avoids corner interference. Recirculating hardened steel balls, a low coefficient of friction, and a resin retainer polymer cage support smooth, quiet, high-speed travel. Linear ball bearings perform well in cantilevered applications without the same 2:1 binding limitation as plain bearings. Standard double seals provide added protection at no extra cost.

• Round Flanged Center Mount
• ISO metric ID size
• Double size is the equivalent of two standard-sized bearings mounted back to back
• Temperature Range: -4/+176°F (-20/+80°C)
• ID Sizes: Available from 1/4" to 2” Inch Series,  8mm to 50mm Metric Series
• Static Load Capacities: Up to 1700 lb (7900 N)
• Dynamic Load Capacities: Up to 850 lb (3800 N)
• Size interchangeable with industry standards and Simplicity plain linear bearings
• Low Coefficient of Friction: Ensures smooth operation
• Heat Treated Alloy Steel Shell: Provides durability
• Resin Retainer Polymer Cage: Reduces noise
• Double Seals: Included as standard at no additional cost
