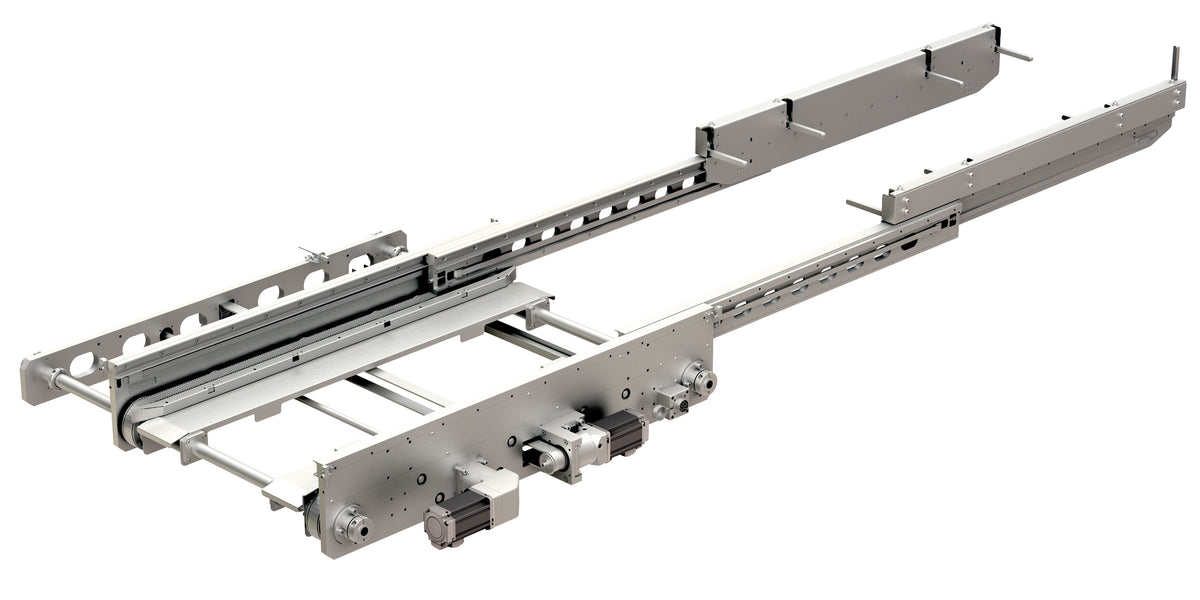

Adjustable Depth Steel Telescopic Fork with Servo Motor STF-AD-04 Stroke: 1,444 mm
Adjustable depth telescoping fork with two integrated 400W AC servo motors, providing direct powered extension and retraction without an external actuator. Sized to pick and place double-row totes from 200 mm to 600 mm wide, the STF-AD-04 pairs two PBC Linear SDP telescoping rails with a compact aluminum-alloy and formed-steel fork structure and position sensors that extends and retracts in both directions across a 1,444 mm stroke. Precision rail guidance keeps sag deflection to 18 mm or less at full extension, even under a 50kg load. This configuration suits shuttle vehicles and AGVs handling mixed-size container storage. Order STF-AD for the same fork without a motor, for use with your own actuation.
- Configuration: Adjustable Depth
- Applicable Case Size: 600 × (200–600) mm
- Fork Dimension (L×W×H): 1,003 × 1,016 × 233 mm
- Max Stroke: 1,444 mm
- Max No-Load Speed: 1.6 m/s
- Max Load Capacity (Fy): 50 kg
- Fork Weight: 63.8 kg
- Max Sag Deflection: ≤ 18 mm at full extension
- Position Sensors: QTY 4
- Extension Direction: Bidirectional — extends and retracts both directions from the carriage
- Material: Aluminum alloy and formed hardened-steel construction
- Drive Motor: 400W AC servo motor (QTY 2)
- Lead Time: ~12 weeks, standard
