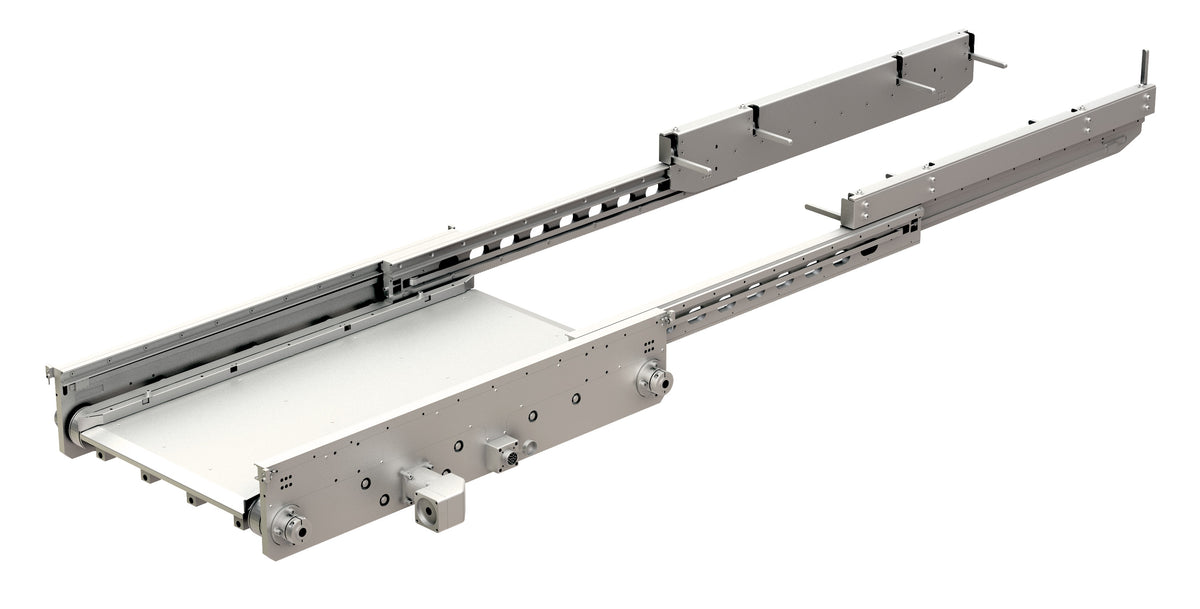

Double Depth Steel Telescopic Fork STF-2D Stroke: 1,444 mm
Double depth telescoping fork designed to pick and place two rows of 600 × 400 mm standard totes in a single reach, using independent finger sets to service both positions. The STF-2D pairs two PBC Linear SDP telescoping rails with a compact aluminum-alloy and formed-steel fork structure and position sensors, extending and retracting in both directions from the carriage across a 1,444 mm stroke. Precision rail guidance keeps sag deflection to 16 mm or less at full extension, even under a 50kg load. This configuration suits shuttle vehicles, container-storage AGVs, and lightweight stackers handling double-depth tote storage. Order STF-2D-04 for the same fork with an integrated 400W AC servo motor.
- Configuration: Double Depth
- Applicable Case Size: 600 × 400 mm
- Fork Dimension (L×W×H): 1,020 × 723 × 233 mm
- Max Stroke: 1,444 mm
- Max No-Load Speed: 1.6 m/s
- Max Load Capacity (Fy): 50 kg
- Fork Weight: 55 kg
- Max Sag Deflection: ≤ 16 mm at full extension
- Position Sensors: QTY 4
- Extension Direction: Bidirectional — extends and retracts both directions from the carriage
- Material: Aluminum alloy and formed hardened-steel construction
- Drive: None — see STF-2D-04 for an integrated 400W AC servo motor
- Lead Time: ~12 weeks, standard
