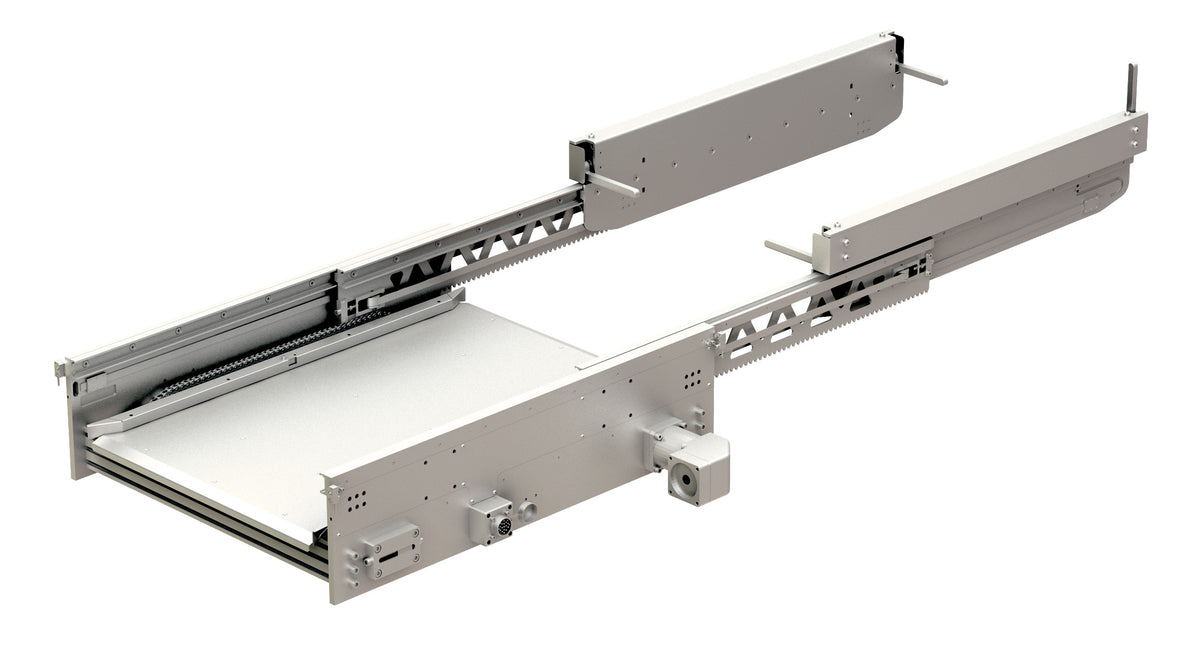

Single-Depth Miniload ASRS Telescopic Fork STF-1D for Totes, Stroke: 910 mm
Single-depth steel miniload ASRS telescopic fork for automated storage and retrieval of standard 600×400mm totes. Designed for miniload ASRS shuttle vehicles, tote-handling AGVs, and lightweight stackers, the STF-1D enables efficient single-row tote storage and retrieval with customer-supplied actuation. The bidirectional fork combines two PBC Linear SDP telescoping rails with a compact aluminum-alloy and formed hardened-steel structure and three position sensors. Its 910mm stroke allows extension and retraction from either side of the carriage, while precision rail guidance limits sag deflection to 10mm or less at full extension under a 50kg load. Order STF-1D-04 for the same telescopic fork with an integrated 400W AC servo motor.
- Single-depth Miniload ASRS telescopic fork for automated tote storage/retrieval
- Picks, places and positions a single row of standard 600×400mm totes
- Use with Miniload ASRS shuttle vehicles, tote-handling AGVs & lightweight stackers
- Bidirectional extension and retraction from either side of the carriage
- Two PBC Linear SDP telescoping rails provide guided extension and load support
- Applicable tote size: 600×400mm
- Fork dimensions (L×W×H): 783×675×242mm
- Maximum stroke: 910mm
- Maximum no-load speed: 2m/s
- Maximum load capacity (Fy): 50kg
- Fork weight: 36.4kg
- Maximum sag deflection: ≤10mm at full extension
- Position sensors: 3
- Construction: Aluminum alloy and formed hardened steel
- Customer-supplied actuation required; motor not included
- STF-1D-04 available with an integrated 400W AC servo motor
- Applications: Miniload ASRS, warehouse shuttles, tote AGVs and automated storage
- Standard lead time: Approximately 12 weeks
