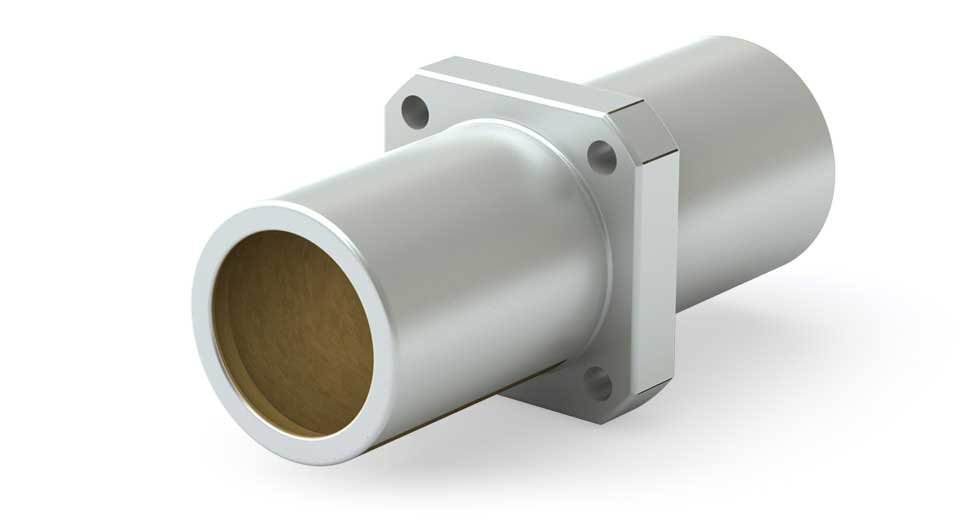

Plain Linear Bearing CFPM08C 8mm ID Square Flange Center, Double Wide, Compensated
Double plain linear bearing, 8mm ID, square center flange, compensated running clearance. This Simplicity® bearing uses a self-lubricating FrelonGOLD® liner bonded directly to the bore of a sturdy aluminum body, without a separate bearing insert. The result is maintenance-free, oil-free sliding performance in extreme conditions such as heat, dirt, and vibration, where ball bearings often fail. The double size is equivalent to two standard-sized bearings back-to-back, providing a longer bearing surface for added support, while the center square flange allows stable bolt-down mounting. Compensated clearance provides a looser running fit than precision clearance, which may favor speed and smoother travel over the tightest possible shaft fit.
- Self-Lubricating Bearing Liner: FrelonGOLD® is standard
- Optional liners include Frelon® W (FDA compliant) & Frelon® J
- Outer Shell: Anodized Aluminum Alloy
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- Maximum Speed: Up to 8 m/s (315 in/s)
- Vibration Damping: Ensures smooth and quiet operation
