Sleeve Bearings - Unflanged
Ways to Order
Linear Sleeve Bearing with a 1/4" inner diameter, 1/2" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$14.13
Linear Sleeve Bearing with an 8mm ID, a 12mm OD and a 12mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating..
$11.82
Linear Sleeve Bearing with a 3/4" inner diameter, 1" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$18.32
Linear Sleeve Bearing with a 1" inner diameter, 1.5" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$29.04
Linear Sleeve Bearing with a 3/8" inner diameter, 3/4" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$14.53
Linear Sleeve Bearing with a 1/4" inner diameter, 3/8" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$10.70
Linear Sleeve Bearing with a 1/2" inner diameter, 1" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$16.25
Linear Sleeve Bearing with a 2" inner diameter, 3" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$90.85
Linear Sleeve Bearing with a 1.5" inner diameter, 2" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$49.26
Linear Sleeve Bearing with a 3/16" inner diameter, 1/4" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating bearing liner is FrelonGold®, ensuring reliable performance in extreme environments, including heat, dirt, and oscillation, without risk of catastrophic failure...
$10.36
Linear Sleeve Bearing with a 16mm ID, 20mm OD and a 16mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$16.88
Linear Sleeve Bearing with a 6mm ID, 10mm OD and a 6mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$12.89
Linear Sleeve Bearing with an 8mm ID, a 12mm OD and an 8mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating..
$11.39
Linear Sleeve Bearing with a 1.75" inner diameter, 3" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$77.14
Linear Sleeve Bearing with a 5/8" inner diameter, 3/4" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$15.74
Linear Sleeve Bearing with a 1/2" inner diameter, 3/4" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$16.10
Linear Sleeve Bearing with a 1/4" inner diameter, 1/4" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating bearing liner is FrelonGold®, ensuring reliable performance in extreme environments, including heat, dirt, and oscillation, without risk of catastrophic failure...
$10.76
Linear Sleeve Bearing with a 25mm ID, 30mm OD and a 30mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$26.66
Linear Sleeve Bearing with a 3/4" inner diameter, 1.25" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$18.10
Linear Sleeve Bearing with a 1.25" inner diameter, 2" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$42.47

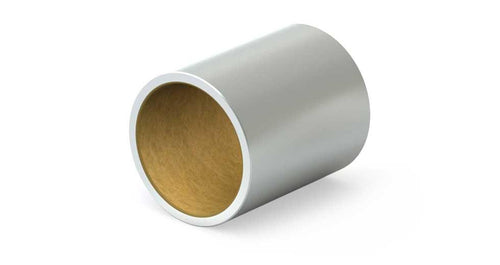

Sleeve bearings minimize friction between shafts and machinery parts. The sleeve bushings below are unflanged for tight spaces, and feature the renowned self-lubricating FrelonGOLD® liner that allows maintenance-free linear and rotational movement and vibration dampening. They excel in harsh, dirty, shock-loaded, or high-temperature environments (-400°F to +400°F). The part numbers in this unflanged category are PS (inch) and PSM (metric).
- Unflanged bushing part numbers are PS (inch) and PSM (metric)
- Flanged bushing part numbers are PSF (inch) and PSFM (metric).
- Optional liners: corrosive chemical-proof Frelon®J and FDA-compliant Frelon®W
- Bearing shell is upgradeable to stainless steel for FDA compliance
- Temperature Range: -400° F to 400° F (-240° C to 204° C)
- Static Load Capacities up to 31,000 lb (137 kN)
- Bushing ID sizes: 4.76 mm (0.19 in) to 76.2 mm (3 in)
