Sleeve Bearings - Unflanged
Ways to Order
Linear Sleeve Bearing with a 1/2" inner diameter, 1/2" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$15.42
Linear Sleeve Bearing with a 30mm ID, 40mm OD and a 35mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$32.64
Linear Sleeve Bearing with a 25mm ID, 30mm OD and a 30mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$26.66
Linear Sleeve Bearing with a 3" inner diameter, 3.5" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$159.28
Linear Sleeve Bearing with a 3/4" inner diameter, 1.25" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$18.10
Linear Sleeve Bearing with a 7/16" inner diameter, 3/4" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$13.88
Linear Sleeve Bearing with a 3/8" inner diameter, 1/2" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$14.13
Linear Sleeve Bearing with a 3/16" inner diameter, 1/2" length and closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Temperature..
$11.55

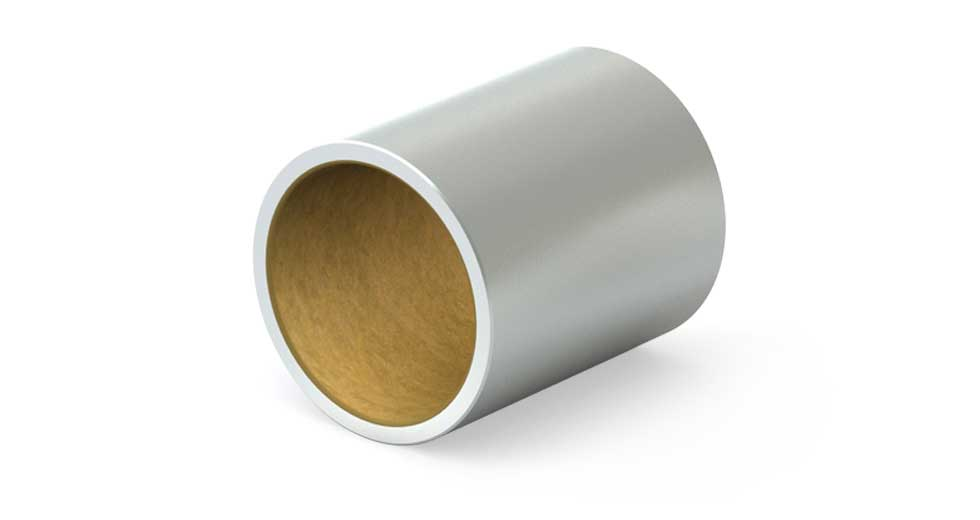

Linear Sleeve Bearing with a 60mm ID, 70mm OD and a 60mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$107.45
Linear Sleeve Bearing with a 50mm ID, 60mm OD and a 35mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$69.33
Linear Sleeve Bearing with a 50mm ID, 60mm OD and a 50mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$73.95
Linear Sleeve Bearing with a 35mm ID, 45mm OD and a 50mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$59.63
Linear Sleeve Bearing with a 40mm ID, 50mm OD and a 40mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$69.19
Linear Sleeve Bearing with a 40mm ID, 50mm OD and a 30mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$42.38
Linear Sleeve Bearing of 35mm ID, 45mm OD and 40mm length defining a closed aluminum alloy shell with the renowned maintenance-free, self-lubricating FrelonGOLD® liner that allows linear, rotational and oscillating movement and excels in extreme environments, including heat, dirt, and oscillation, eliminating the risk of catastrophic failure. Bushing is unflanged,..
$62.16
Linear Sleeve Bearing with a 30mm ID, 35mm OD and 30mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the risk..
$53.33
Linear Sleeve Bearing with a 30mm ID, 40mm OD and a 50mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$59.17
Linear Sleeve Bearing with a 35mm ID, 45mm OD and a 25mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$54.44
Linear Sleeve Bearing with a 30mm ID, 35mm OD and a 25mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$52.36
Linear Sleeve Bearing with a 25mm ID, 35mm OD, and a 25mm length, unflanged with a closed aluminum alloy shell. This maintenance-free Simplicity® plain bushing is designed for both linear and rotational movement. The self-lubricating FrelonGold® bearing liner guarantees performance in extreme environments, including heat, dirt, and oscillation, eliminating the..
$45.46
Sleeve bearings, also called sleeve bushings, are extremely thin-walled plain bearings designed to minimize friction and support smooth motion between shafts and surrounding machinery components; depending on the bearing design, they may use a bonded low-friction liner along the inner diameter or a self-lubricating material throughout. Sleeve bushings from PBC Linear use a bonded FrelonGOLD® liner along the inner diameter to provide low-friction, self-lubricating performance for linear, rotary, or oscillating movement. Some sleeve bearings include a flange, which is a raised rim or shoulder at one end of the bearing used for positioning, retention, or light thrust support. The products in this subcategory are unflanged, meaning they have a straight cylindrical profile without that flange. These unflanged sleeve bushings are designed for tight spaces and allow maintenance-free linear and rotational movement while helping reduce friction, wear, and vibration. They are well suited for harsh, dirty, shock-loaded, or high-temperature environments, with an operating temperature range of -400°F to +400°F (-240°C to +204°C).
The unflanged product category includes PS inch-series bushings and PSM metric-series bushings, while flanged bushing part numbers are PSF for inch sizes and PSFM for metric sizes. Available bushing ID sizes range from 4.76 mm (0.19 in) to 76.2 mm (3 in). Optional liner materials include Frelon®J for corrosive chemical resistance and Frelon®W for FDA-compliant applications. The bearing shell can also be upgraded to stainless steel where additional corrosion resistance or FDA compliance is required.
- Unflanged bushing part numbers are PS (inch) and PSM (metric)
- Flanged bushing part numbers are PSF (inch) and PSFM (metric).
- Optional liners: corrosive chemical-proof Frelon®J and FDA-compliant Frelon®W
- Bearing shell is upgradeable to stainless steel for FDA compliance
- Temperature Range: -400° F to 400° F (-240° C to 204° C)
- Static Load Capacities up to 31,000 lb (137 kN)
- Bushing ID sizes: 4.76 mm (0.19 in) to 76.2 mm (3 in)
