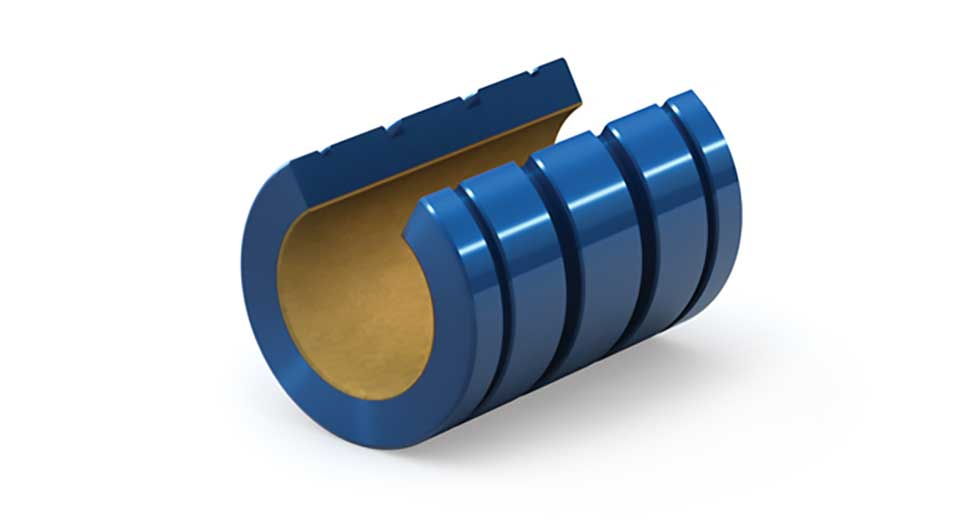

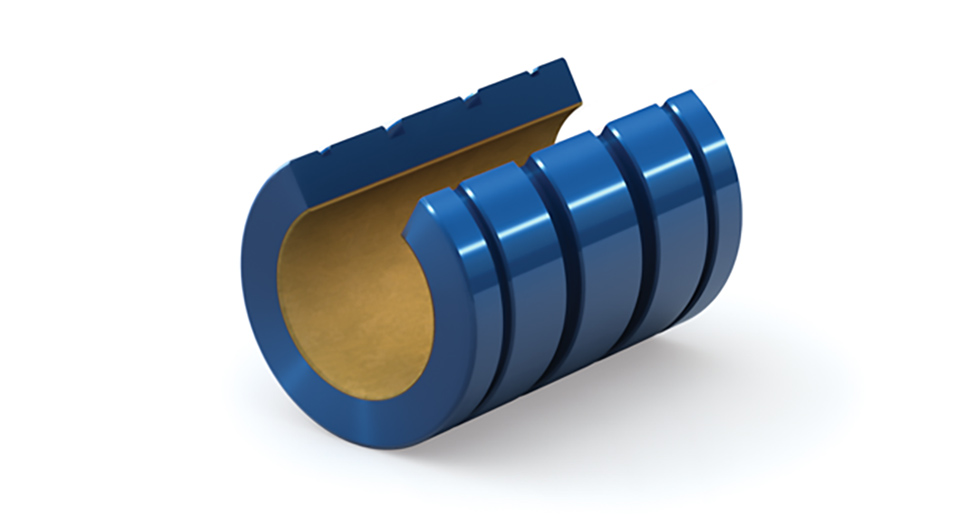

Open plain linear bearing with a 50mm ISO Metric ID (inner diameter) with a compensated running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric Series - Open Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard...
$163.00
Open plain linear bearing with a 16mm ISO Metric ID (inner diameter) with a compensated running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric Series - Open Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard...
$27.74
Open plain linear bearing with a 10mm ISO Metric ID (inner diameter) with a compensated running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Open Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates..
$21.95
Open plain linear bearing with a 12mm ISO Metric ID (inner diameter) with a compensated running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Open anodized aluminum shell Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates well in harsh..
$25.63

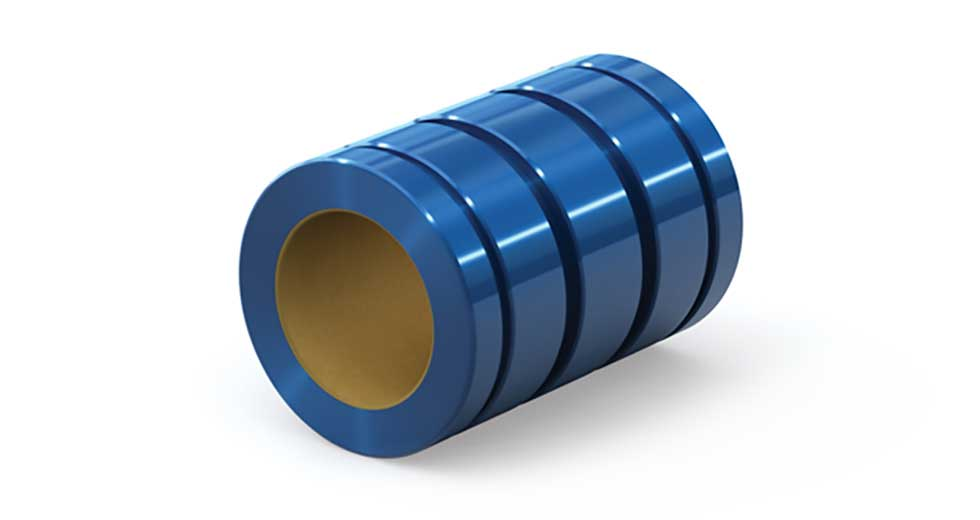

Closed plain linear bearing with a compensated 80mm ISO Metric ID (inner diameter) with a running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Closed Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates..
$353.77
Closed plain linear bearing with a compensated 60mm ISO Metric ID (inner diameter) with a running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Closed Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates..
$221.11
Closed plain linear bearing with a compensated 50mm ISO Metric ID (inner diameter) with a running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Closed Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates..
$130.84
Closed plain linear bearing with a compensated 30mm ISO Metric ID (inner diameter) with a running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Closed Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates..
$65.27
Closed plain linear bearing with a compensated 40mm ISO Metric ID (inner diameter) with a running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Closed Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates..
$74.87
Closed Compensated Plain Linear Bearing 25mm ID (inner diameter). The compensated running clearance of 0.0015" per side provides more clearance between the inner diameter and shaft allowing the bearing to perform like a linear ball bearing. Straight outer diameter. ISO Metric Closed Standard Width Self-Lubricating Bearing Liner: FrelonGOLD® is standard Optional..
$38.84
Closed plain linear bearing with a compensated 20mm ISO Metric ID (inner diameter) with a running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Closed Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates..
$21.00
Closed plain linear bearing with a compensated 16mm ISO Metric ID (inner diameter) with a running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Closed Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates..
$20.59
Crowned closed plain linear bearing with a compensated 60mm ID (inner diameter) with a running clearance of 0.0015" per side and lined with self-lubricating FrelonGOLD® for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Crowned self-aligning outer diameter. ISO Metric Series - Closed Anodized Aluminum Shell (Optional..
$291.85
Closed plain linear bearing with a compensated 10mm ISO Metric ID (inner diameter) with a running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Closed - 10mm diameter Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD®..
$17.71
Crowned closed plain linear bearing with a compensated 80mm ID (inner diameter) with a running clearance of 0.0015" per side and lined with self-lubricating FrelonGOLD® for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Crowned self-aligning outer diameter. ISO Metric Series - Closed Anodized Aluminum Shell (Optional..
$442.22
Closed plain linear bearing with a compensated 5mm ISO Metric ID (inner diameter) with a running clearance of 0.0015" per side. Self-Lubricating Bearing Liner is FrelonGOLD®. ISO Metric - Closed Anodized aluminum shell (optional stainless steel) Compensated running clearance of 0.0015" per side Self-Lubricating Bearing Liner: FrelonGOLD® is standard. Operates..
$15.98
Crowned closed plain linear bearing with a compensated 50mm ID (inner diameter) with a running clearance of 0.0015" per side and lined with self-lubricating FrelonGOLD® for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Crowned self-aligning outer diameter. ISO Metric Series - Closed Anodized Aluminum Shell (Optional..
$172.71
Crowned closed plain linear bearing with a compensated 25mm ID (inner diameter) with a running clearance of 0.0015" per side and lined with self-lubricating FrelonGOLD® for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Crowned self-aligning outer diameter. ISO Metric Series - Closed Anodized Aluminum Shell (Optional..
$48.54
Crowned plain linear bearing, closed, with a compensated 40mm ID (inner diameter) that provides a running clearance of 0.0015" per side. Lined with self-lubricating FrelonGOLD® for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Crowned self-aligning outer diameter. ISO Metric Series - Closed Anodized Aluminum Shell (Optional..
$98.84
Crowned plain linear bearing, closed, with a compensated 12mm ID (inner diameter) that provides a running clearance of 0.0015" per side. Lined with self-lubricating FrelonGOLD® for maintenance-free operation in harsh conditions like extreme temperatures, dirt and vibration. Crowned self-aligning outer diameter. ISO Metric Series - Closed Anodized Aluminum Shell (Optional..
$22.15
Plain linear bearings of the Simplicity® line feature a self-lubricating FrelonGOLD® liner for maintenance-free operation and reliable performance in harsh conditions, including extreme temperatures (-400°F to +400°F), dirt, and vibration. The bearing shells are constructed from anodized aluminum and are available in both open and closed versions, with inner diameters (IDs) ranging from 3/16” to 4” in inches, 5mm to 80mm in metric, and JIS standards. Standard ID clearance is 0.0005" per side, while compensated clearance is 0.0015" per side, supporting static loads up to 166,000 lb (740 kN). Optional seals made of nitrile, urethane, or viton are available for IDs larger than ½” or 20mm. Designed for linear rail or end-supported shafting, these bearings achieve speeds up to 8 m/s while dampening vibration for smooth, quiet operation. Interchangeable with linear ball bearings and some bronze bushings, they ensure durability across various applications.
- Linear, rotational and oscillating motions possible
- Static Load Capacities up to 166,000 lb (740 kN)
- ID sizes: 4.76 mm (0.19 in) to 101.6 mm (4 in)
- Specific sizes are 3/16” to 4” Inch Series, 5mm to 80mm Metric Series
- Choose between standard ID running clearance (0.0005" per side) and compensated ID running clearance (0.0015" per side)
- Options for standard/straight OD or self-aligning/spherical OD to prevent binding
- Optional liners include corrosive chemical resistant Frelon® J or FDA compliant Frelon® W
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- Maximum Speed: Up to 8 m/s (315 in/s);
- Shaft Lengths: Up to 12 feet
- Shell Material: Standard is anodized aluminum; stainless steel shells optional
- Self-Lubricating: Provides oil-free operation
- Seal Options: Nitrile rubber, urethane, and viton seals available from ½” ID and up or 20mm and up
- Mounting Options: O-ring and retaining ring grooves for multiple mounting options
- External Lubrication: Optional feature for added lubrication
- Vibration Damping: Ensures smooth and quiet operation
- Designed for use with end-supported shafting
- Interchangeable with linear ball bearings and some bronze bushings
