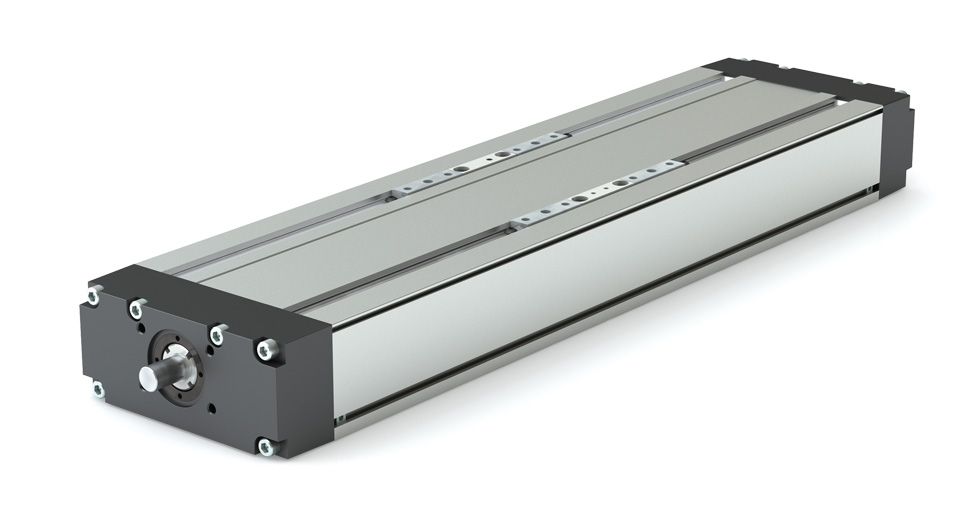

Ball Screw Linear Actuator - MUK65-0700-2005-1-RA-0 - Length: 700mm Profile Rail Carriage
Ball Screw Linear Actuator of 700 mm length with two 20 mm recirculating ball profile rail guideways for compact, high-rigidity linear motion. This MUK actuator uses a 20 mm diameter ball screw with a 5 mm lead, Class 7 travel accuracy rated at 52 µm/300 mm, and a profile rail carriage to deliver smooth, repeatable positioning. It has a 65 mm rail width, 145 mm height, and compact aluminum profile with T-slots for easy sensor mounting. This model includes one carriage, with dual carriage configurations available for added stability and moment load support, and supports maximum loads up to 8,500 N (1,910 lb).
- Ball screw driven with profile rail carriage
- Screw diameter: 20mm
- Length: 700mm
- 05 ball screw pitch
- Two 20 mm recirculating ball profile rail guideways
- Lead: 5mm
- Rail width: 65mm
- One Carriage (dual carriage optional)
- Max Load: 8500N (1910 lbs)
- Class 7 (52 µm/300 mm ) travel accuracy ball screw
- Compact aluminum profile incorporates t-slots for easy sensor mounting
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | MUK65-0700-2005-1-RA-0.step | STEP AP214 | Download |
