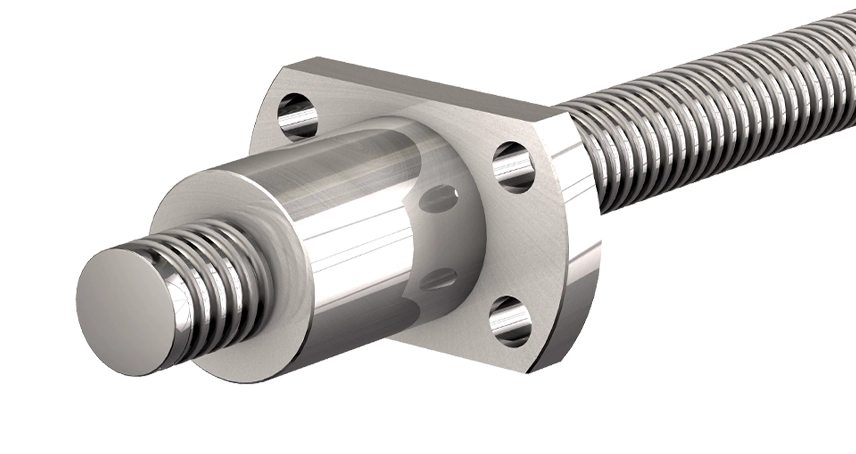

Ground Ball Screw BSR1002AP3G-0150-FLS-NND-NNN-N Flanged Nut, 10mm Dia. x 2mm Lead, Length: 150mm
Ground Ball Screw 150mm long, 10mm diameter, 2mm lead is made using a flanged nut mounted on the left end and ground to a Grade 3 accuracy for tighter lead tolerance in high-precision positioning applications. Choose a ground ball screw for applications requiring high positioning accuracy, minimal backlash, and smooth, repeatable linear motion to exactly fit your application needs.
- Length: 150mm
- Diameter: 10mm
- Lead: 2mm
- Nut Style: Flanged Nut
- Accuracy Grade: Grade 3
- Dynamic Load Rating (Ca): 1455 N
- Static Load Rating (C0a): 3275 N
